H172203_1_001 67 / 234

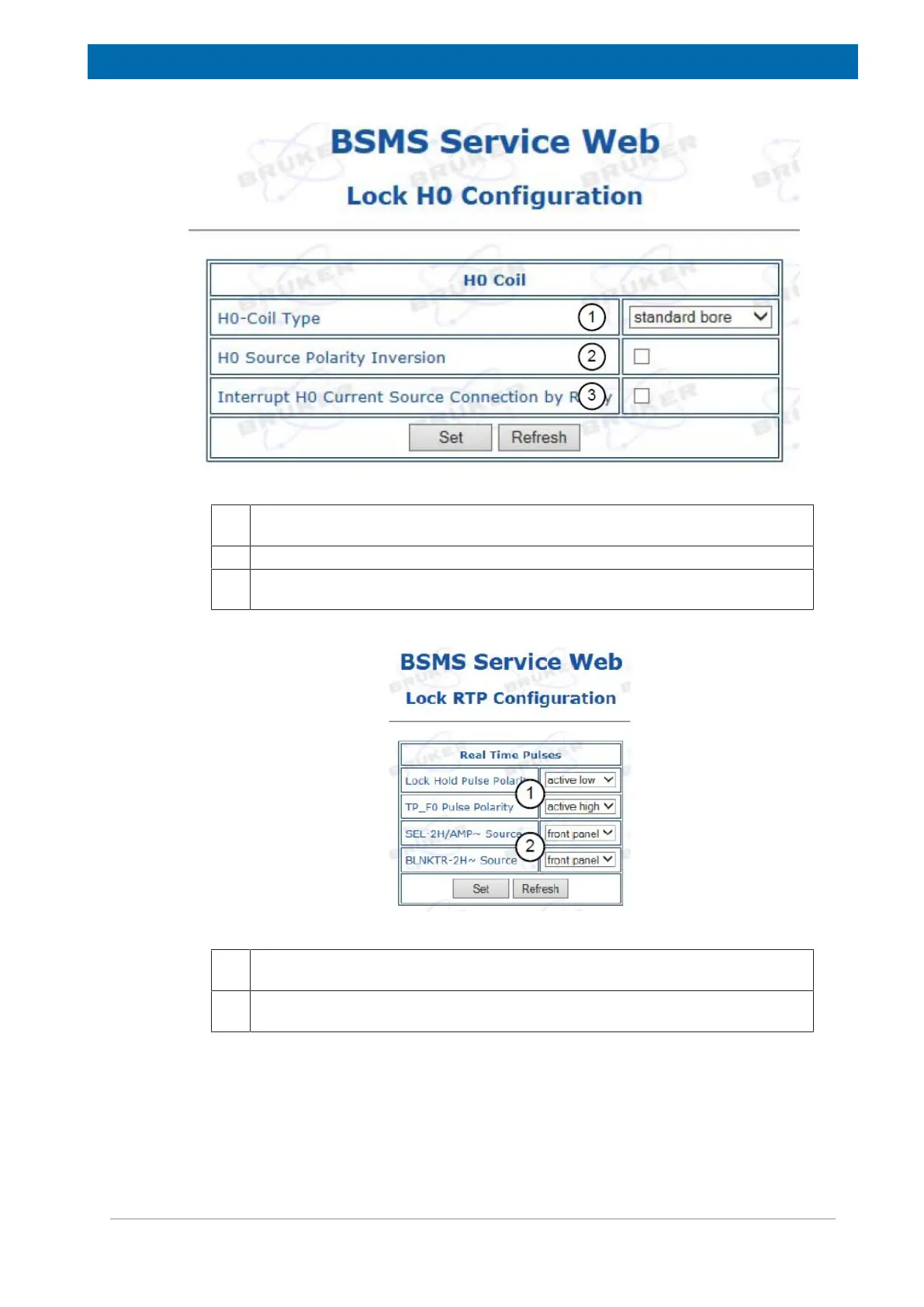

Figure8.10: Configuration of NMR H0 Coil and H0 Current Source
1 The H0 coil type defined in the BOSS file is displayed here. It cannot be modified
manually.
2 Polarity of the H0 current can be inverted for Magnets with reversed polarity.
3 For service purposes, the connection between the H0 current source and the H0
coil can be interrupted by means of opening a relay contact.
Figure8.11: Configuration of Lock Real Time Pulses
1 Select the polarity of the RTP‘s. For Bruker standard systems, no change is
necessary.
2 In most systems, the RTP‘s are wired to the L-TRX front panel. In some
NanoBay type cabinets, the pulses are available on the backplane.
