BSVT Introduction & Configurations
H172203_1_001 127 / 234
12.8.1 HR RT Probes (Thermocouple Type T)

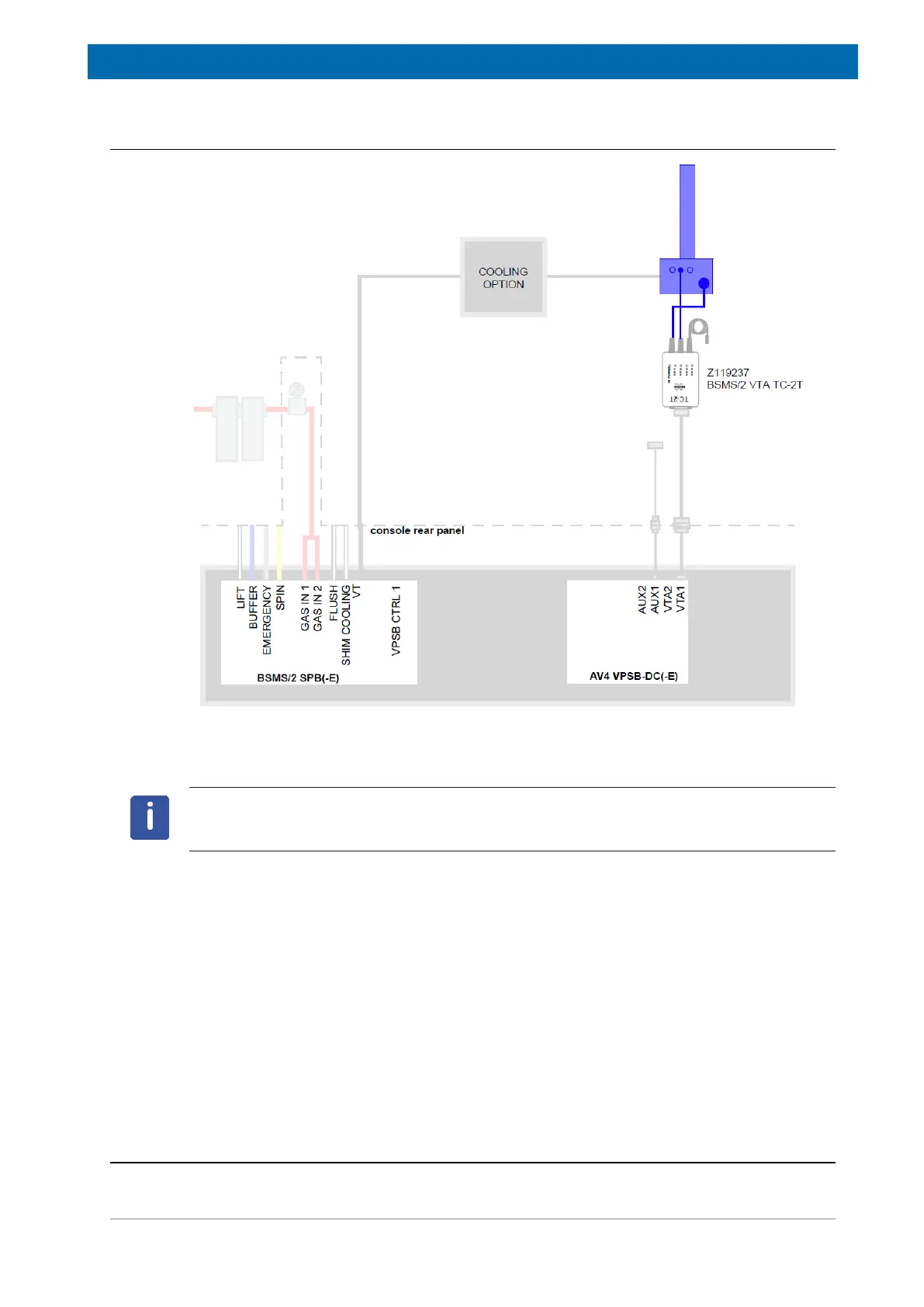

Figure12.5: Standard HR RT Probe with Thermocouple T
RT probes are typically operated with a VTA TC-2T. One of the sensor cables is not
connected. It does not matter which sensor cable is connected as the connected sensor is
recognized automatically.
3
3
RT probes can also be operated with single Z116922 VTA TC-T. This variant is obsolete.
