4.4.2 Main Service Page

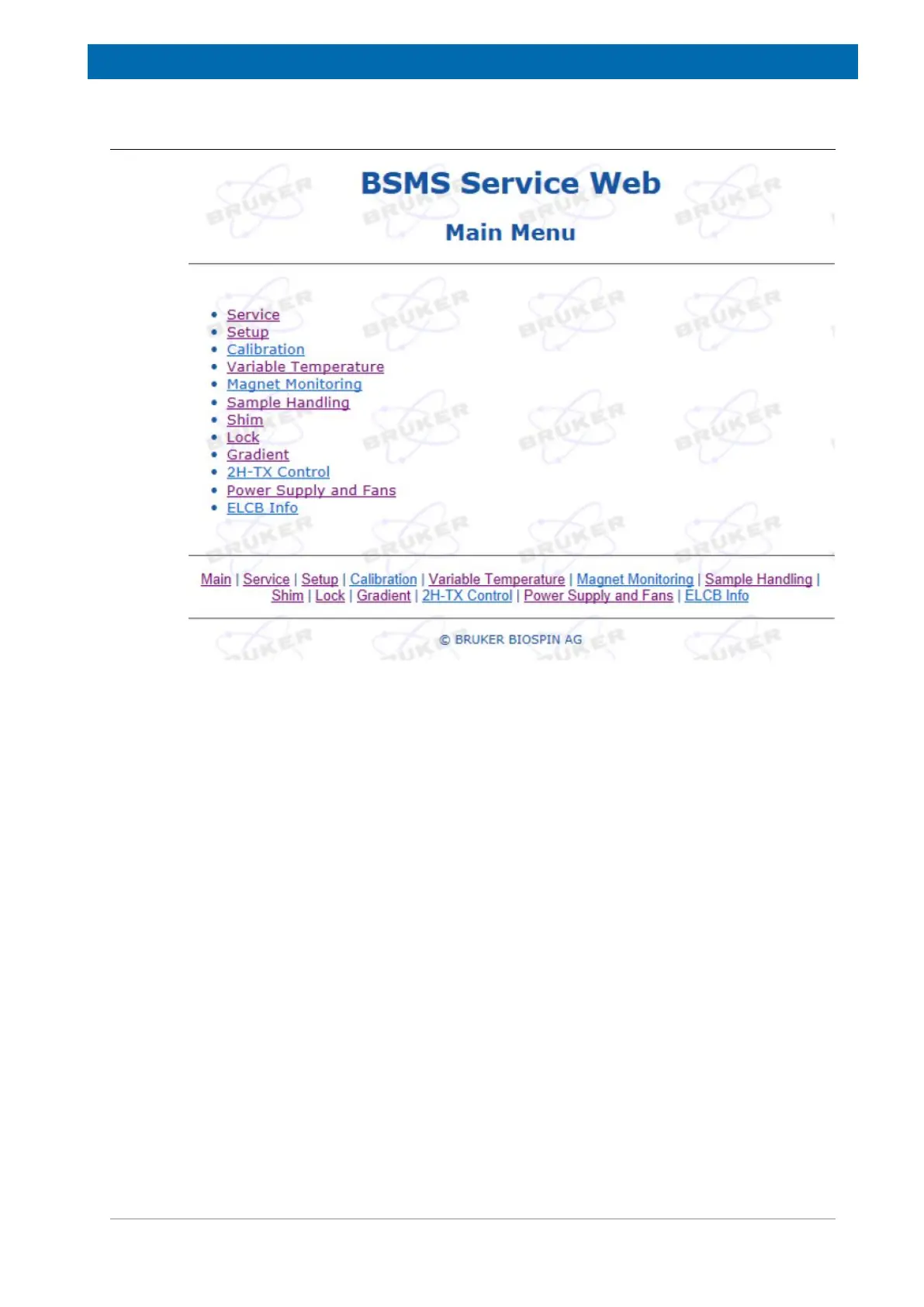

Figure4.7: BSMS Main Service Page
• Service Page: Access to the logging information and configuration of the logging. A
service engineer can log in on this page (in order to get access to the extended functions/
parameters).
• Device Setup: Shows the hardware configuration (connected subsystems, hardware
codes), the versions of the actually loaded firmware and the required firmware versions.
This page provides also the links to the specific firmware download pages (see later on).
• Calibration: Links to the different specific calibration routines that are necessary upon
installation of a spectrometer (e. g. for helium level measurement, air pressure for lift, and
so on).
• Variable temperature control (if SPB / -E is installed): Information, activation and
configuration (setting of aimed temperatures, temperature and power limits, aimed VT gas
flow, regulation settings, and so on).
• Magnet Monitoring: Monitoring of cryo levels in the magnet. The N2 level monitoring
requires an AV4 VPSB-DC or SPB-E.
• Sample Handling: Commands and configuration of sample lift, sample rotation and
SampleCase (extended sample transport - related hardware needs to be installed for this
feature).
• Shim: Commands and configuration of Shim system (e. g. download of BOSS file) and
diagnostic functions for trouble shooting.
