10.3 Configurations
The AV4 BSMS Chassis supports up to three AV4 GAB/2, installed in Slot 1 to Slot 7. If more
than one GAB/2 is present, then two PSM-48V Power Supplies are required.

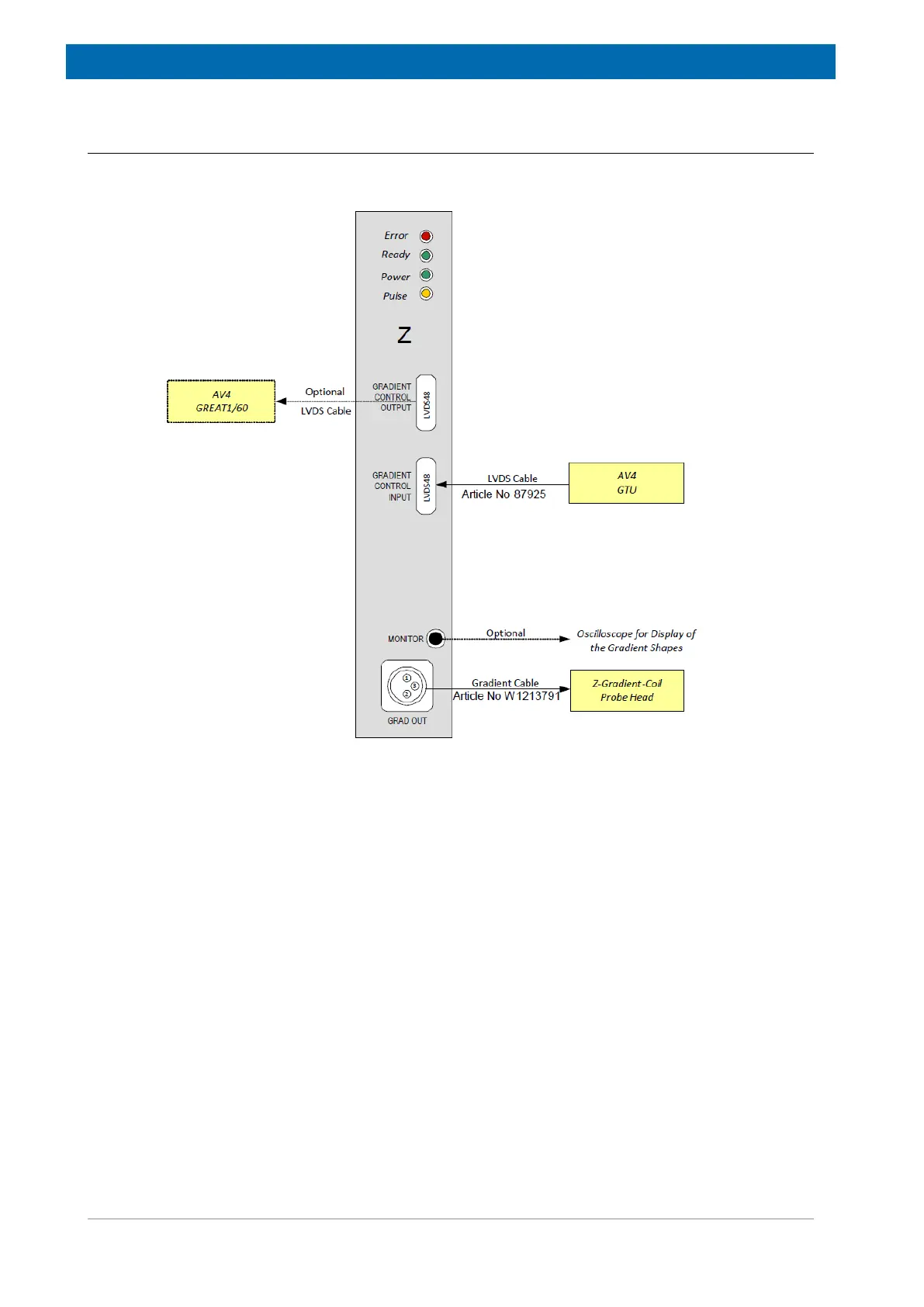

Figure10.1: Single AV4 GAB/2 in an AVANCE NEO Spectrometer
The previous generation of integrated gradient amplifiers, the BSMS/2 GAB/2, is compatible
to the AV4 BSMS CHASSIS, but does not support the LVDS daisy chain feature.
