L-TRX/L-19F
104 / 234 H172203_1_001
11.4 Front Panel - Connectors and LED‘s
11.4.1 BSMS/2 Lock Transceiver

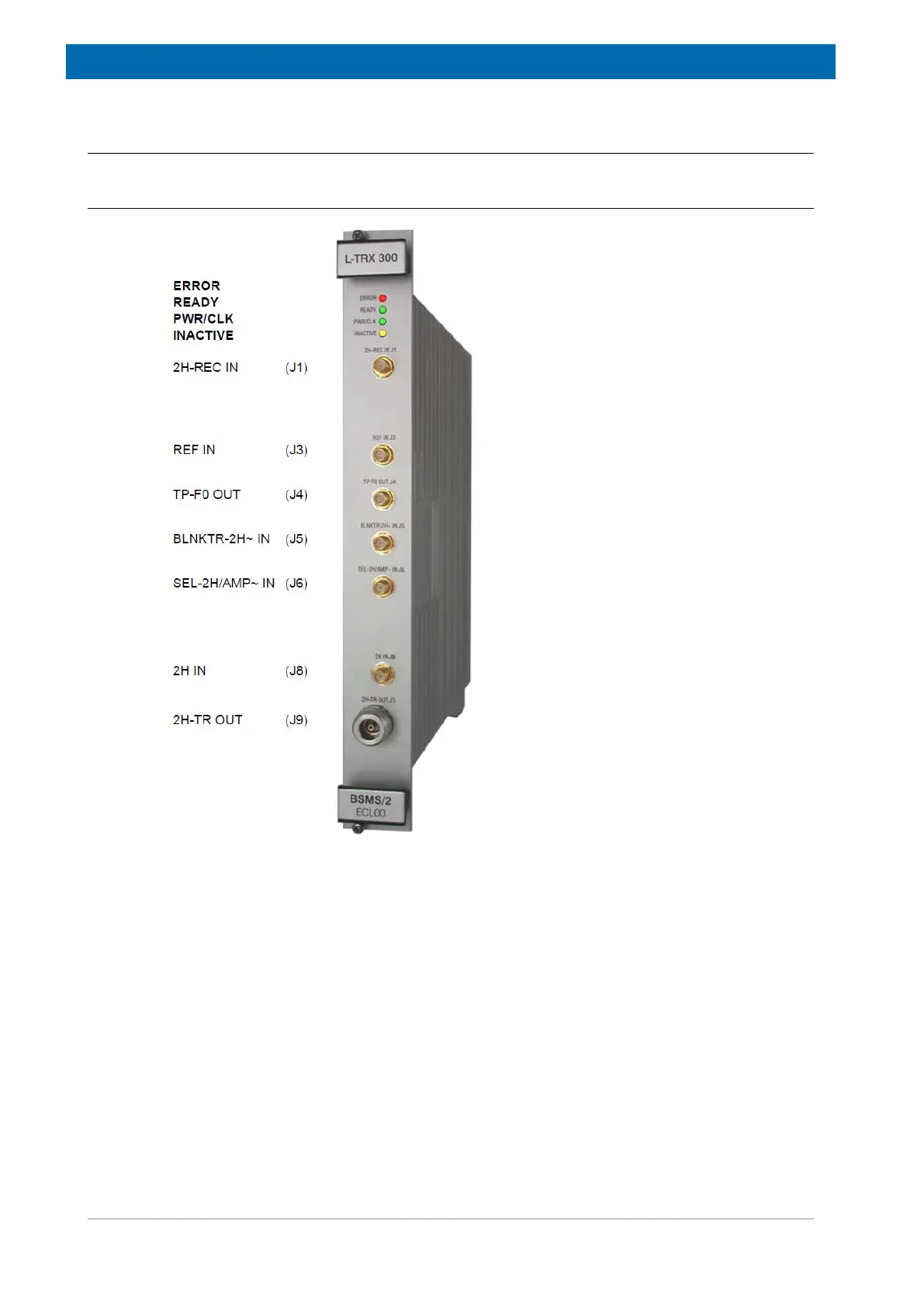

Figure11.9: View BSMS/2 Lock Transmitter 300
LED ERROR (red):
All errors detected by the L-TRX are displayed with the ERROR LED. In addition interrupt
requests activate the LED for at least 250 ms. If the ELCB does not process the interrupt
immediately, the LED stays active. In diagnostic mode the LED beats with approx. 2 Hz.
During the Error state only a minimal set of diagnostic functions is available.
LED READY (green):
The READY LED is active if the L-TRX is successfully initialized and ready for ELCB
commands. If the LED stays dark, the L-TRX FPGA initialization has failed. If an error is
detected, the LED is deactivated. In addition any communication deactivates the LED for at
least 250 ms.
