BSVT Introduction & Configurations

138 / 234 H172203_1_001

12.12 BSVT and Flow Probe Adaptation (FLOW-NMR)

For Flow-NMR there exist several variants. The following configurations shows typical

applications.

Flow Probe with HT Heated Probe Capillary

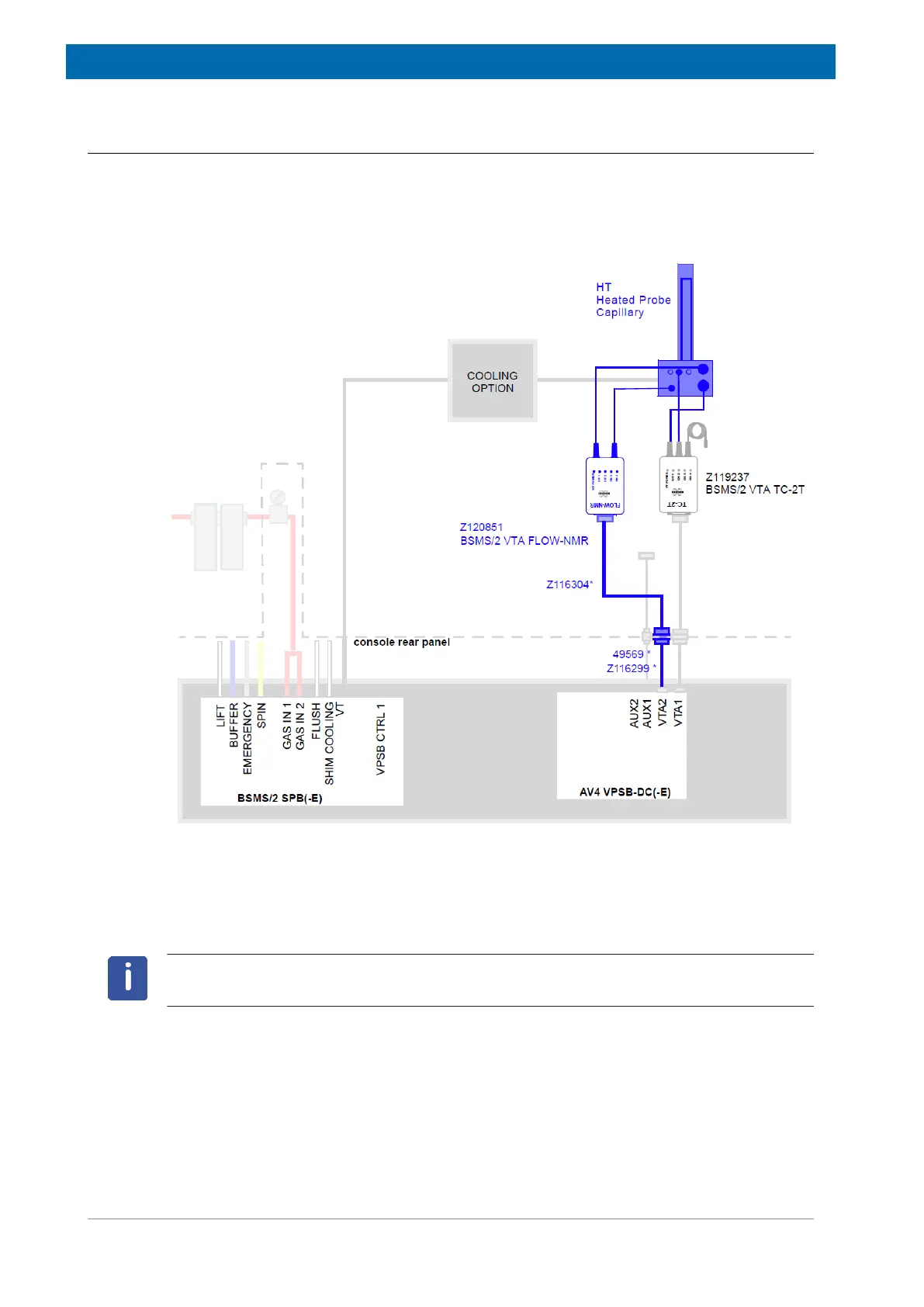

Figure12.16: Flow Probe with HT Heated Probe Capillary

* Part of Z119854 CABLE SET BSVT AUXILIARY HEATER

Flow Probes with BTO2000 require a Z116924 BSMS/2 VTA BTO.
