An additional VPSB-DC would provide two extra heater channels, e. g. for connecting
accessory heaters such as the heater for SampleCase cooled, and two additional auxiliary
channels, e. g. for connecting a LN2 level measurement device.
Note: Empty slots must be covered with blind plates.

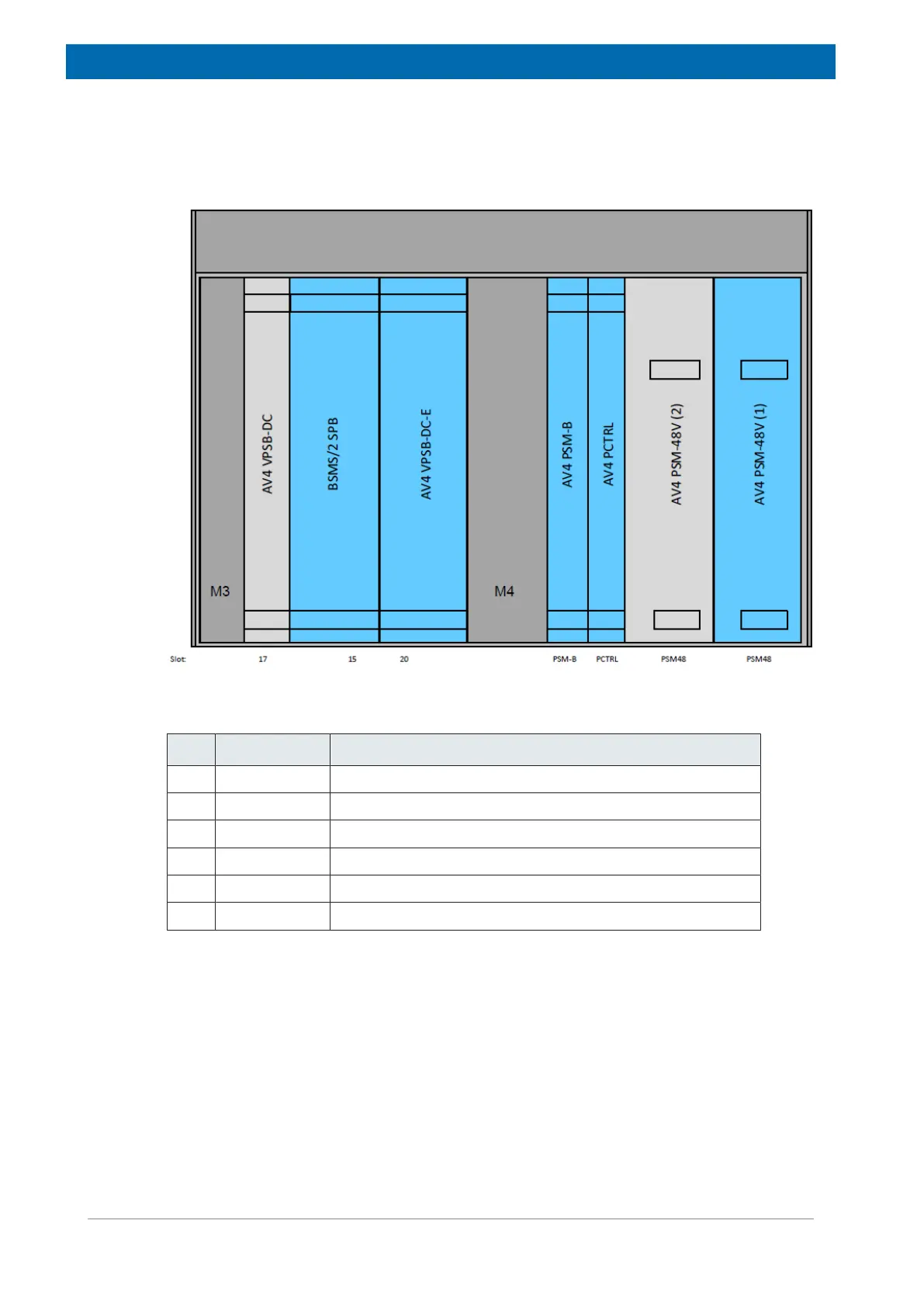

Figure4.5: WB Configuration with SPB-E, VPSB-DC-E and Power Supply (rear side)
Pos Part Number Description
M1 Z13644 FRONTPLATTE BLIND 2TE
M2 Z2778 FRONTPLATTE BLIND 4TE
M3 Z12489 FRONTPLATTE BLIND 6TE
M4 Z12170 FRONTPLATTE BLIND 12TE
Z12153 SCREW RRCH KR M2,5 x 8,5
25958 SCREW RRCH KR M2,5 x 12,3
Table4.1: Part Numbers of Blind Plates and Screws
