VPSB-DC and VPSB-DC-E
168 / 234 H172203_1_001

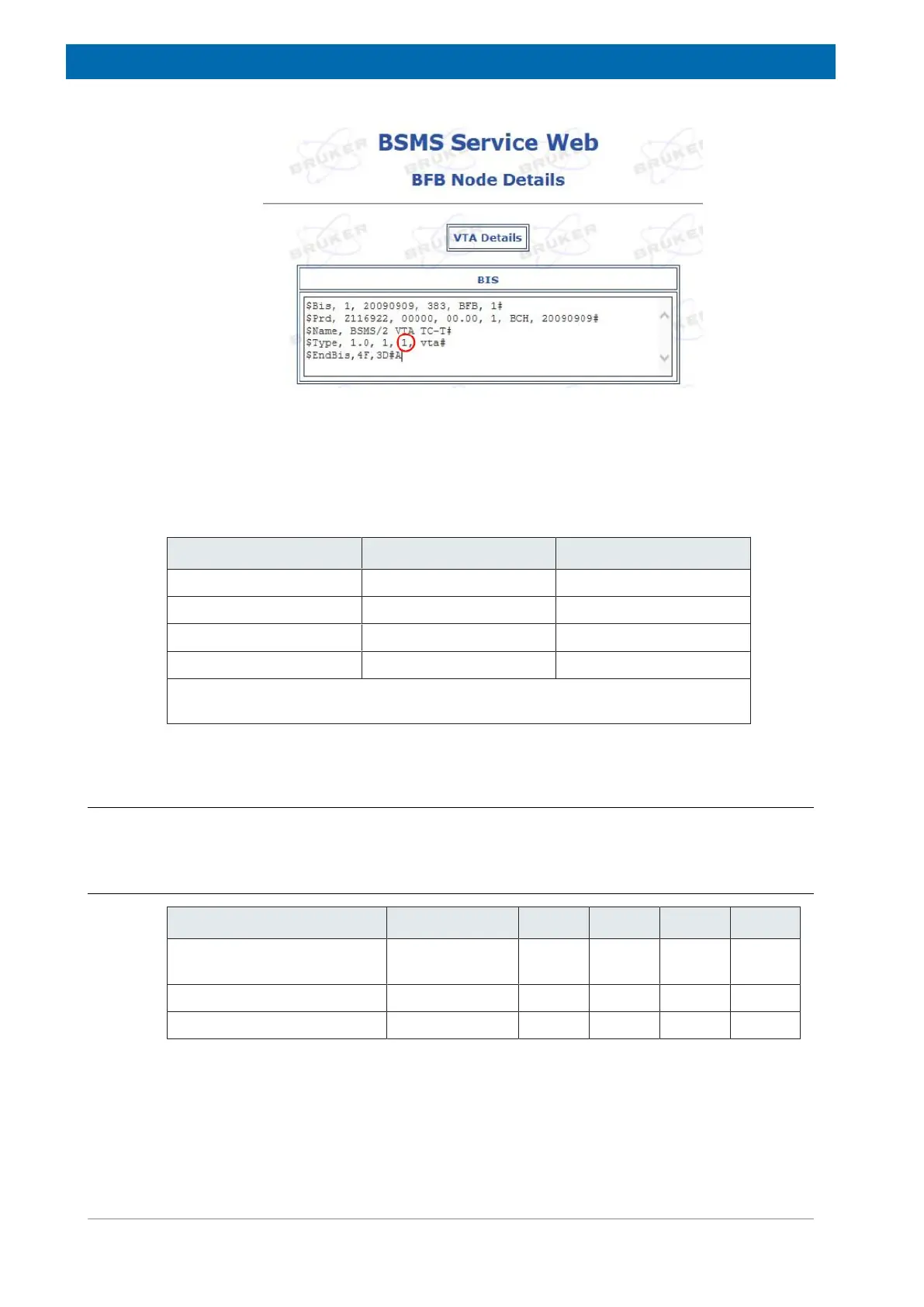

Figure15.1: VT Adapter Device Revision 1 Necessary for VPSB-DC-E booster Support.
If more than two temperature regulation channels are needed, it is possible to have up to two
VPSB-DC(-E) in one AV4 BSMS rack.
Only one single VPSB-DC(-E) is supported if the rack contains one PSM-48V. For all other
configurations, a second PSM-48V is required. See also Power Supply Requirements [}33].
#VPSB-DC #VPSB-DC-E Required #PSM-48V
1 - 1
- 1 1 or 2
a
1 1 2
2 - 2
a
Two power supplies are only required if more than 250 W heater power are
requested on channel 1 of the VPSB-DC-E
Table15.1: Possible VPSB-DC(-E) Configurations and Number of PSM-48V Required
15.3 Technical Data
15.3.1 Technical Data, Environment and Norms
Parameter Min Type Max Unit
Ambient operating
temperature
15 45 °C
Safety EN 61010-1
Protection degree IP20
Table15.2: VPSB-DC and VPSB-DC-E, technical data
