Nitrogen Level Sensor
H172203_1_001 197 / 234
17.2.4 Calibration
Factory calibration is stored on the board (no field calibration necessary).
17.2.5 Connectors and LED‘s

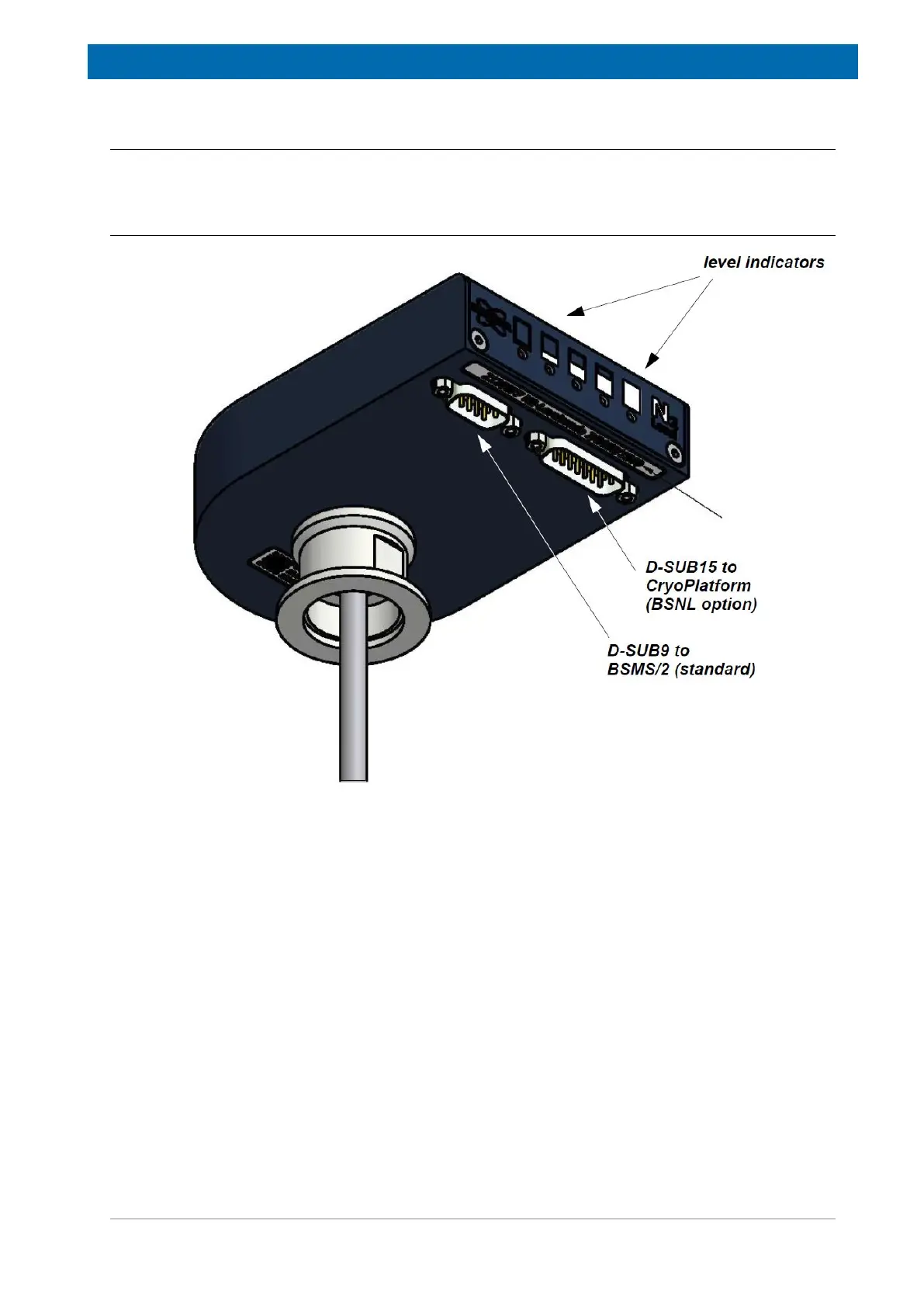

Figure17.2: Nitrogen Level Sensor
LED‘s
Like the VT adapters the LN2 sensor can be connected or disconnected at any time.
In general, the:
• Green LED‘s indicates the current nitrogen level.
• Red LED indicate an error or low nitrogen level.
