Nitrogen Level Sensor

198 / 234 H172203_1_001

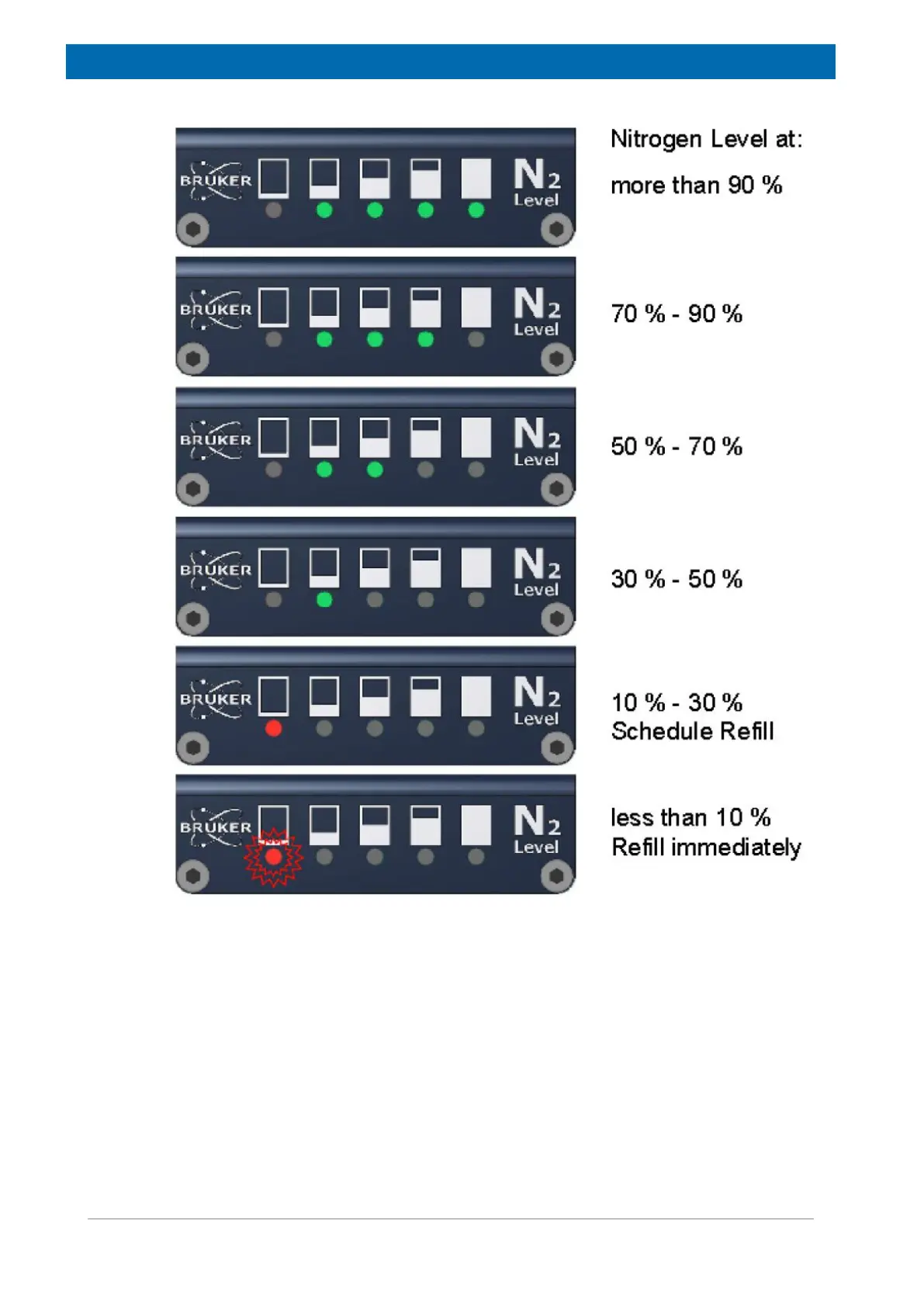

Figure17.3: LED Code on N2 Level Sensor

Interface

The N2 level sensor is connected to the BSMS BSVT electronics (back panel RJ45 connector

labeled NITROGEN LEVEL) and to the CryoPlatform if a BSNL option is installed (Bruker

Smart Nitrogen Liquefier). These units provide the necessary power supply and data

interface signals.
