7 Power Supply Modules
7.1 System Overview

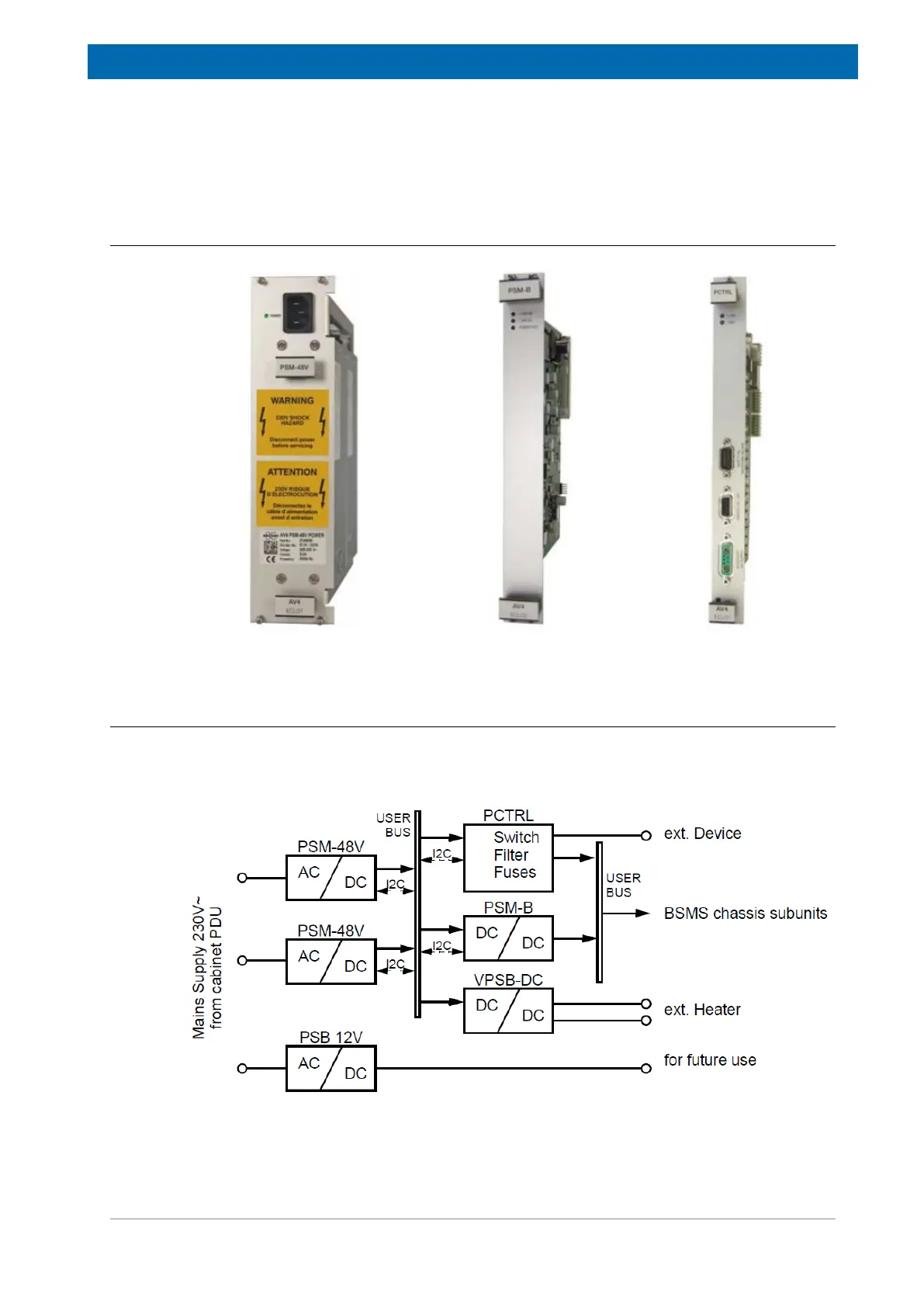

Figure7.1: BSMS Power Supply Modules Overview
7.2 System Description
The basic power supply system of the AV4 BSMS Chassis consists of one or two AC/DC and
one DC/DC power supply modules (PSM). Depending on the configuration one auxiliary PSB
may be used.
Figure7.2: Power Supply System
