Bruker NMR BSMS System - Table 14.4: Pin Assignment VPSB CTRL (Master Interface)

SPB
158 / 234 H172203_1_001

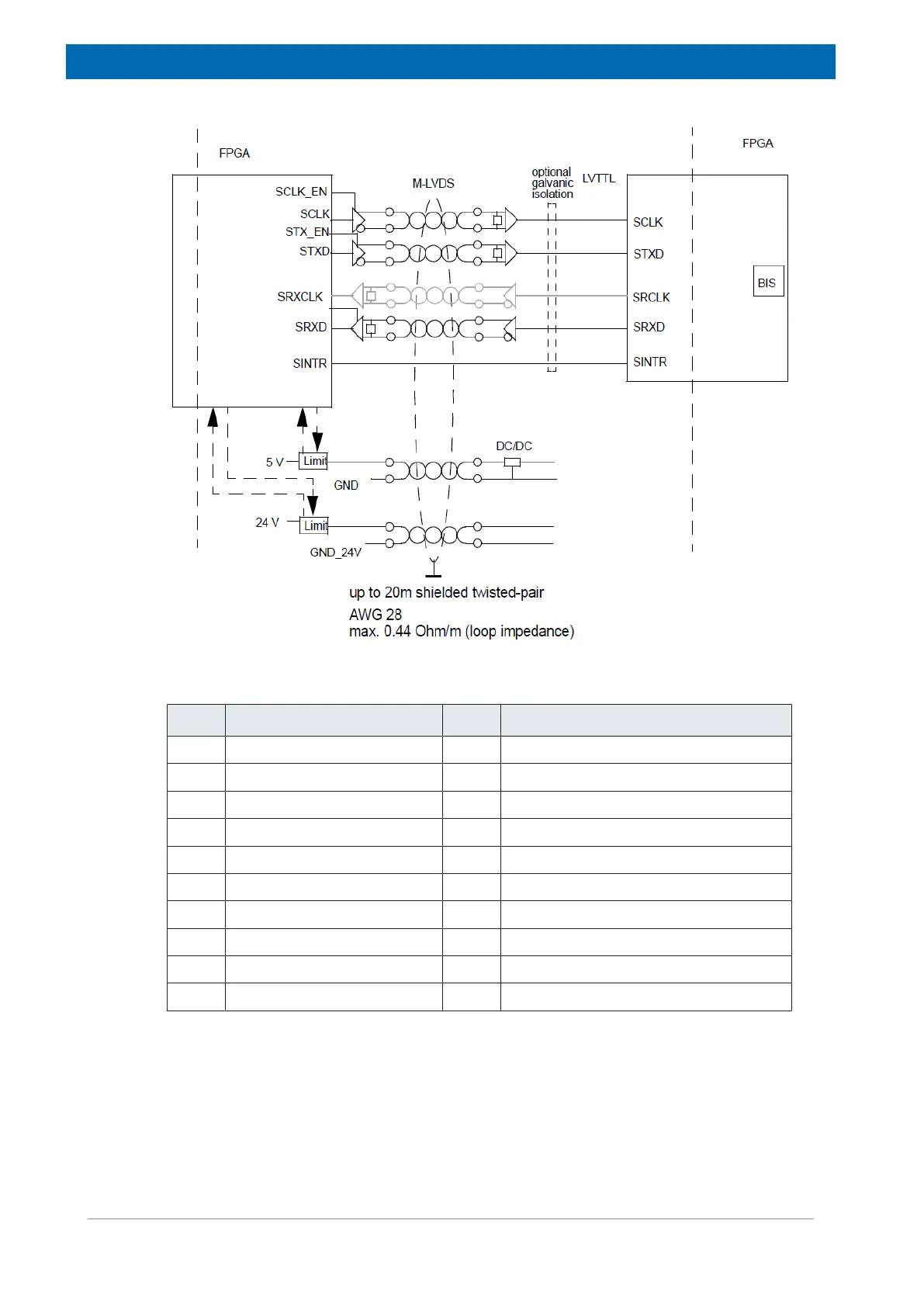

Figure14.5: Overview of Point-to-Point Full Duplex VPSB CTRL Interface
Pin Signal Pin Signal
1 GND_24V 11 +24V
2 GND_24V 11 +24V
3 GND_5V 13 FLOW_VT_GAS_ON_N
4 GND_5V 14 FLOW_VT_GAS_REQ_N
5 LVDS_SRX_P 15 LVDS_SRX_N
6 LVDS_STX_N 16 LVDS_STX_P
7 LVDS_SRXCLK_P 17 LVDS_SRXCLK_N
8 LVDS_SCLK_N 18 LVDS_SCLK_P
9 RES0 19 SINTR_N
10 GND_5V 20 +5V
Table14.4: Pin Assignment VPSB CTRL (master interface)
