Depressing the link Save Shims shows the complete Shim settings. It is possible to store
these settings into a file. However, it is recommended to use the TopShim command wsh for
saving the Shim settings for later use by the TopSpin application in order to guarantee
compatibility.
9.5.4 Part Numbers
Bruker Part No. Description
Z102930 BSMS/2 SCB20 SHIM CURRENT BOARD
Table9.2: Part Numbers: SCB20
9.5.5 Diagnostic and Troubleshooting
The following diagram shows the specific Service Web page for the shim function. There is a
separate Web page for each SCB20 board, indicating the hardware status and the
configuration. Several operations are reserved for service engineers and need the login
procedure with a correct password.

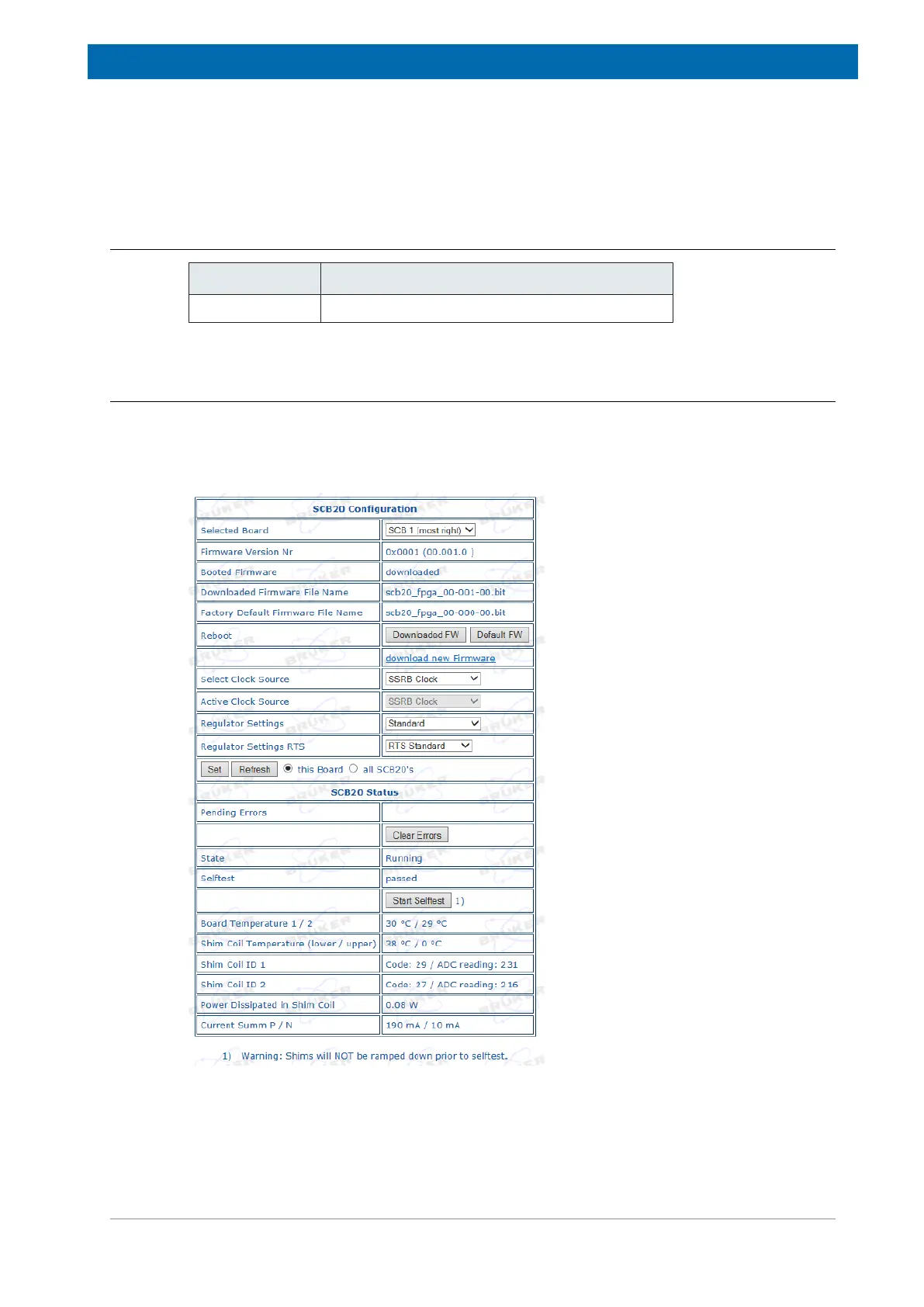

Figure9.7: SCB20 Service Web page
