Radiation Shield Temperature Monitoring (MAG-RS)
H172203_1_001 201 / 234
18 Radiation Shield Temperature
Monitoring (MAG-RS)
18.1 Introduction
For RS (refrigerated radiation shield) type of magnet systems the temperature of the
refrigerated radiation shield inside the cryostat must be monitored during operation.
For that two PT 100 temperature sensors are mounted inside the cryostat. The temperature
measurement is realized using a digital adapter that can be connected to the BSMS like other
accessory (e.g. Nitrogen Level Sensor or BSMS/2 VTA).
In case of a failure the operator will receive an alarm by MICS.
18.2 Configurations and Installation
Bruker Part
Number
Name Marking Typical usage
[Power or Auxiliary]
a
Z122502 BSMS/2 VTA MAG-RS MAG-RS POWER
a
POWER means that this application needs heater power and therefore must be
connected through a cable that contains heater power wires to an output of the
VARIABLE POWER SUPPLY BOARD (VPSB(-DC))
Table18.1: Available Unit
Necessary cable set: Z119854 CABLE SET BSVT AUXILIARY HEATER
18.2.1 Connection to the Console (BSMS/2 with BSVT)

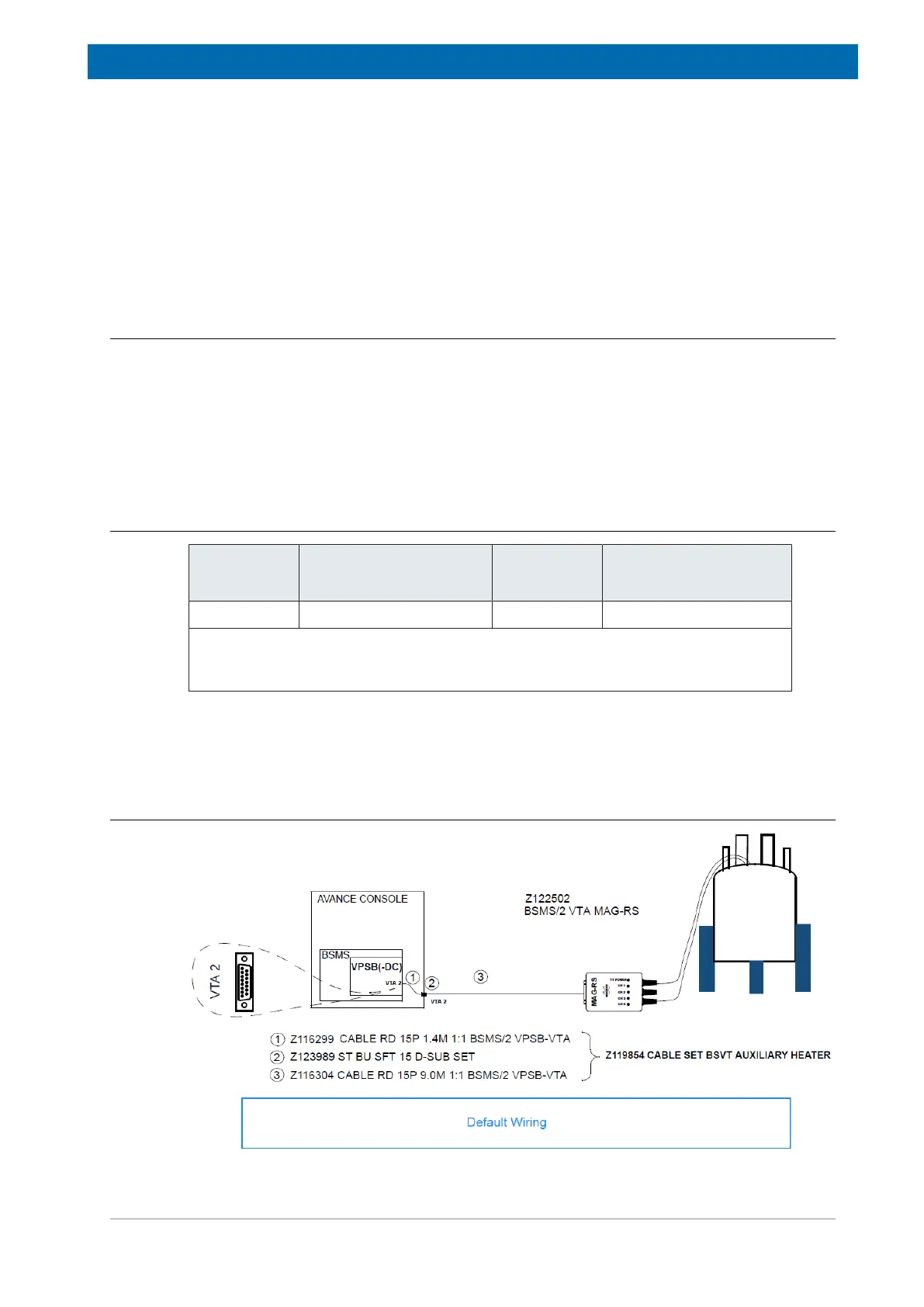

Figure18.1: Connection to BSMS (Monitoring and Service)
