Bruker NMR BSMS System - Table 10.2: Gradient Channel Assignment

GAB/2
H172203_1_001 85 / 234

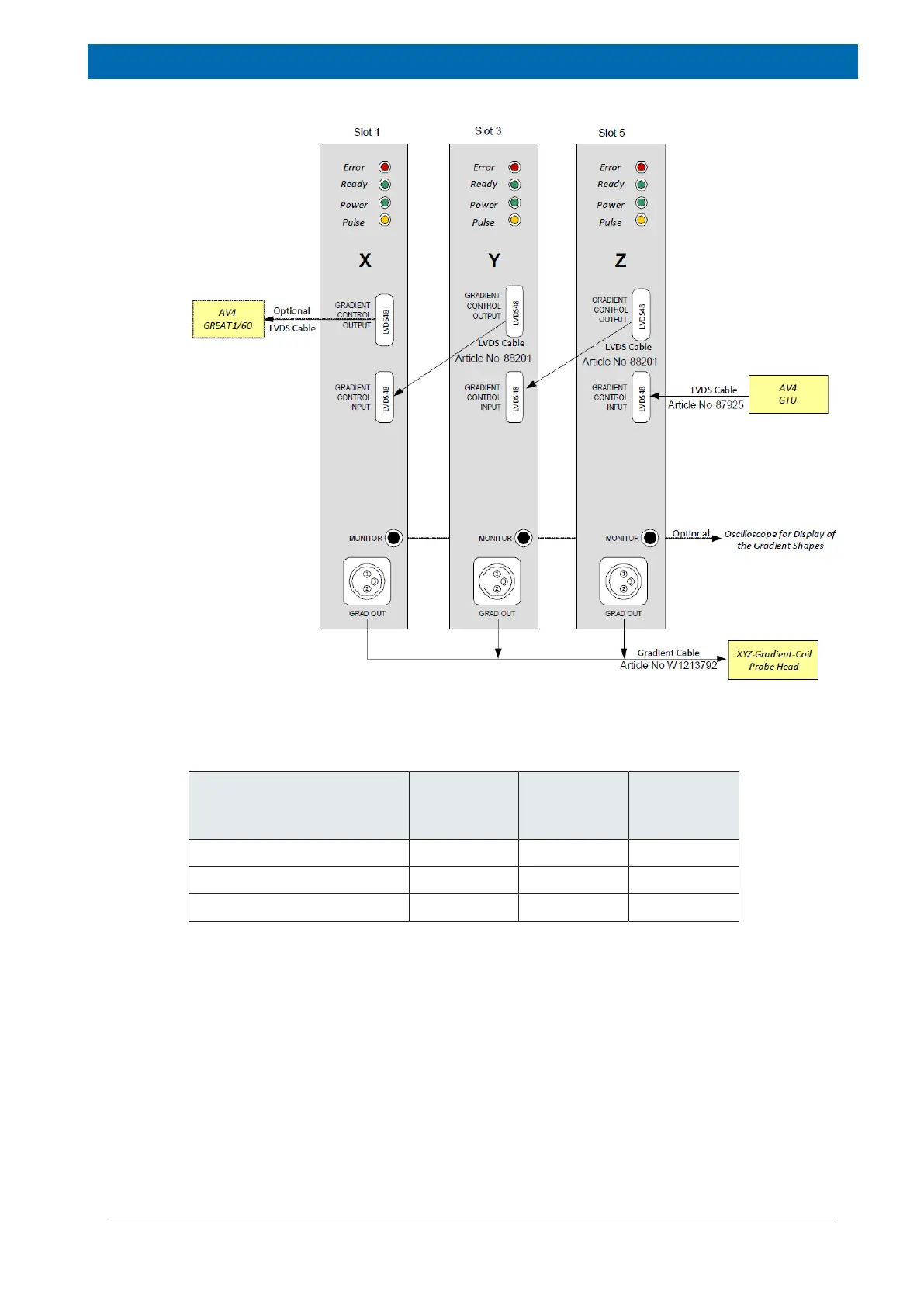

Figure10.2: 3-Channel AV4 GAB/2 in an AVANCE NEO Spectrometer
The gradient channels are assigned as follows:
No. of Installed GAB/2‘s Left
Position
Middle
Position
Rightmost
or Single
Position
1 Z
2 Y Z
3 X Y Z
Table10.2: Gradient channel assignment
