Sample Lift Calibration
Depending on the cryostat bore size and height and the NMR spinner type a different amount
of gas is necessary for lifting the sample. The setup of the lift parameters is described on the
according Service Web page in detail.
Helium Level Sensor Calibration
Contact your local Bruker office.
Nitrogen Level Sensor Calibration
The digital Nitrogen Level Sensor [} 195] is factory calibrated. Former analog sensors may
need to be calibrated. Contact your local Bruker office.
14.4.4 Front Panel - Connectors and LED‘s

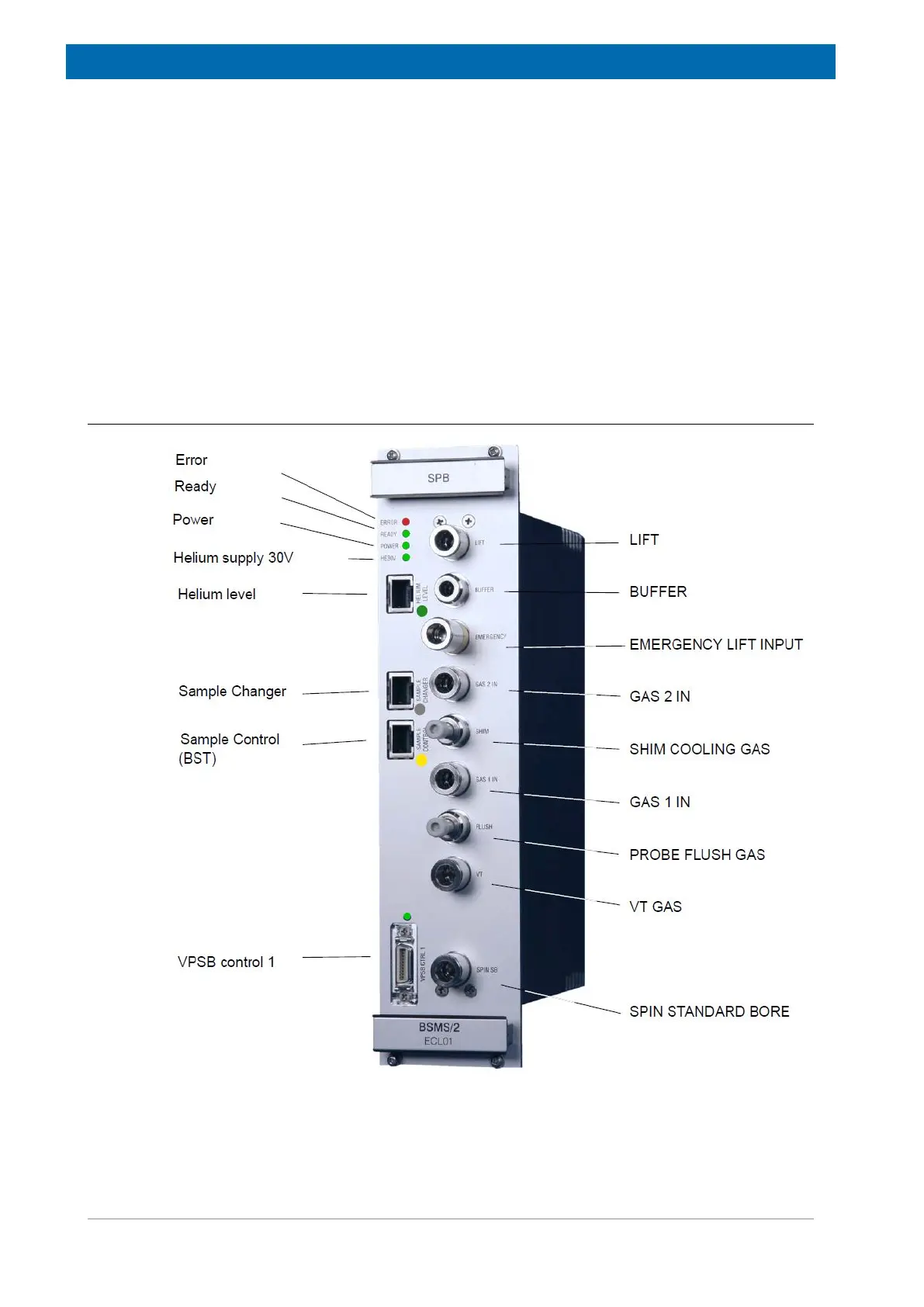

Figure14.3: Front View of a SPB
