Bruker NMR BSMS System - Protection Features for MAG-RS

Radiation Shield Temperature Monitoring (MAG-RS)
202 / 234 H172203_1_001

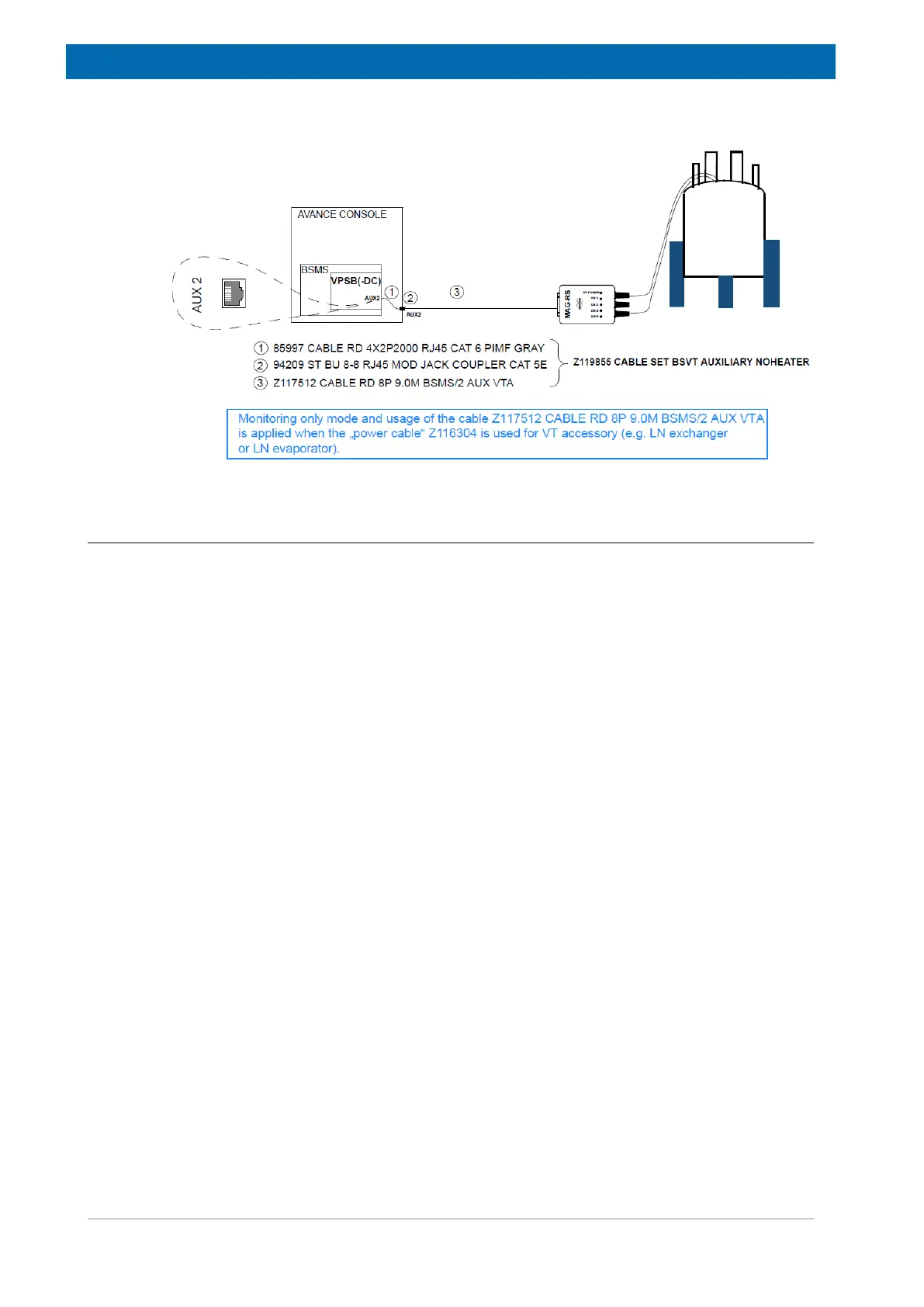

Figure18.2: Connection to BSMS (Monitoring only)
18.2.2 Protection
All external interfaces are protected against short circuits (either by limiting the output current
or by current monitoring and shut down).
