Fan Tray
44 / 234 H172203_1_001
6.2.2 Technical Data
Technical
Number of fans 6
Fan supply voltage 12 Vdc
Mechanical
Length 47.0 cm
Width – 19 inch 48.3 cm
Height 1 HU 4.5 cm
Weight 2.5 kg
6.3 Troubleshooting
The Fan Tray can be replaced as a whole (FRU).
If an FRU needs to be replaced, contact your Bruker Service Representative.

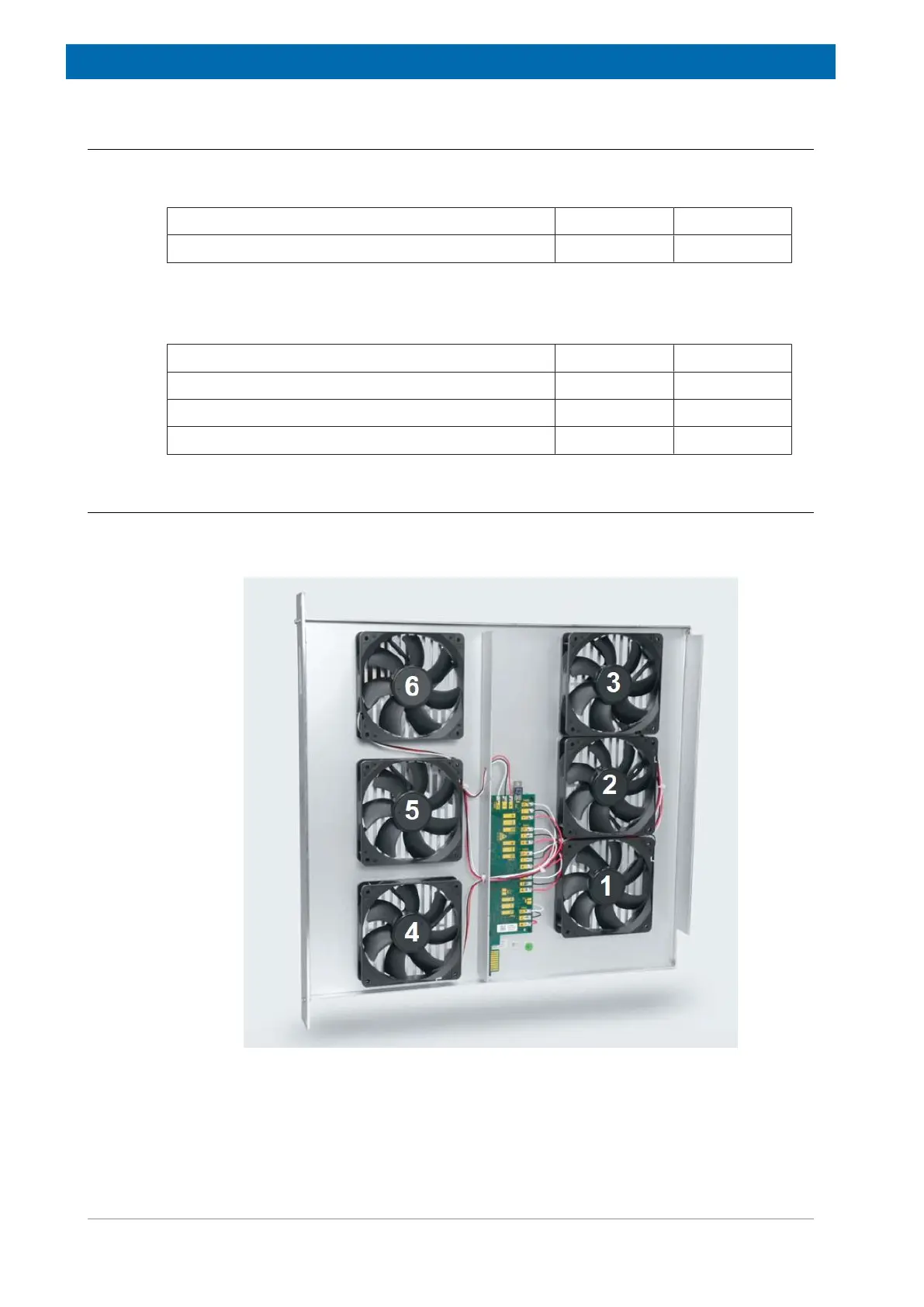

Figure6.2: Fan Tray Fan Numbering for Troubleshooting
Detected failures are reported with event messages. Event messages are displayed on the
TopSpin screen and can be viewed on the Service Web pages.
