11.4.2 BSMS/2 19F Lock Transceiver

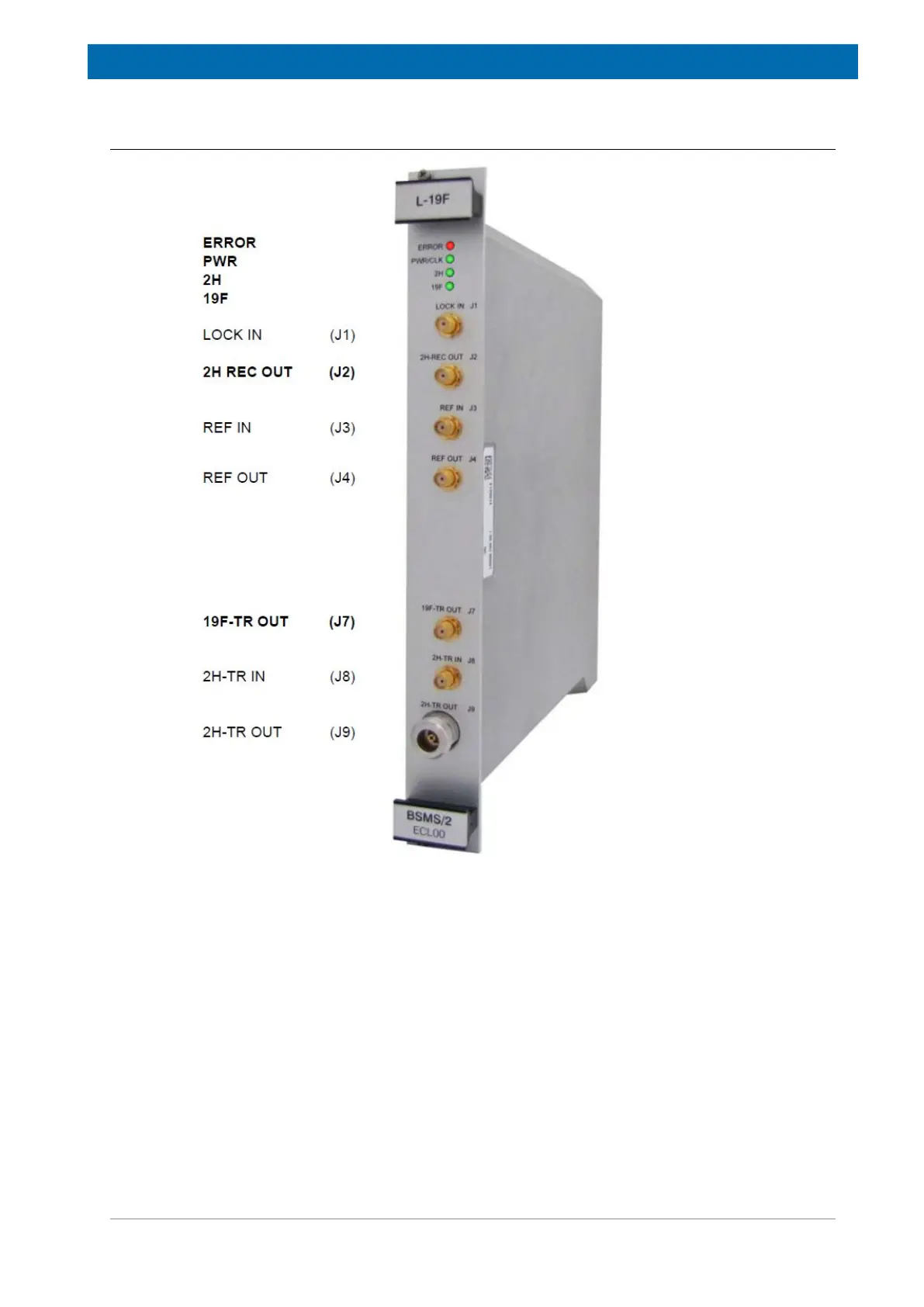

Figure11.10: View BSMS/2 19F Lock Transceiver

LED ERROR (red):

All errors detected by the L-19F unit are displayed with the ERROR LED.

LED PWR (green):

In case of a power supply failure the PWR LED is deactivated. The L-19F unit enters the

ERROR state.

LED 2H (green):

If the L-TRX & L-19F units are configured to lock on a deuterated solvent, the 2H LED is

activated. The deuterium signal is bypassed by the L-19F unit.
