Bruker NMR BSMS System User Manual

BSVT Concept
H172203_1_001 145 / 234

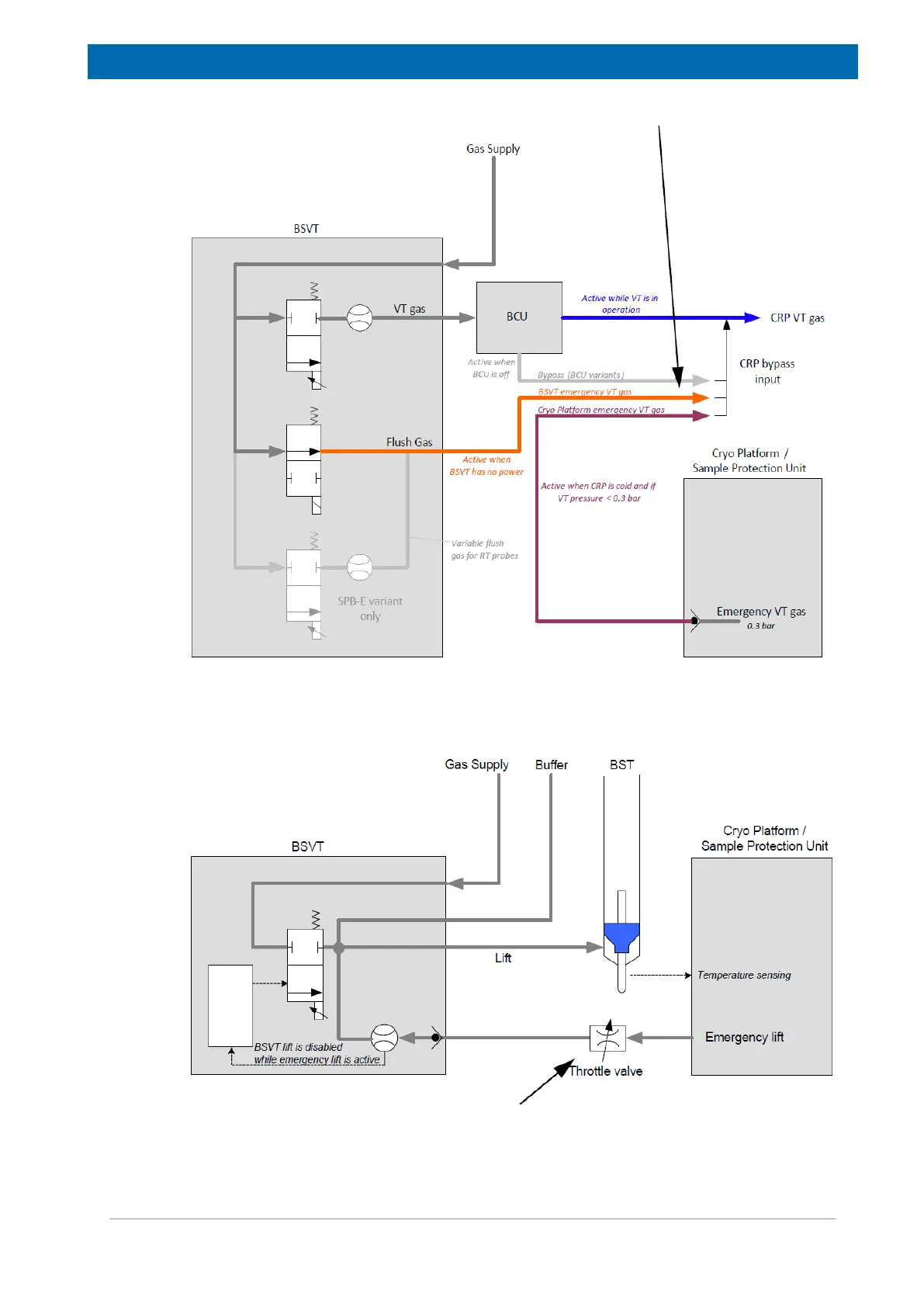

Figure13.2: VT Emergency Gas Flow
If a CRP Sample Safety Option is installed then the Cryo Platform initiates a sample ejection
in case of insufficient temperature. This operation is detected by the BSVT, and in case of
safety lift initiated by the Cryo Platform, the BSVT disables its own lift function.
Figure13.3: Gas Flow Diagram for Emergency Lift
For configuration/part details, see CryoProbes [}129].
