Installation and Initial Commissioning
H172203_1_001 207 / 234

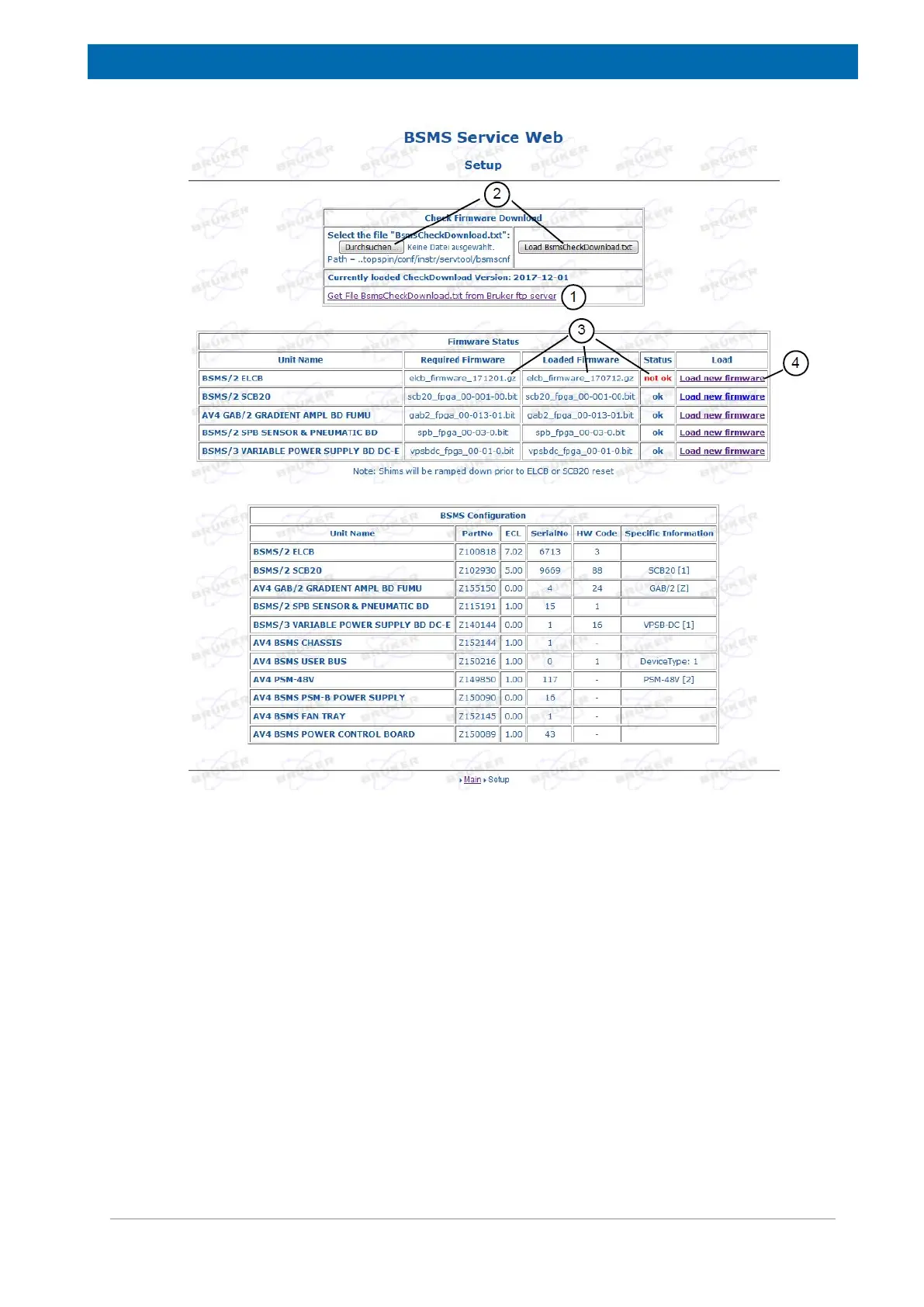

Figure19.2: Setup of the BSMS Firmware
In addition to the firmware information, there is also the hardware configuration displayed on
the Setup screen: In our example, it is a configuration with one SCB20 providing maximum
20 shims (BOSS1), GAB/2, SPB and VPSB-DC installed. All Units, including chassis and
power aupplies, provide BIS information, including Serial Number and ECL.
