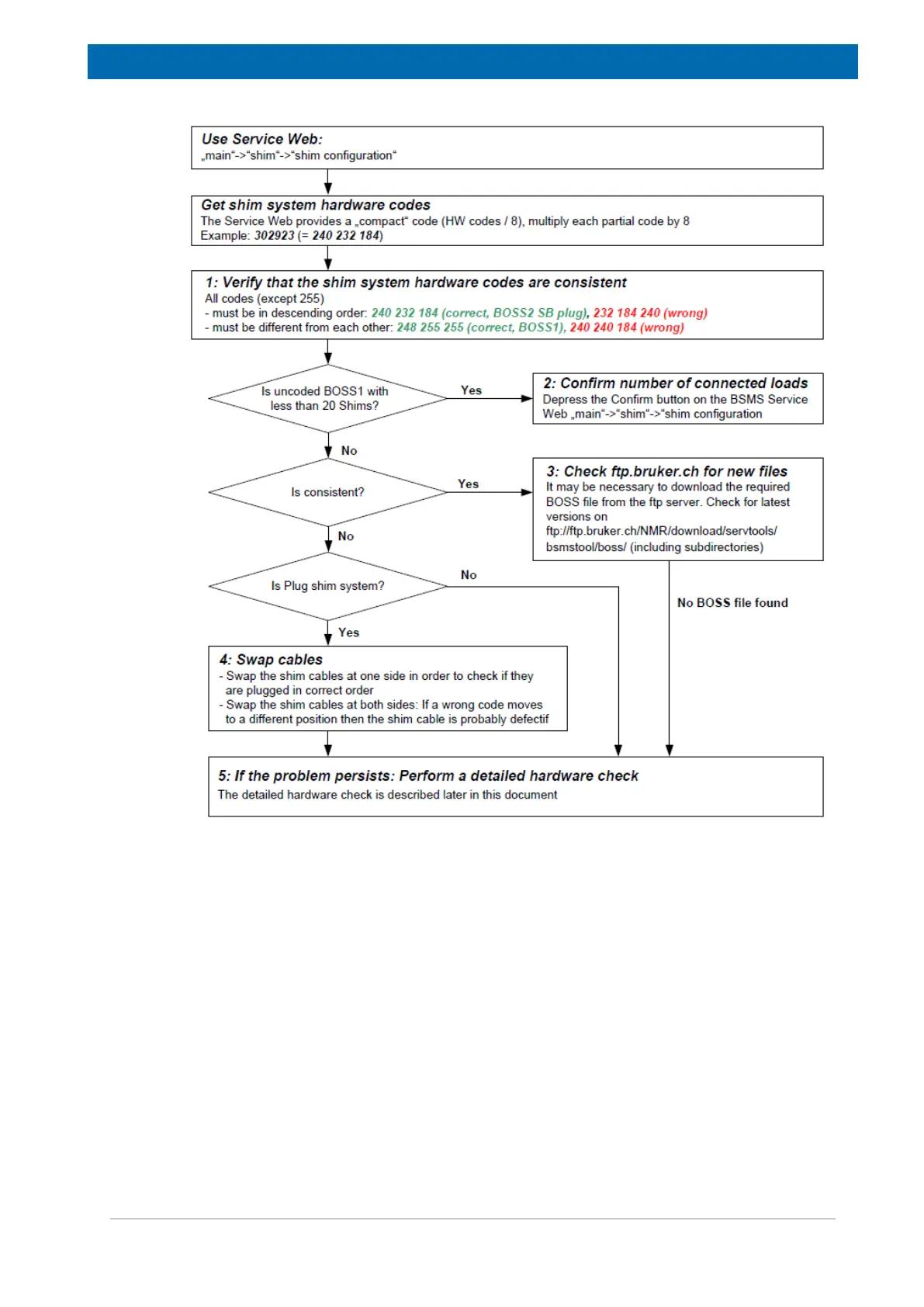

Figure9.9: Troubleshooting Problems with Shim System and BOSS File
1. Verify that the Shim System Hardware Codes are Consistent
The compact Shim System code provided by ELCB based systems must be extended by
multiplying each part by 8 in order to get the actual hardware codes, according to the
following examples:
• „302928“ -> 240, 232, 224 (BOSS2-SB NON US)
• „302923“ -> 240, 232, 184 (BOSS2-SB PLUG)
• ...
Note1: In case of a connected BOSS1 Shim System, the ELCB Service Web indicates
explicitly BOSS1 as connected Shim System type and does not provide the corresponding
hardware codes. In this case, there is no need to download a BOSS file – the predefined
BOSS1 definitions are used.
For non-BOSS1 systems, verify the following points:
