Technical Specifications
4
ekr CON 100 – Installation and Operating Manual
29/130
USB interface (socket X105)
Transfer rate
12MBit/s, slave only,
no master function
Connection
Mini B socket
*
The network connection is currently not supported.
4.1.9
Display
LCD graphics module
Size
63mmx35mm
Resolution
128 x 64 pixels
Illumination
LED background lighting
4.1.10
Weight and Dimensions
Controller
Weight
approx. 0.55kg
Dimensions (details in mm)

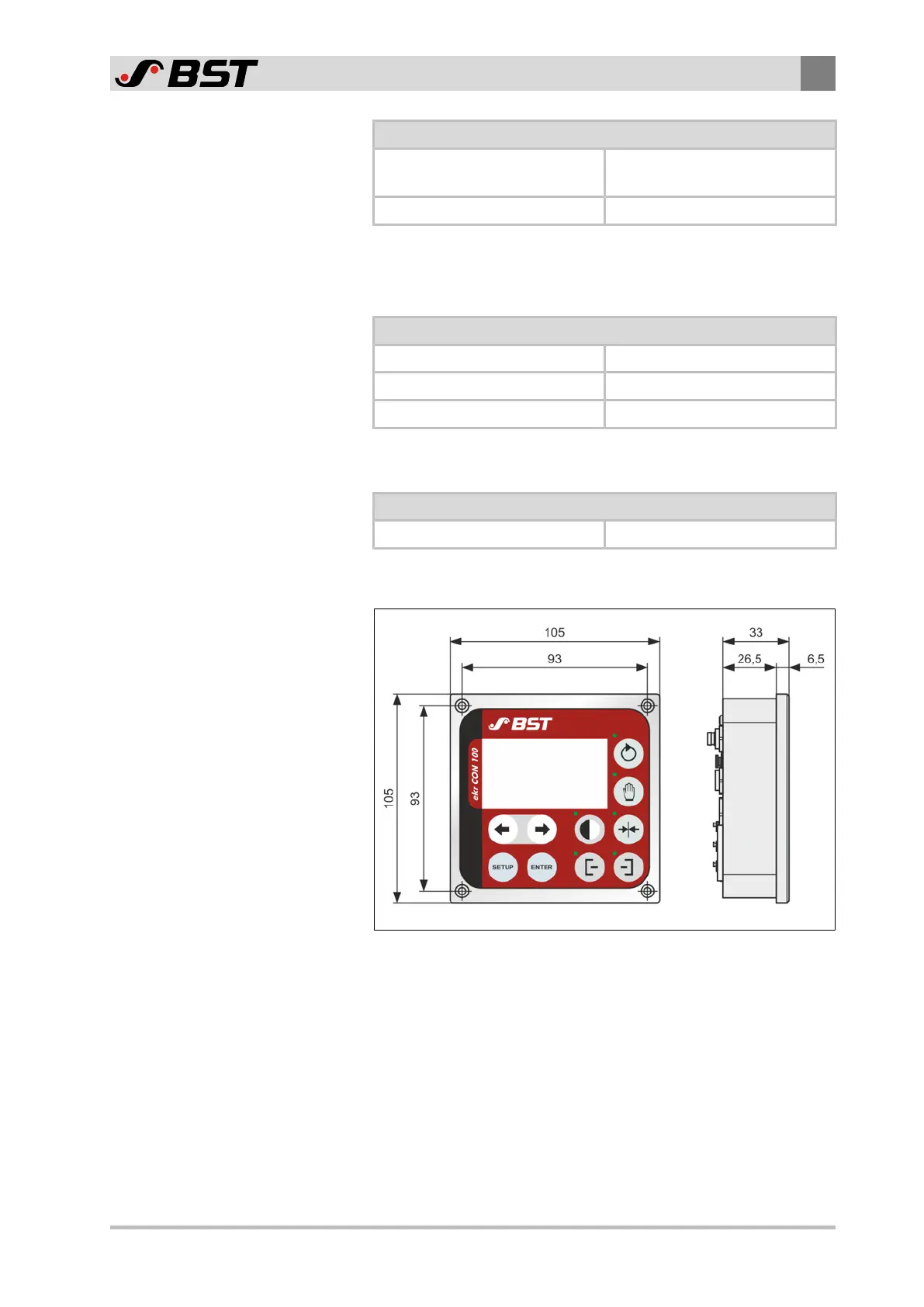

Fig.7: Controller dimensions
28
30
