Electrical Connection
56/130
ekr CON 100 – Installation and Operating Manual
7.7.4
X3 - Servo center transducer

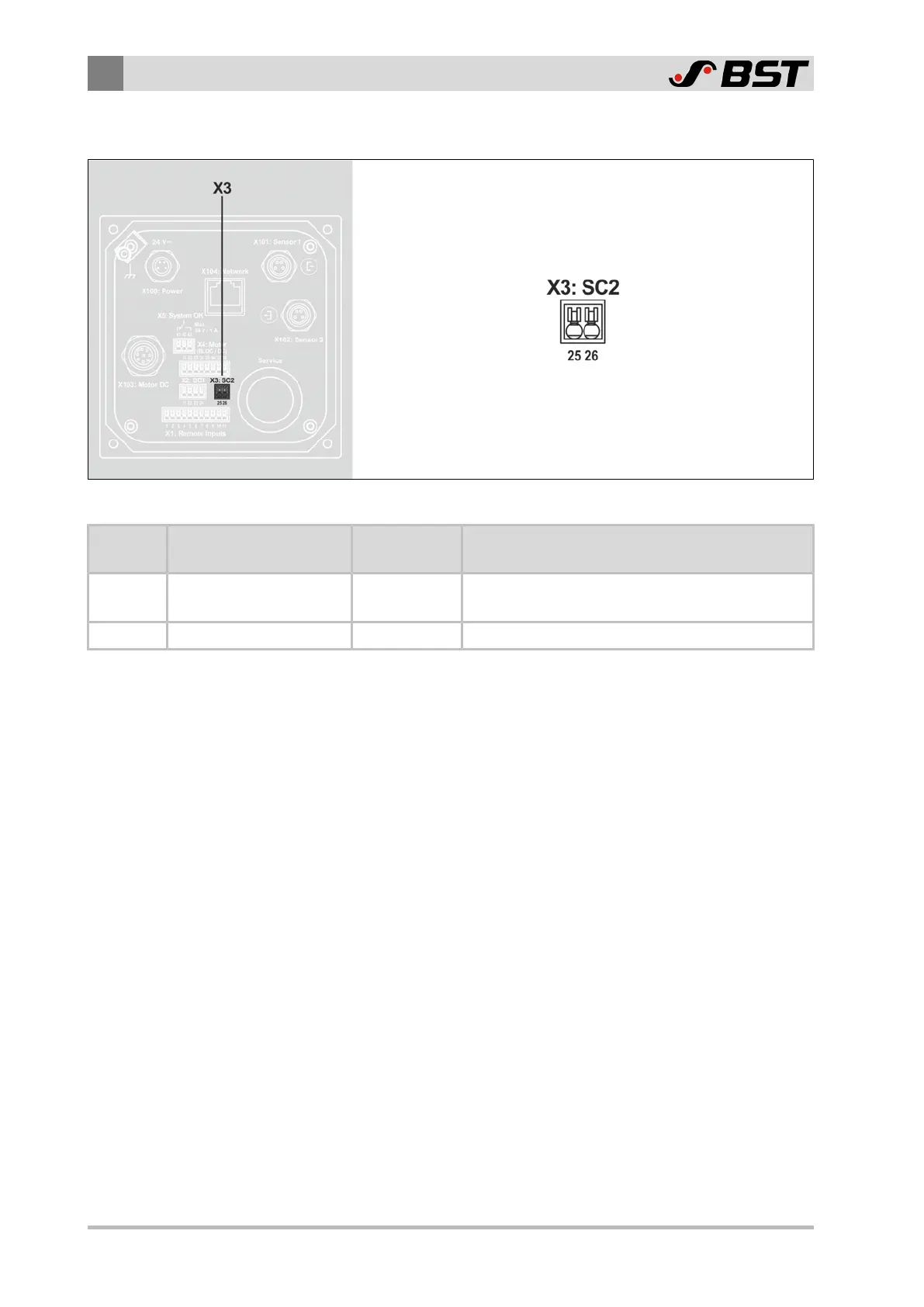

Fig.22: Terminal strip X3
X3
Terminal
Function
Wire color
Note
25
+12V
⎓
brown
Power supply +12V
⎓
for
OMG8
,
CK37
(Namur A)
26
Namur
blue
Input
OMG8
,
CK37
(Namur B)
55
57
