Operation
88/130 ekr CON 100 – Installation and Operating Manual
9.5.4 Procedure for Web Edge Guiding
9.5.4.1 Automatic Material Setup
This chapter describes the normal procedure for saving the
bright / dark values for the web edge guiding.
1. Remove any material that may be present from the connected
edge sensors and clean the sensor scanning areas.

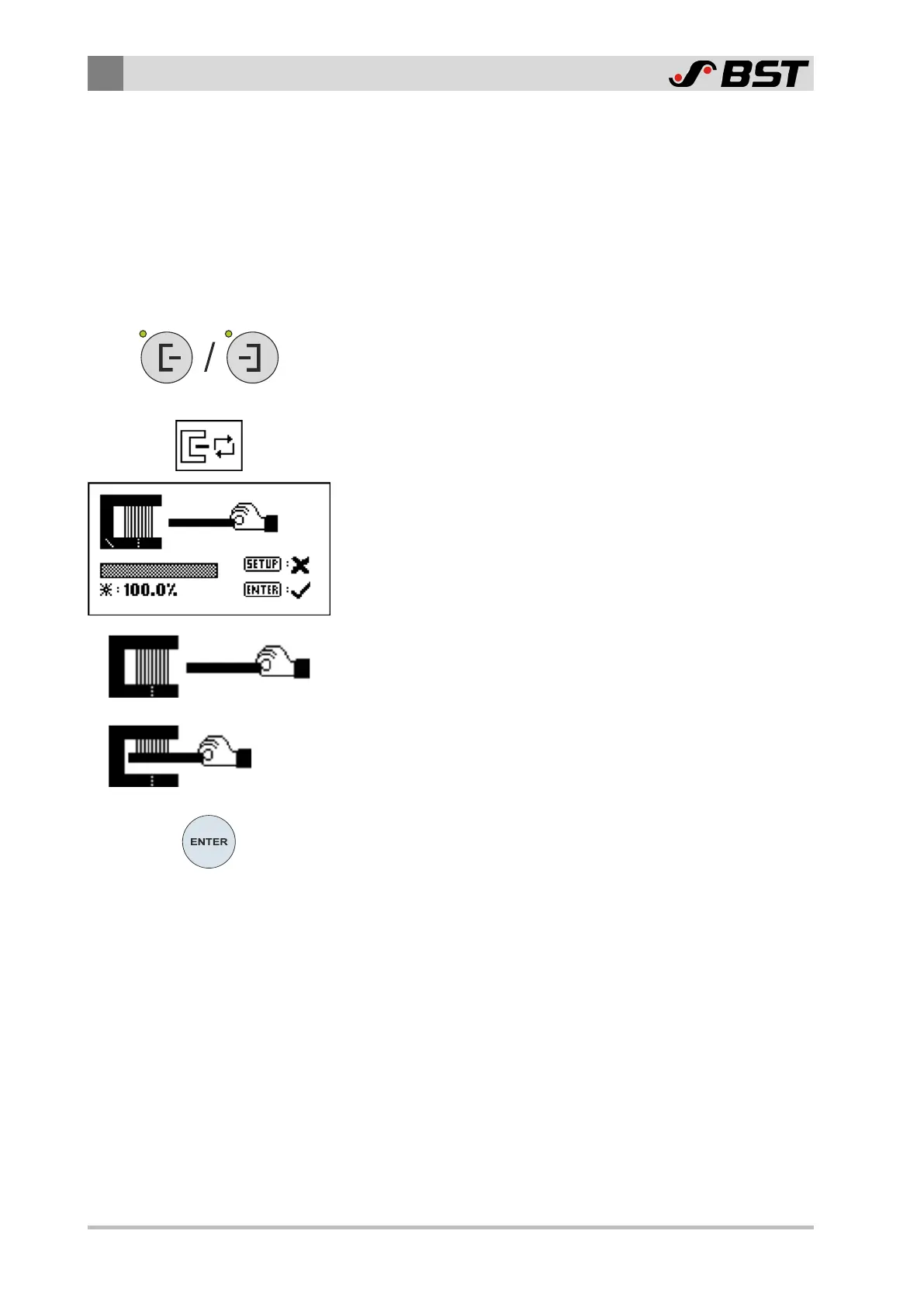

2. Select the desired sensor by pressing the respective key Sensor 1
or Sensor 2.
The LED of the key will illuminate.
3. Activate the automatic material setup (see Activating the
Material Setup, page 87).
The adjacent screen appears in the display (here with Sensor 1
selected). The animation shows the operating steps necessary
for generating the bright / dark values:
The hand moves the material into the sensor scanning area
(dark value) and back out again (bright value).
4. Completely clear the selected sensor's scanning area (no material
in the scanning area).
The bright value measured is displayed.
5. Completely cover the selected sensor's scanning area with the
material to be scanned for at least 2 seconds.
The dark value measured is displayed.
6. Press the ENTER key.
The material setup for the selected sensor is completed.
The bright / dark values determined are saved.
ð The operation screen is displayed.
