Technical Specifications
4

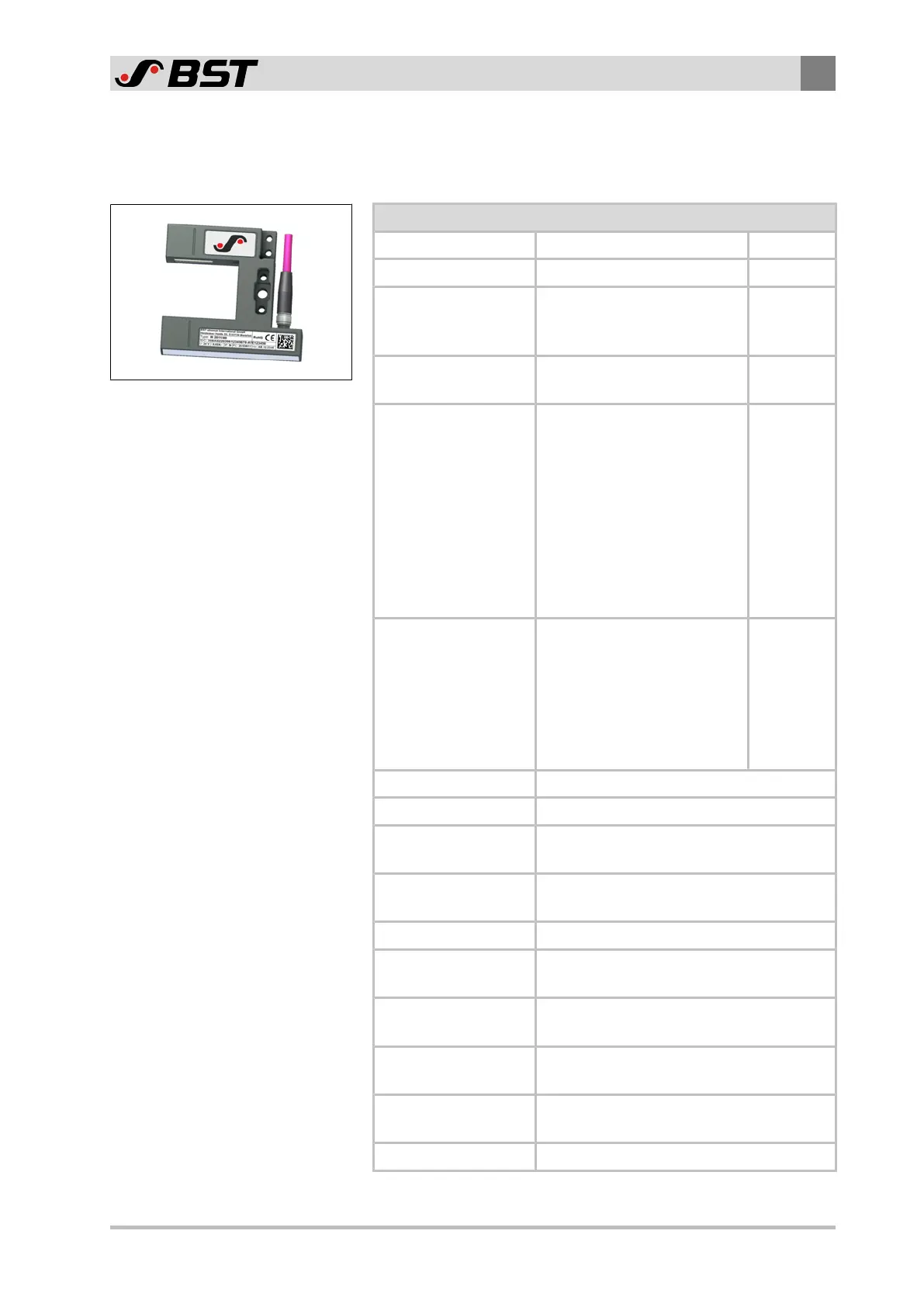

ekr CON 100 – Installation and Operating Manual 31/130
4.3 Sensors
4.3.1 Edge Sensors
Optical edge sensor IR 2011
Sensor IR2011/40 IR2011/70
Fork width 40mm 70mm
Selectable operating
modes
Standard, Narrow, Auto
Setup, Nonwoven, Dynamic,
Marginal Perforation
—
Measuring range
Analogue mode
16 mm
(±8mm)
16 mm
(±8mm)
Measuring range
Digital mode
Operating mode dependent
■ Standard, Nonwoven,
Dynamic:
24mm (±12mm)
■ Auto Setup:
20mm (±10mm)
■ Narrow,
Marginal Perforation:
7mm (±3.5mm)
20mm
(±10mm)
Scan rate Operating mode dependent
■ Standard, Narrow, Auto
Setup, Marginal Perforation:
250Hz
■ Nonwoven: 125Hz
■ Dynamic: 500Hz
250Hz
Supply voltage 12 to 30V⎓ (including ripple)
Current consumption 20mA (24V⎓)
Light emitter wave
length
630 nm
Resolution /
Repeatable accuracy*
0.001mm/0.01mm
Linearity ±0.2mm
Output signal
(analogue mode)
0 to 10V⎓ (±2.5%)
Output signal
(digital mode)
CAN bus
Polarity reversal
protection (supply)
yes
Short circuit protection
(analogue output)
yes
Operation display LED (2-coloured)
