Technical Specifications
32/130 ekr CON 100 – Installation and Operating Manual
Optical edge sensor IR 2011
Electrical connection M8 plug, 4-pin
Ambient temperature
during operation
0 to +60°C
Storage temperature -10 to +70°C
Protection category IP 54
Noise emission < 70 dB
Weight <400g <500g
Housing dimensions See separate product data sheet
RoHS conformity yes
* in digital mode

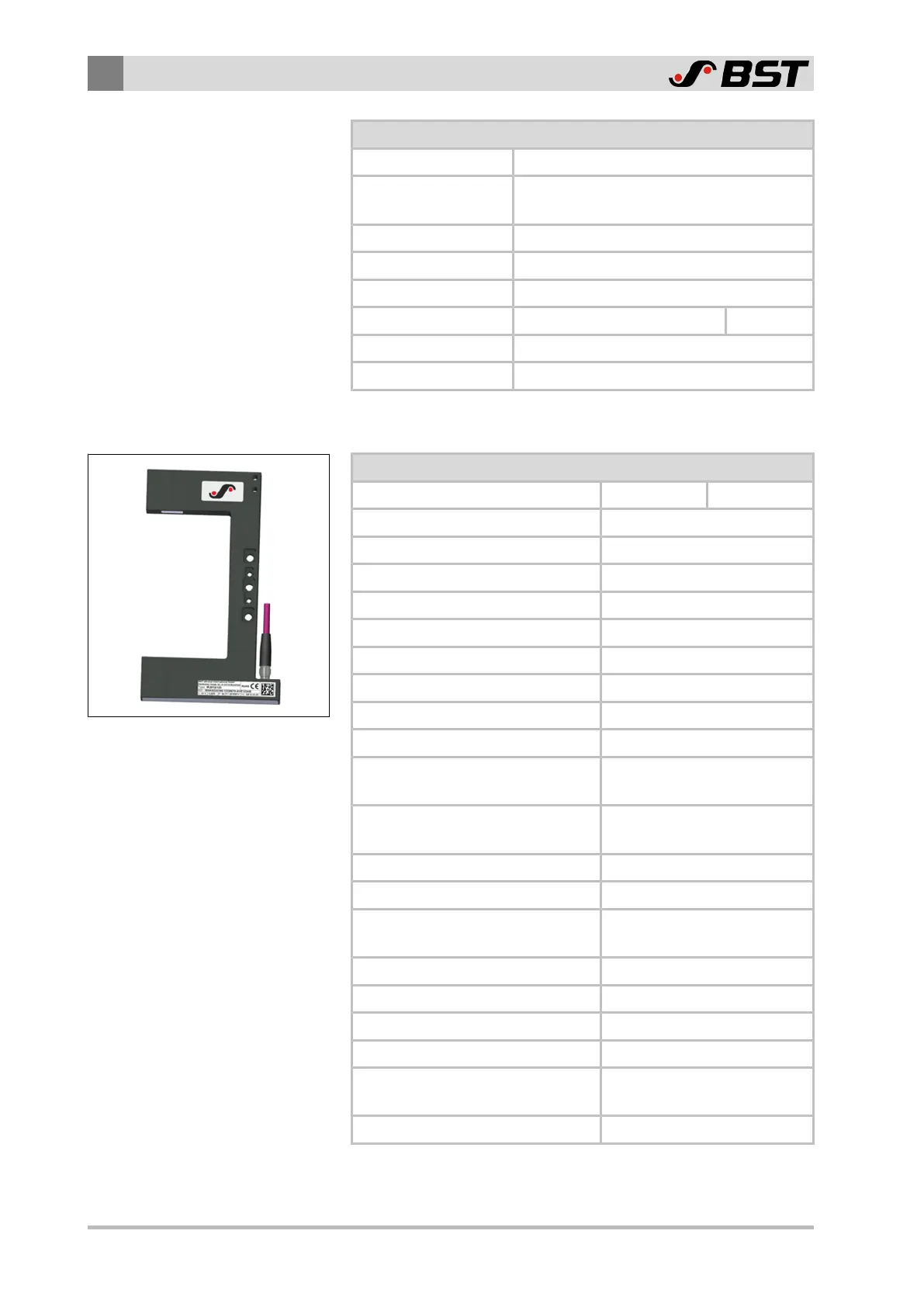

Optical edge sensor IR 2012
Fork width 40mm 125mm
Measuring range 12mm (±6mm)
Supply voltage 12 to 30V⎓ (including ripple)
Current consumption 20mA (24V⎓)
Light emitter wave length 950 nm
Scan rate 250Hz
Resolution / Repeatable accuracy* 0.001mm/0.05mm
Linearity ±0.5mm
Output signal (analogue mode) 0 to 10V⎓ (±2.5%)
Output signal (digital mode) CAN bus
Polarity reversal protection
(supply)
yes
Short circuit protection
(analogue output)
yes
Operation display LED (2-coloured)
Electrical connection M8 plug, 4-pin
Ambient temperature
during operation
0 to +60°C
Storage temperature -10 to +70°C
Protection category IP 54
Noise emission < 70 dB
Weight <500g
Housing dimensions See separate product data
sheet
RoHS conformity yes
* in digital mode
