BST ekr CON 100 User Manual

Commissioning
8
ekr CON 100 – Installation and Operating Manual 63/130

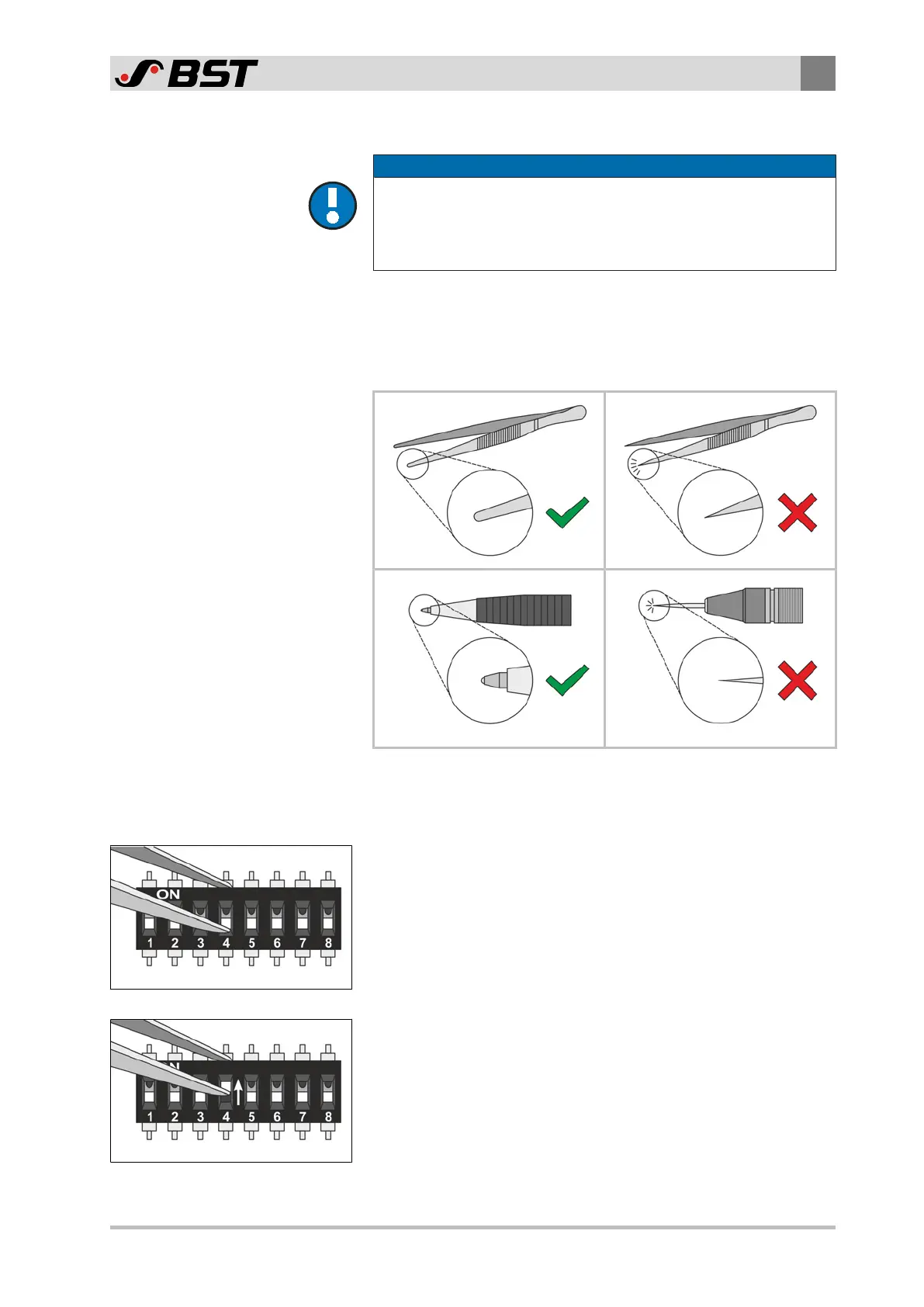

8.3.1 Using the DIL Switch
NOTICE
Damage to the DIL switch from incorrect use!
Deformation of the movable sliders or contacts may lead to mal-
functions.
►
Observe the DIL switch instructions for use.
Precautionary measures
►
For setting the DIL switch, use plastic tweezers with smooth
surface and rounded ends (optimal) or a ball-point pen. Do not
use objects with a sharp tip!
►
Avoid applying point-shaped force impact on the movable
sliders.
Correct procedure for setting the DIL switch
1. Position the tweezers on the DIL switch as follows:
One end of the tweezers engages behind the switch housing.
The other end of the tweezers engages on the movable slider.
2. Move both ends of the tweezers towards each other applying a
little pressure in order to move the slider to the desired position.
