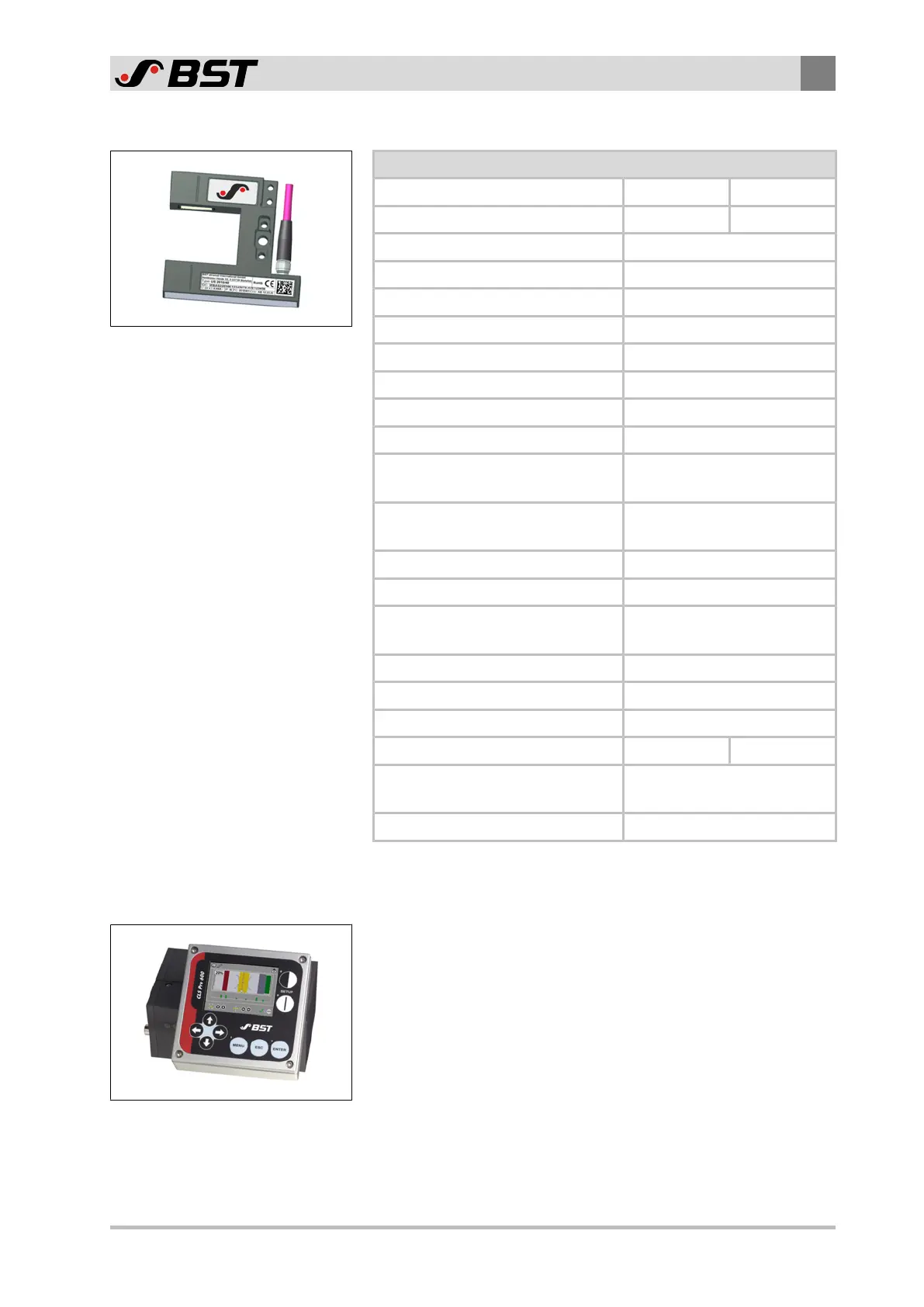

BST ekr CON 100 User Manual

Technical Specifications
4
ekr CON 100 – Installation and Operating Manual 33/130
Ultrasonic edge sensor US2010
Fork width 40mm 70mm
Measuring range 12mm 12mm
Supply voltage 12 to 30V⎓ (including ripple)
Current consumption 40mA (24V⎓)
Ultrasonic frequency 164 kHz
Scan rate 200Hz
Resolution / Repeatable accuracy* 0.001mm/0.05mm
Linearity ±0.2mm
Output signal (analogue mode) 0 to 10V⎓ (± 2.5%)
Output signal (digital mode) CAN bus
Polarity reversal protection
(supply)
yes
Short circuit protection
(analogue output)
yes
Operation display LED (2-coloured)
Electrical connection M8 plug, 4-pin
Ambient temperature
during operation
0 to +60°C
Storage temperature -10 to +70°C
Protection category IP54
Noise emission < 70 dB
Weight <400g <500g
Housing dimensions See separate product data
sheet
RoHS conformity yes
* in digital mode
4.3.2 Line and Contrast Sensor CLS Pro 600
Technical specifications, see separate operating manual of the
CLSPro600 line and contrast sensor, document number MD.323.
