7.2 Cable Routing
WARNING
Severe injuries and damage to assets caused by incorrect cable
routing.
Poorly routed cables can cause tripping, spills and consecutive acci-
dents.
►
Always route cables strain-relieved and well anchored.
►
Ensure that no tripping or catching points are generated.
►
Do not bend/kink cables; observe the minimum bending radius.
►
Maintain a minimum distance of at least 25mm between the
cables and moving parts of the machine.
►
Route the cables so that they do not rub or become crushed,
cut or caught.
►
Tighten up the securing screws in the plug connections.
►
Route signal cables separately from supply cables as signal
cables are sensitive to interference.

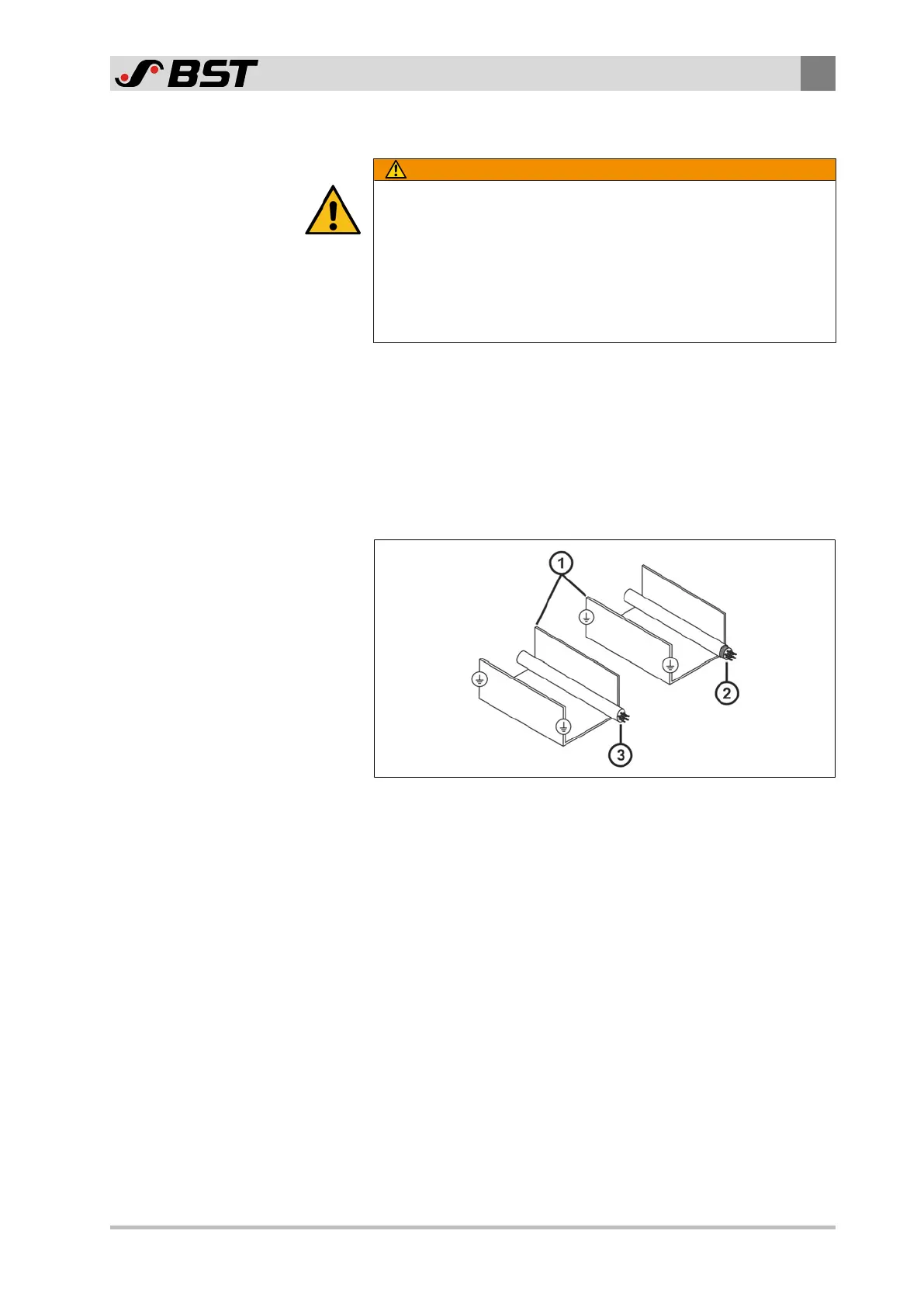

Fig.11: Separate routing of signal and supply cables
① Cable duct ③ Supply cable
② Signal cable
►
Establish cable connections between the components according
to the connecting diagram.
