BST ekr CON 100 User Manual

7
Electrical Connection
48/130 ekr CON 100 – Installation and Operating Manual
7.6.2 X100 - Power Supply
The power supply is connected to the controller with a 4-pin
micro-style connector M8.
View X
View X
Connector (male)
Socket (female)

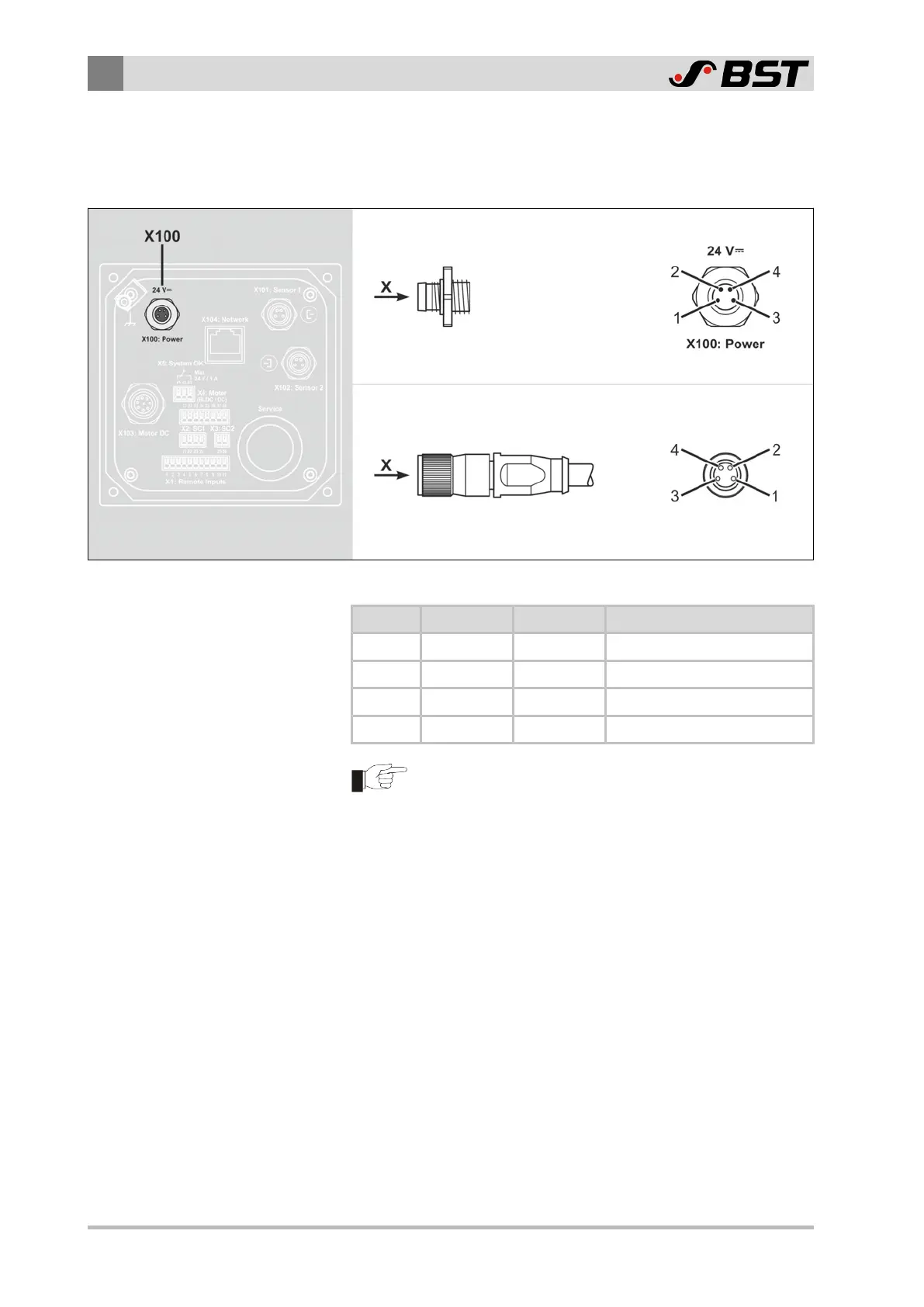

Fig.15: Contact assignment of the plug connector
Contact Function Wire colour Note
1 +24V⎓ brown Power supply controller
2 reserved
3 GND blue Ground
4 reserved
When using an actuator EMS21, EMS22 or ECOEMS22,
the length of the supply cable (wire cross section 0.5 mm
2
)
must be maximum 5m.
