9.4.3 Impermissible Supply Voltage
If the supply voltage of the controller is outside the permissible
range then the warning symbol Supply voltage appears next to
the operation display of the actuator.

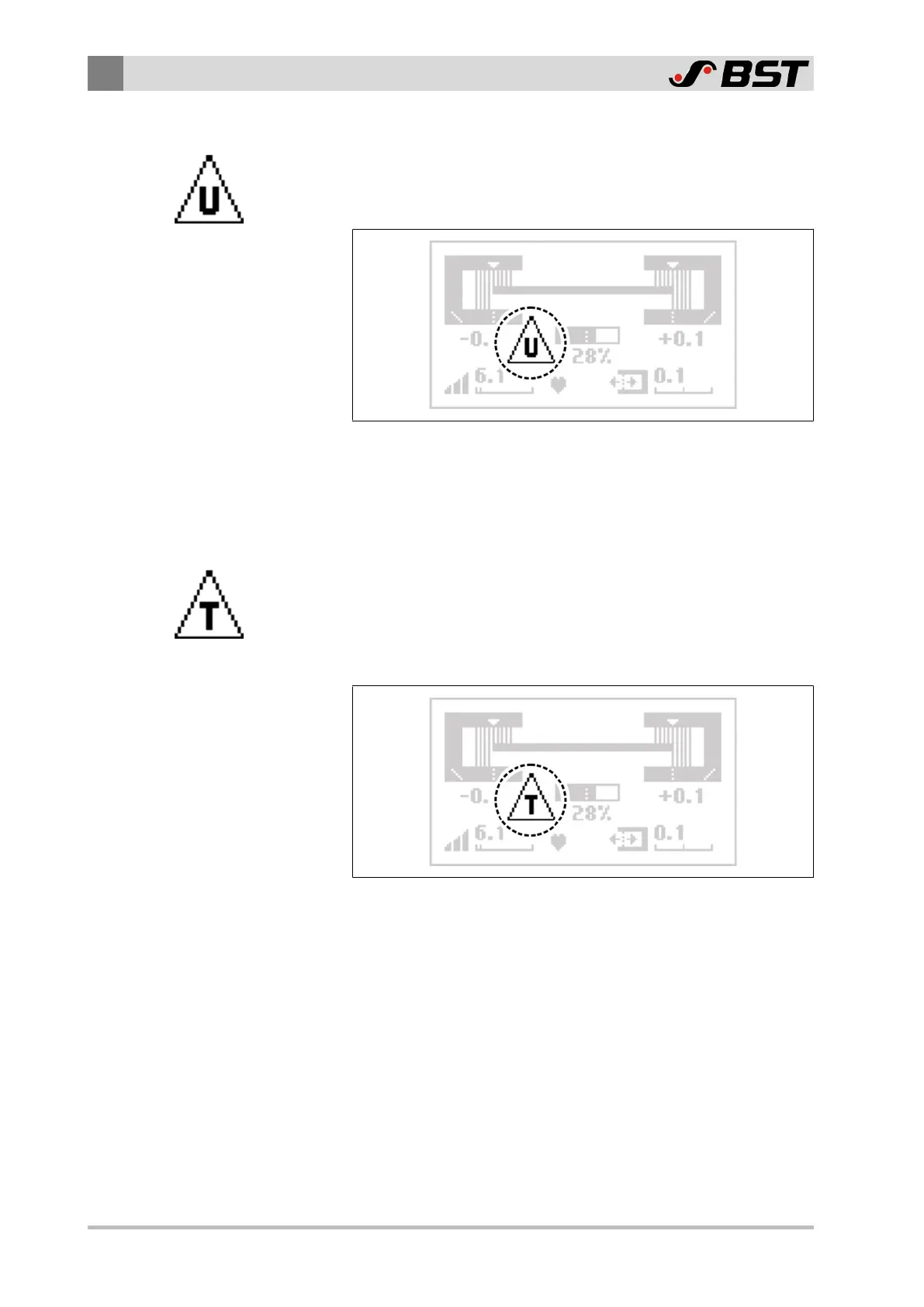

Fig.38: Screen display with impermissible supply voltage
If the supply voltage lies inside the permissible voltage range
again then the symbol automatically fades out.
9.4.4 Motor Control Timeout
If the actuator is run uninterrupted in the same direction for more
than 50 seconds during operation of the web guiding system, the
motor output stage is automatically switched off. Next to the
operation display of the actuator, the warning symbol Motor
control timeout appears in the display.
Fig.39: Screen display during the motor control timeout
After driving the actuator in the opposite direction, the symbol
fades out automatically.
