6
Installation
40/130
ekr CON 100 – Installation and Operating Manual
6.3
Installing the Controller
6.3.1
Installation Cut-Out

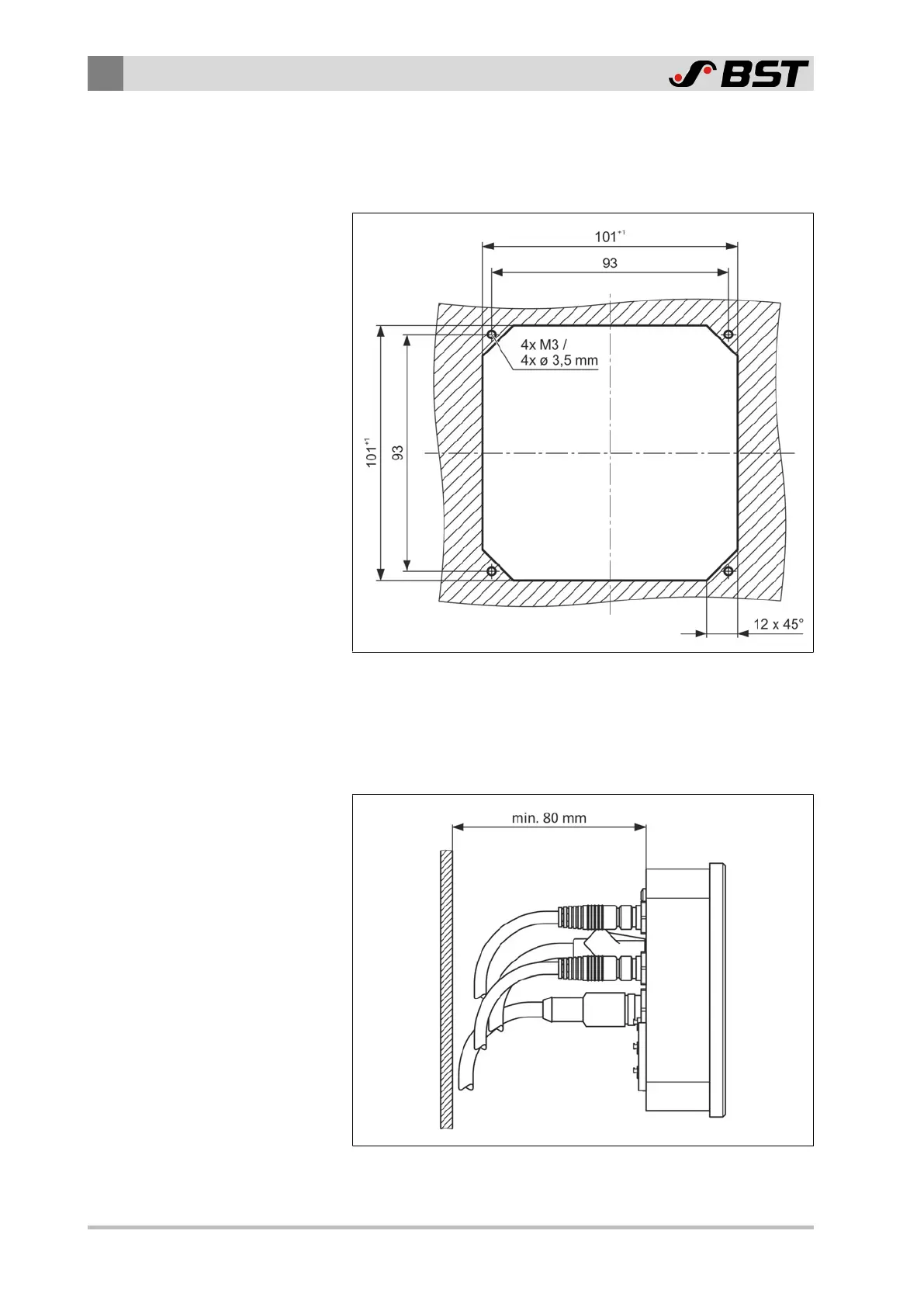

Fig.8: Installation cut-out
6.3.2
Space Requirement for the Connecting Cable
The
figure
shows
the
free
space
behind
the
controller
that
is
required for connecting the cable.
Fig.9: Space requirement for the connecting cable
