6.3.3 Installing the controller
NOTICE
Damage to the system from drilling dust and loose parts!
Drilling dust, splitter and loose parts may damage the machine.
►
Before carrying out drilling or installation work, cover the
affected area of the machine with film or paper.
►
After installation work, check that the bolts are screwed tight.

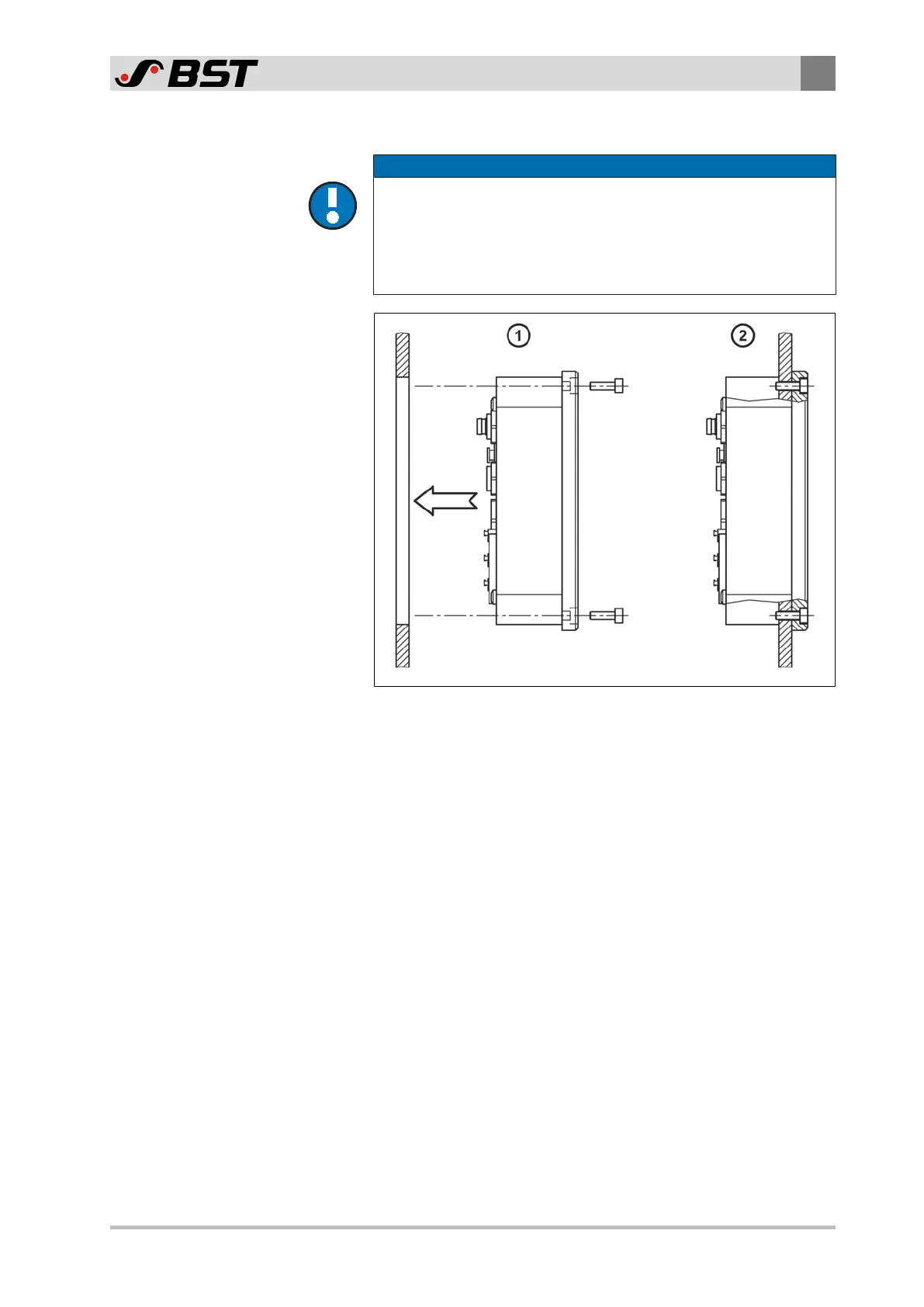

Fig.10: Installation of the controller
1. Make the installation cut-out and fixing boreholes (see Installation
Cut-Out, page 40).
2. Carefully push the controller into the installation cut-out
3. Screw on the controller with the four M3 ISO 4762 hexagon
head screws.
