Electrical Connection
52/130 ekr CON 100 – Installation and Operating Manual
7.6.6 X105 - Service
The service interface (USB 2.0 Mini-B) is used for programming
the controller in the factory. The X105 socket is located behind
the round plastic plug (Service).
USB 2.0 Mini-B

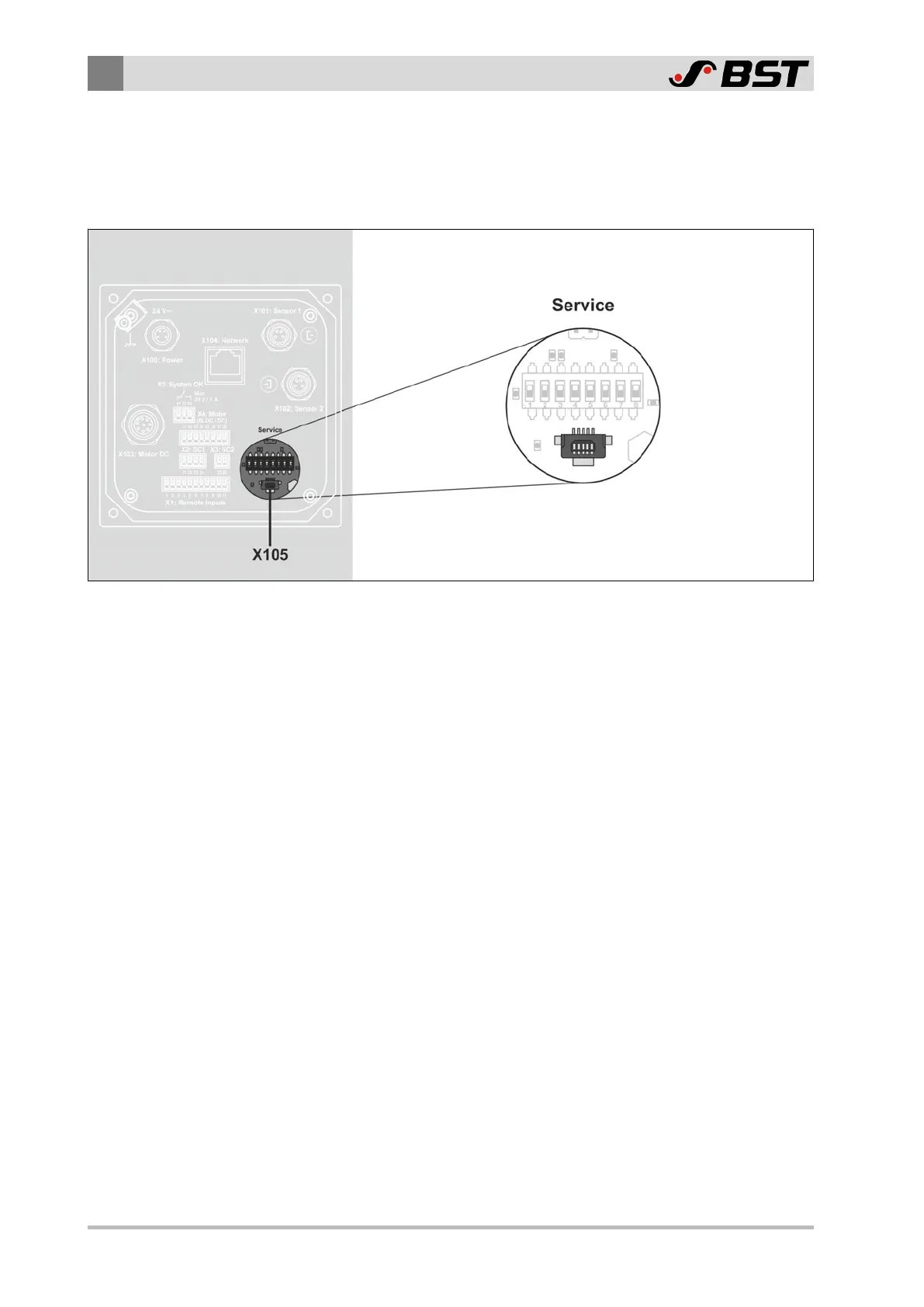

Fig.19: Programming interface
