BST ekr CON 100 User Manual

Electrical Connection
7
ekr CON 100 – Installation and Operating Manual 53/130

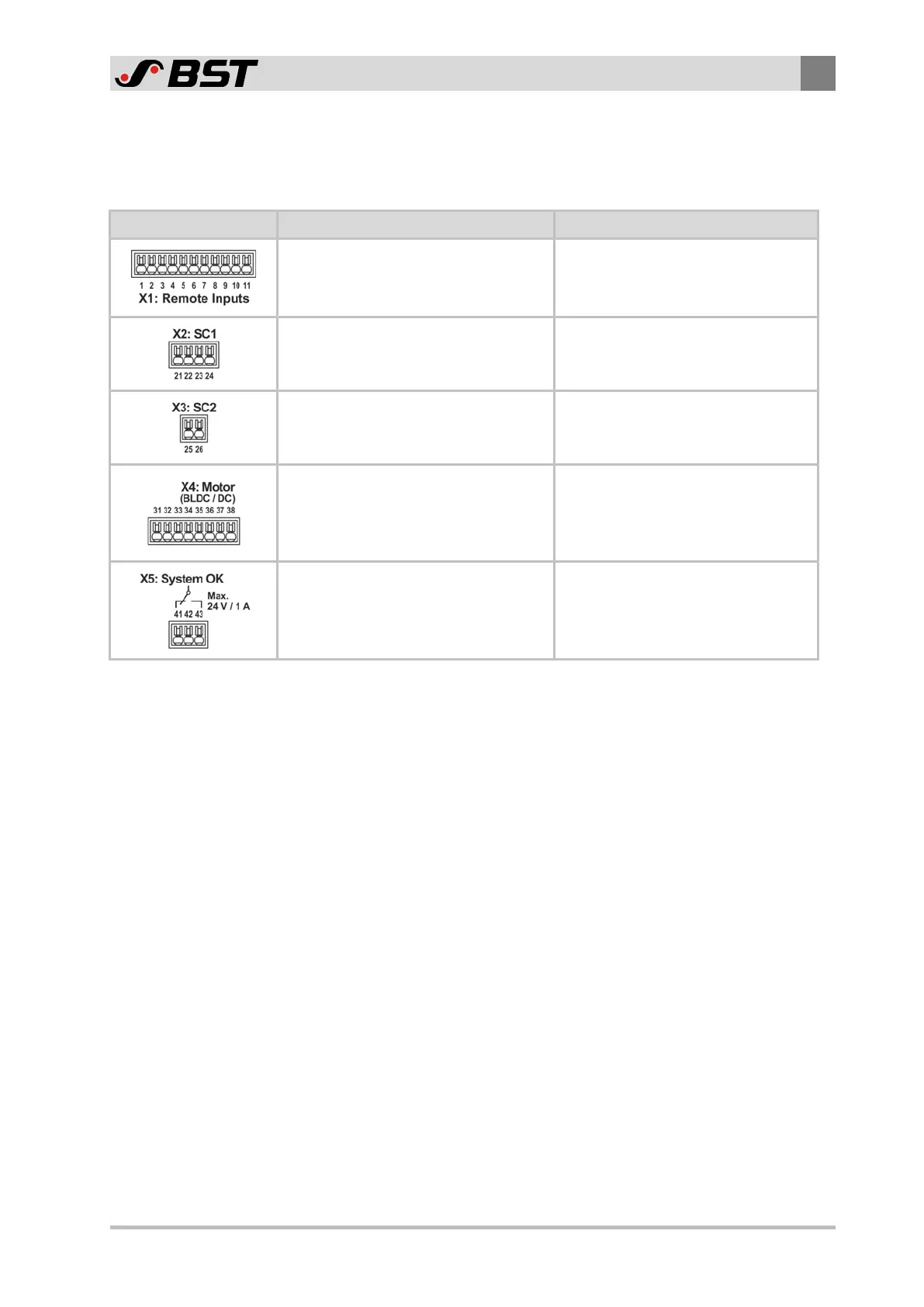

7.7 Terminal Strips
7.7.1 Overview
Terminal strip Function Note
Digital inputs Remote control, controller interlock
Connection position feedback actuator If connection via X103 is not possible
Connection servo center transducer OMG8, CK37
Connection brushless motor / DC
■ Brushless motor connection
■ DC motor connection,
if connection via X103 is not
possible (EMS10, ECOEMS22)
Message output ”System OK“
See also Message Output “System OK“,
page 21.
