9.5.4.2 Manual Material Setup
This chapter describes the procedure for saving the bright / dark
values for the web edge guiding with critical contrasts.
1. Remove any material that may be present from the connected
edge sensors and clean the sensor scanning areas.

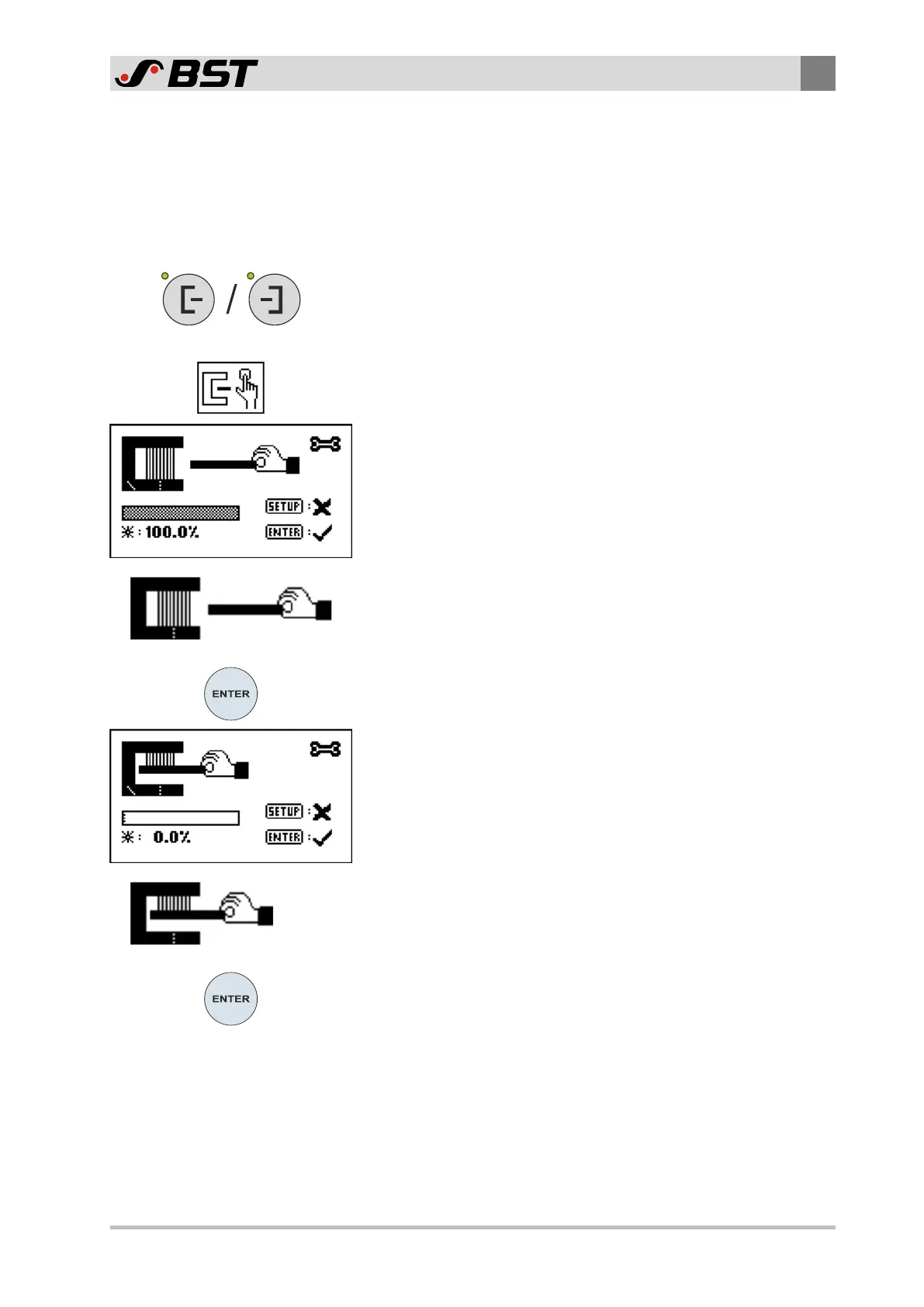

2. Select the desired sensor by pressing the respective key Sensor 1
or Sensor 2.
The LED of the key will illuminate.
3. Activate the manual material setup (see Activating the Material
Setup, page 87).
The screen display shows the operating step necessary for
generating the bright value for the selected sensor (Sensor 1
here).
4. Completely clear the selected sensor's scanning area (no
material in the scanning area).
The bright value measured is displayed.
5. Press the ENTER key.
The bright value will be saved.
The screen display shows the operating step necessary for
generating the dark value for the selected sensor (Sensor 1
here).
6. Completely cover the scanning area of the selected sensor with
the material to be scanned and keep it covered.
The dark value measured is displayed.
7. Press the ENTER key.
The dark value will be saved.
The material setup for the selected sensor is completed.
ð The operation screen is displayed.
