BST ekr CON 100 User Manual

Operation
9
ekr CON 100 – Installation and Operating Manual 79/130

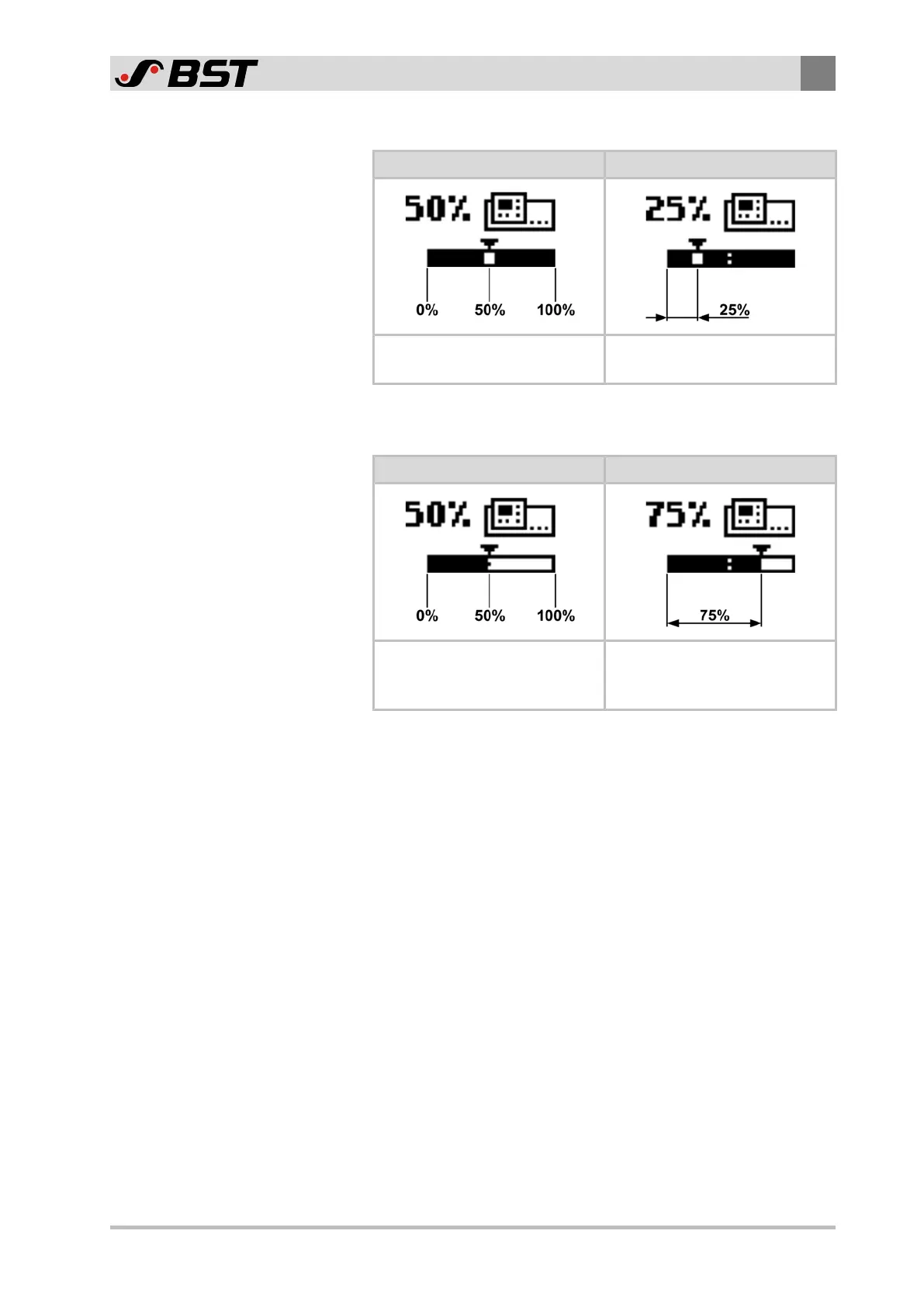

Display of the position of the line to be scanned (example)
Guiding setpoint = 50% Guiding setpoint = 25%
The line is located in the center
of the sensor scanning area.
The line is located at 25% of the
sensor scanning area.
Display of the position of the contrast transition to be scanned
(example)
Guiding setpoint = 50% Guiding setpoint = 75%
The contrast transition is
located in the center of the
sensor scanning area.
The contrast transition is
located at 75% of the sensor
scanning area.
