15.

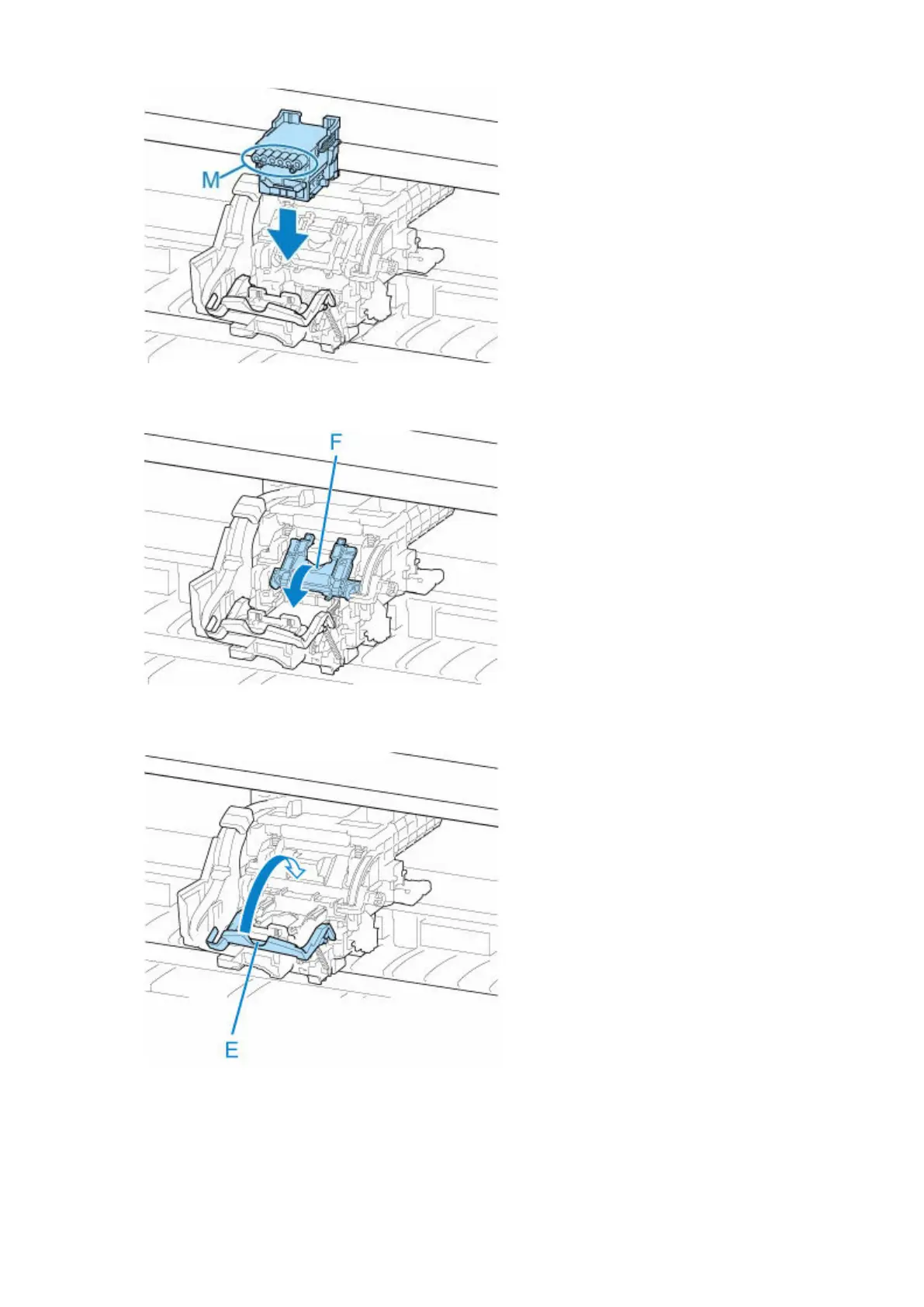

Grasp tab (F) of print head locking cover and lower it to front to lock print head.
15.
16. While holding center part (E) of print head lock lever, lower it toward back.16.
17.
Adjust angle adjustment lever to the position of the red square.
17.
475
