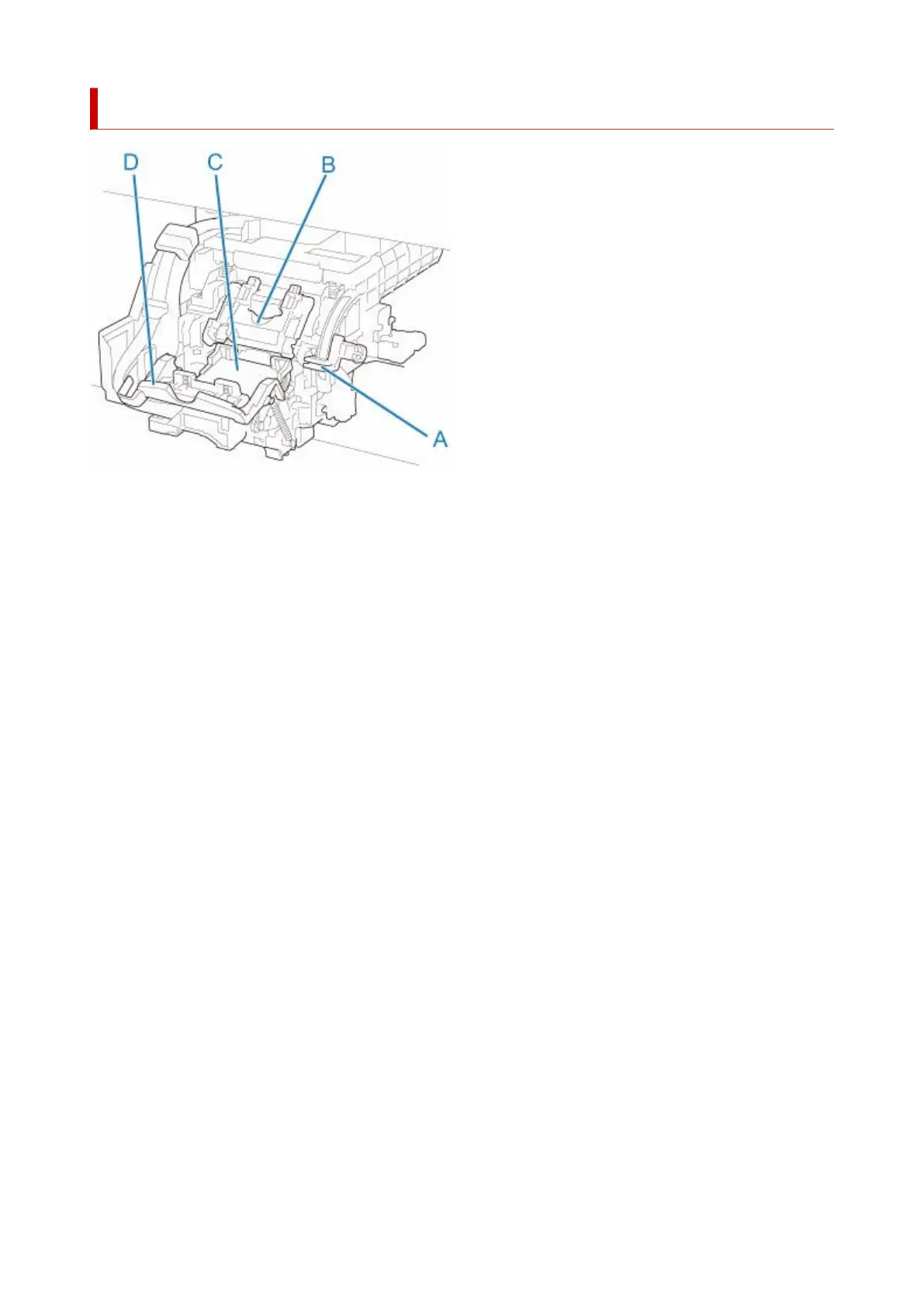

Carriage
(A) Angle Adjustment Lever
Fine-tunes the line misalignment when printing.
(B) Print Head Locking Cover
Secures the print head.
(C) Print Head
The printhead is equipped with ink nozzles. The carriage serves a key role in printing.
(D) Print Head Lock Lever
Lock print head locking cover.
48
