April 2021 TESTS 9-29

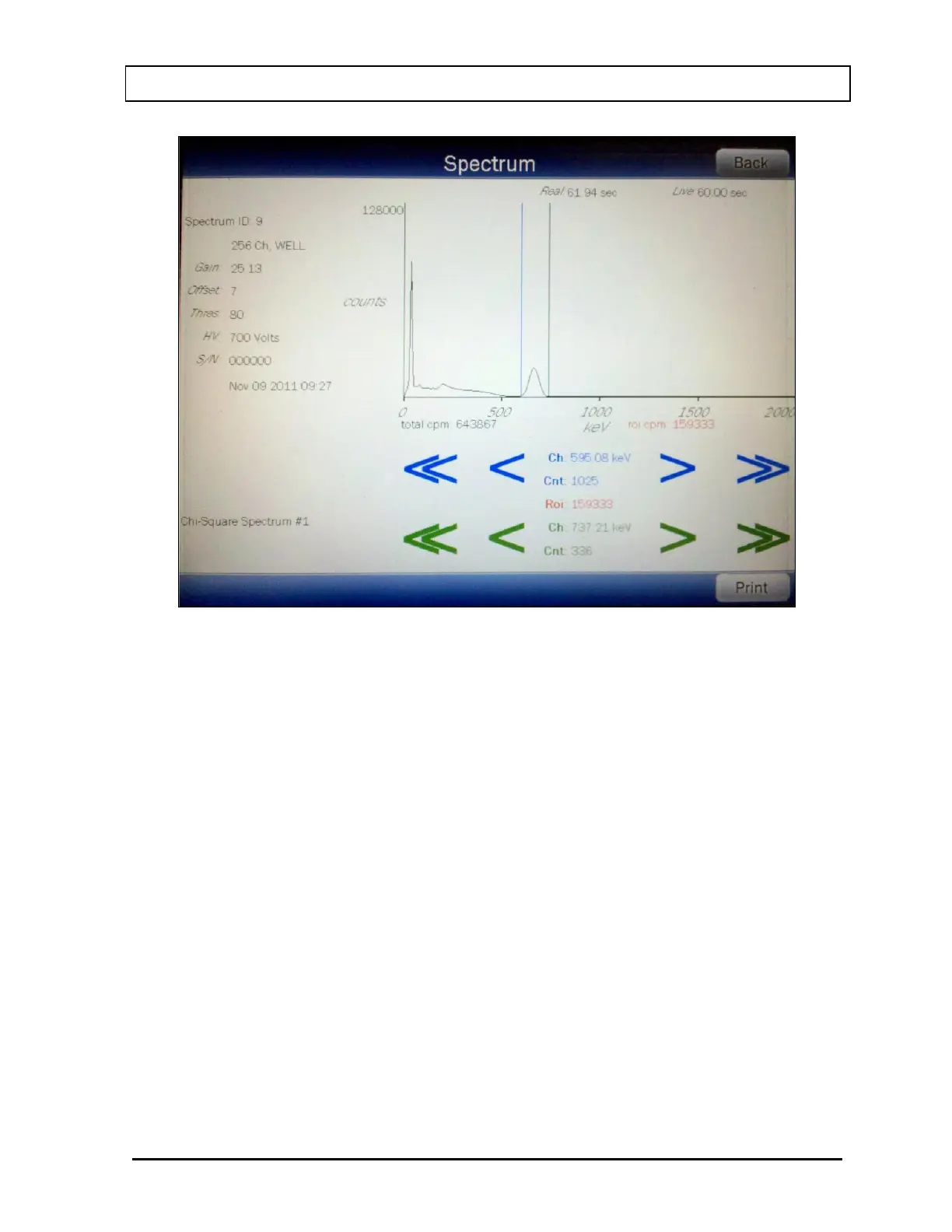

Figure 9-23 Chi Square Test Spectrum Screen
A Region of Interest may be defined using the BLUE and GREEN ARROW buttons to
place vertical line cursors around the ROI. DOUBLE ARROW buttons move the
cursor approximately 75 energy channels. SINGLE ARROW buttons move the cursor
approximately 7.5 energy channel.
Note: The actual energy channel keV will vary depending upon the Auto Calibration.
When the vertical cursor is moved, the channel energy (keV) and the number of
counts in that energy channel are displayed. Once the vertical cursors are set, the
total counts in the ROI are displayed.
To print the spectrum, touch the PRINT button.
To return to Figure 9-22 Chi Square Test Results Screen, touch the BACK button.
Exit Results
To exit Figure 9-22 Chi Square Test Results Screen,
• touch the BACK button – Figure 9-6 Quality Assurance Screen will re-appear
or
• touch the HOME button – Figure 9-5 Main Screen will appear.
