CAPINTEC, INC. CAPRAC
®
-t
9-28 TESTS April 2021
Results
To save the Chi Square Test measurements and obtain the results, touch the
ACCEPT button. The calculated results will appear on the screen as shown in Figure
9-22 Chi Square Test Results Screen.

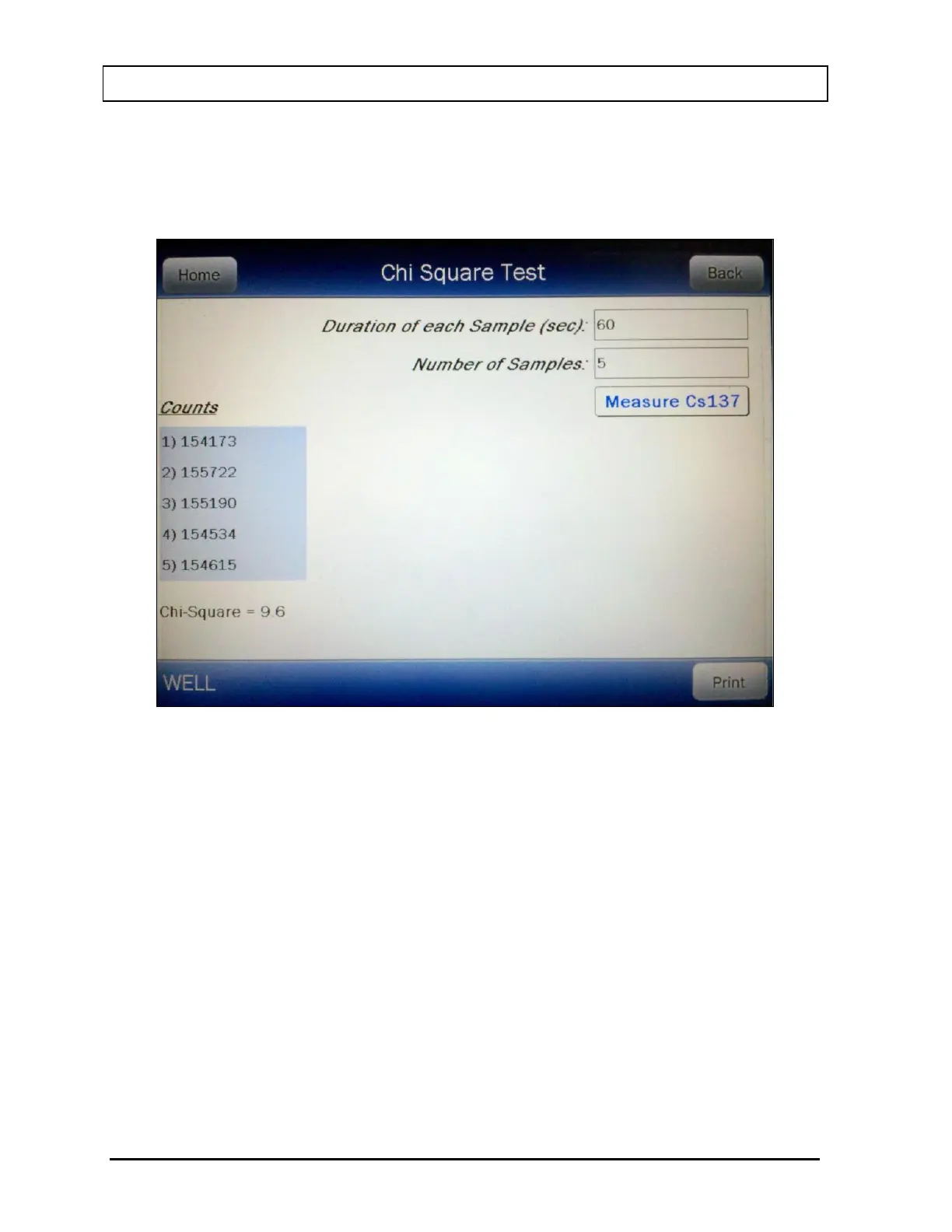

Figure 9-22 Chi Square Test Results Screen
Print Results
If a printer is attached to the system, the test results can be printed by touching the
PRINT button.
View Spectrum
To view and/or print any of the spectra, touch the desired highlighted count. For
example, to view the second spectrum in the above example, touch the line with 1)
154173. Figure 9-23 Chi Square Test Spectrum Screen will appear.
