CAPINTEC, INC. CAPRAC
®
-t
10-16 WIPE MEASUREMENT PROCEDURES April 2021
ROI
If it is desired to enter an ROI without specifying a nuclide, then the start and end ROI
keV must be specified.
To set the ROI by entering a start and end keV, touch the Region of Interest (ROI)
Start: field box. The numeric keypad will appear. Input the desired starting keV by
touching the appropriate numbers on the keypad. Touch the ACCEPT button to
accept the entered value. Touch the CANCEL button to abort any changes.
Note: The minimum keV that can be input is 0. The maximum keV that can be input
is 2,000.
Repeat for the above step for the Region of Interest (ROI) End: field box.
Once both the start keV and end keV are entered, the screen will appear similar to
Figure 10-13 Set Nuclide/ROI Screen using ROI.

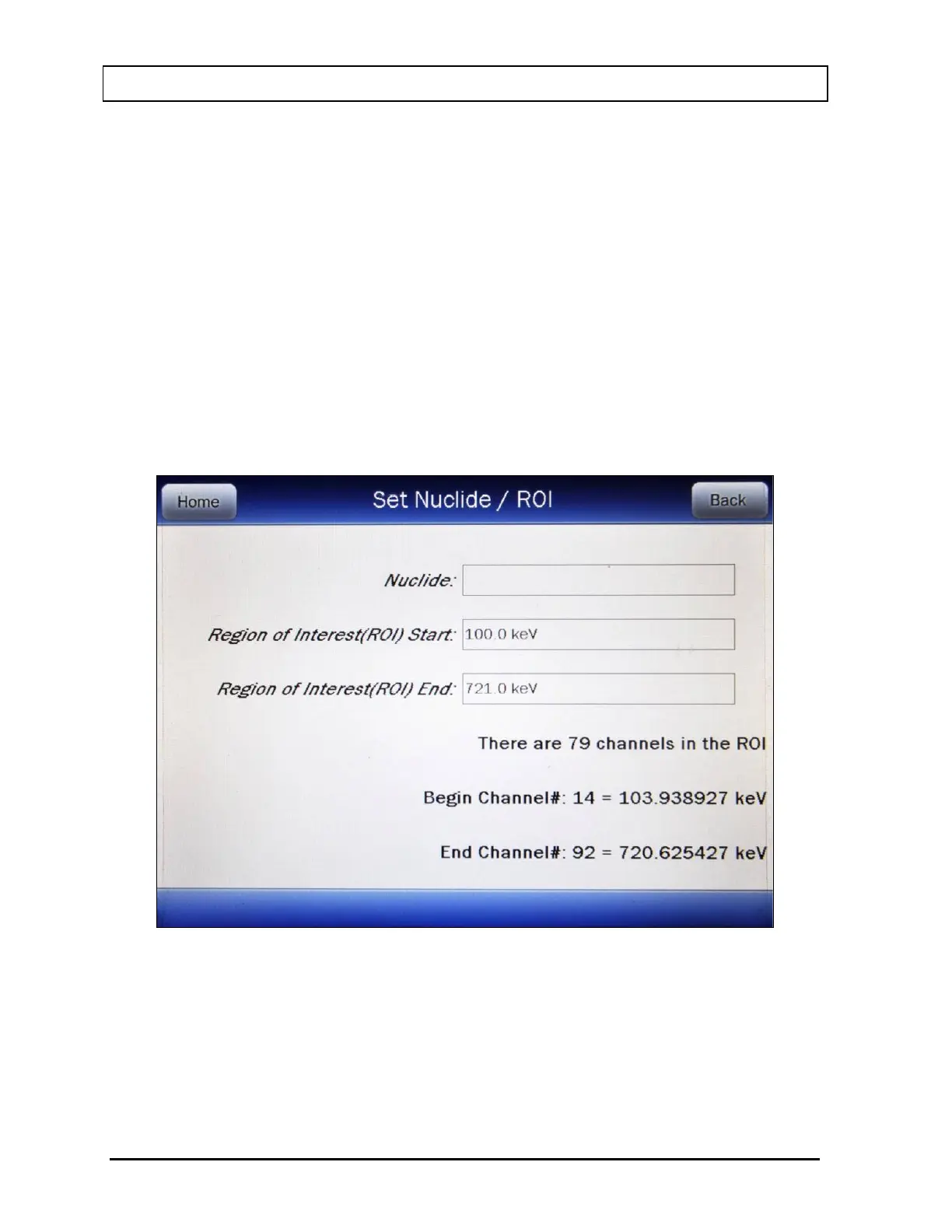

Figure 10-13 Set Nuclide/ROI Screen using ROI
To save the set ROI and continue with the General Measurement, touch the BACK
button. Figure 10-11 Wipe General Measurement Screen will re-appear with the
selected ROI displayed in red on the screen below the COUNT TIME button similar to
that shown in Figure 10-14 General Measurement Results Screen.
