CAPINTEC, INC. CAPRAC
®
-t
13-8 CLEANING AND MAINTENANCE April 2021

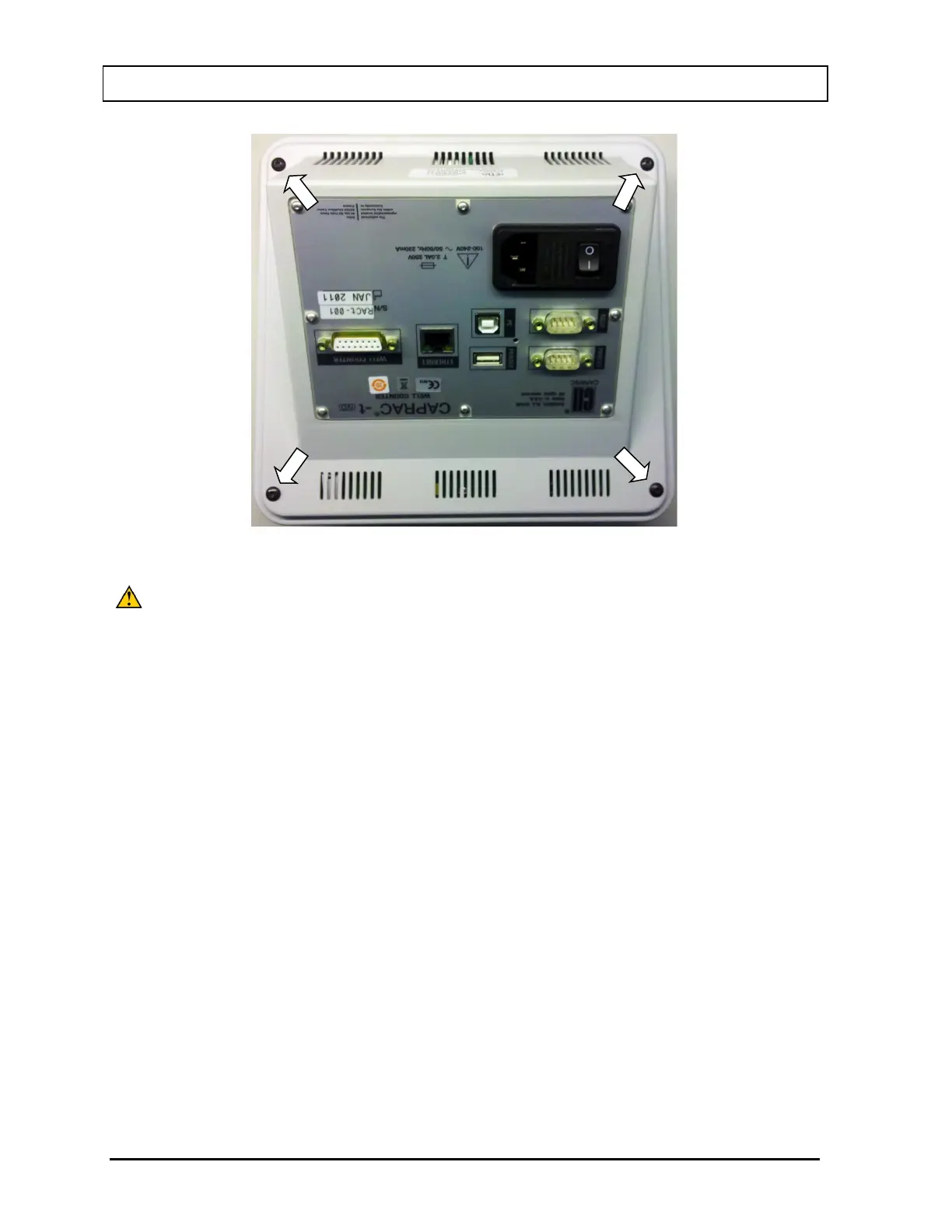

Figure 13-4
CAUTION: There are several Flat-Flex cables inside the Readout Unit that connect
the Back Case to the Front Case. Exercise care while performing the
following steps to avoid disconnecting any of the cables.
c. Once the 4 screws are removed, gently lift up the Back Case approximately
½” above the Front Case and carefully move the Back Case to the left
approximately 3” to expose the battery as shown in Figure 13-5.
