Charge Phone Battery Using Power Supply
Use the following figure and steps to charge the phone battery quickly.

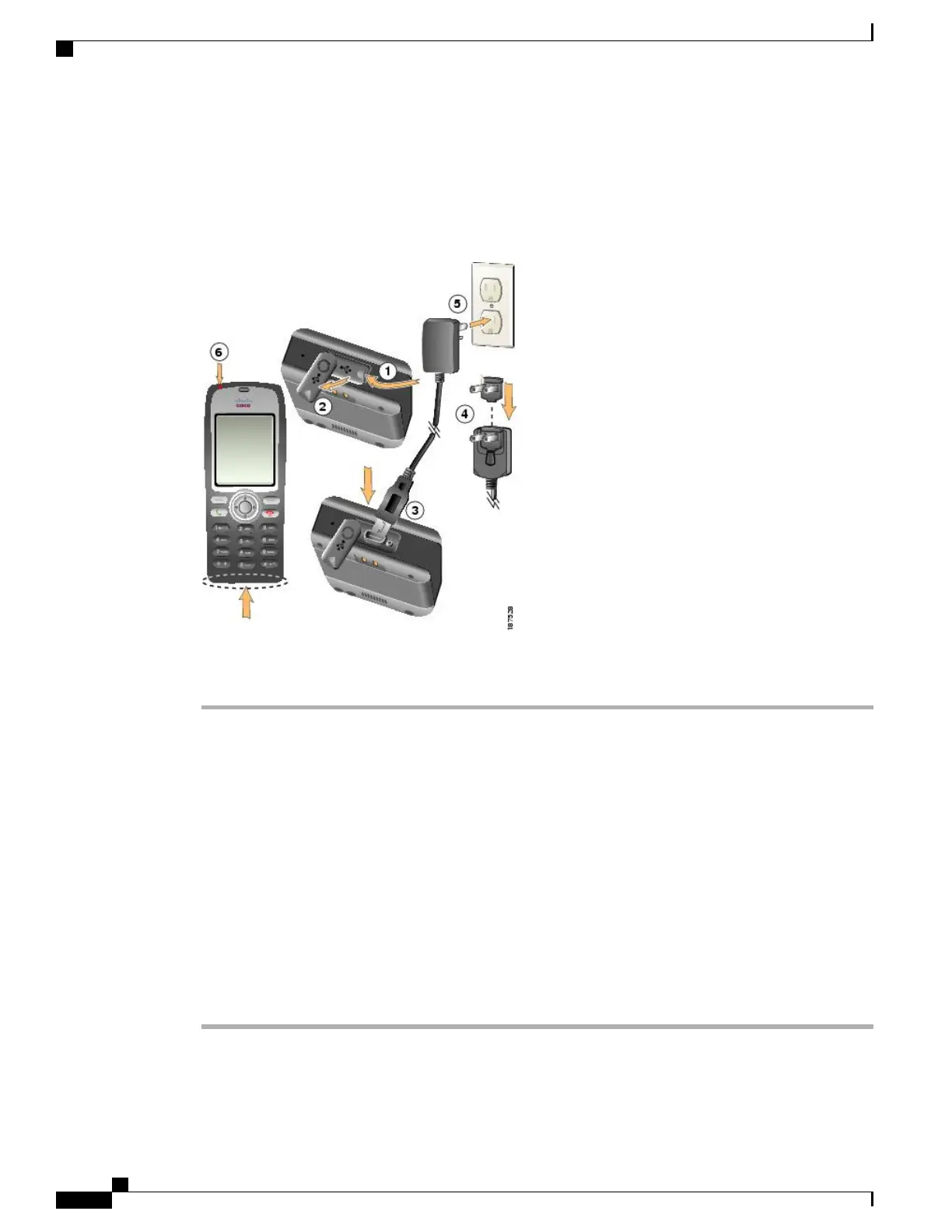

Figure 7: Charge the Phone Battery
Procedure
Step 1
Lift the mini-USB port cover on the bottom of phone.
Step 2
Swing the port cover to one side.
Step 3
Insert the AC power supply mini-USB connector in the port.
Step 4
Insert the AC plug adapter in the slot on the power supply.
Step 5
Insert the AC power supply in a wall outlet.
The indicator light indicates the charging status:
Red
Battery charging in process.
Green
Battery charging is complete.
You can use the phone while the battery is being charged. For charging times, see Phone Power, on
page 54.
Note
Cisco Unified Wireless IP Phone 7925G, 7925G-EX, and 7926G Administration Guide
58
