Cleaver-Brooks ClearFire CFLC-5000 - Casing & Insulation (by model size)

Section 6 — Parts
Part No. 750-363 6-23

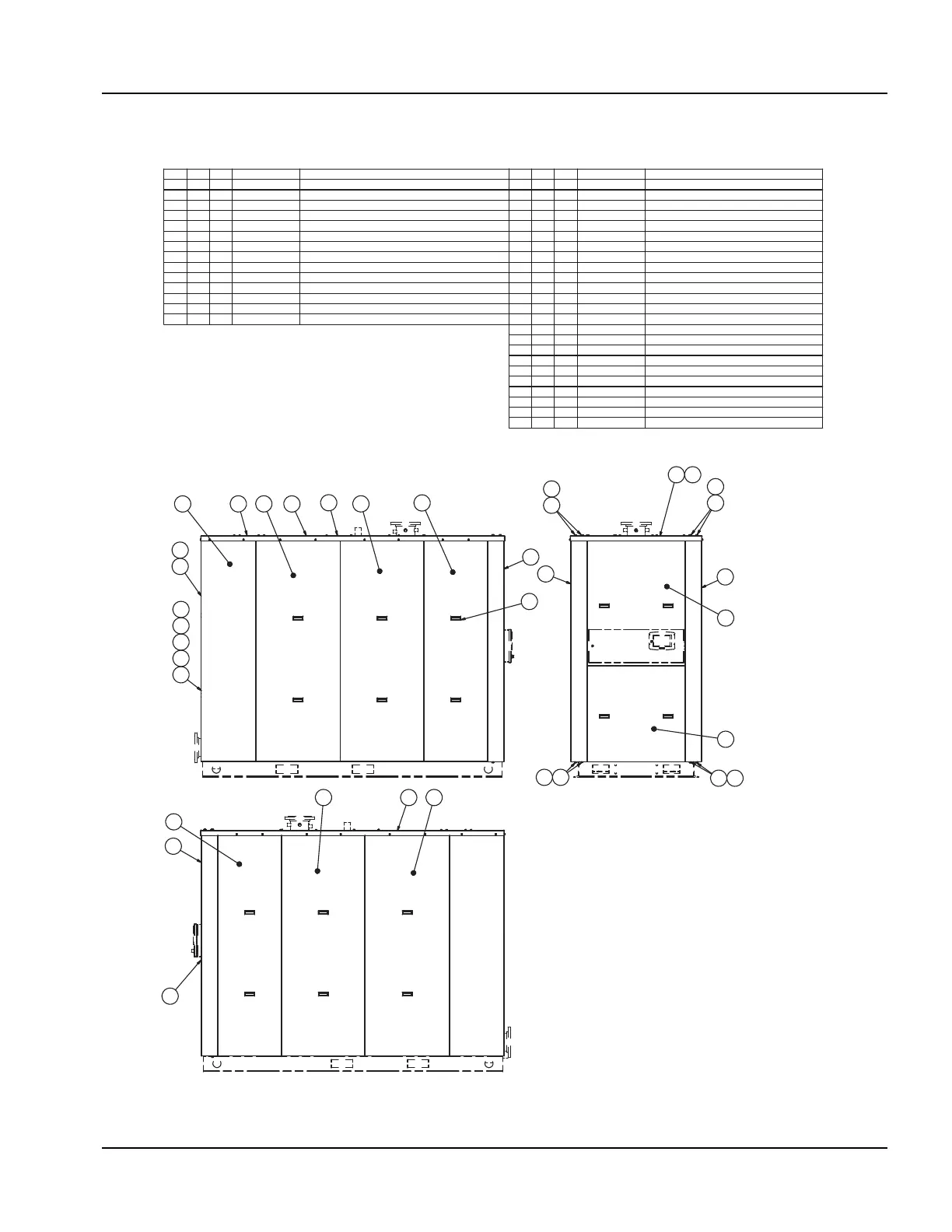

Figure 6-22. Casing & Insulation 4000-5000
KIT
ITEM
QTY
PART NO
DESCRIPTION
#11
872-01303-000 INSULATION BLANKET, 1000 F, 2" THICK x 65-1/2" X 117"
#
2
1
872-01303-000 INSULATION BLANKET, 1000 F, 2" THICK x 65" X 119"
#
3
1
094-01042-000 FRONT TUBE SHEET INSULATION
# 4 1 094-01041-000
INSULATION, KAOWOOL PAPER, 2300 F, 1/8" x 2" x 128" LG.
#51
094-01041-000 INSULATION, KAOWOOL PAPER, 2300 F, 1/8" x 2" x 46" LG.
*6
1
105-12380-000 CASING PANEL, ROOF, CFx 5000
*
7
1 105-12381-000 CASING, REAR RIGHT PANEL, CFx 5M
*
8 1 105-12382-000 CASING, REAR LEFT PANEL, CFx 5M
*9
1
105-12383-000 CASING, REAR PANEL, CFx 5M (TOP)
*
10
1
105-12386-000 CASING, FRONT RIGHT CORNER, CFx 5M
*
11 1 105-12391-000 CASING, FRONT LEFT CORNER, CFx 5M
12 8 868-00056-000
CAPSCREW, 3/8-16 UNC X 1" LG. A307 GR. A STEEL
13 8 952-00298-000 WASHER, FLAT, PLAIN 1" O.D. x 7/16" I.D. x #14 GA.
*
14 1
105-12385-000 CASING, RIGHT SIDE PANEL, CFx 5M
KIT
ITEM
QTY PART NO DESCRIPTION
*
15 1
105-12384-000
CASING, LEFT SIDE PANEL, CFx 5M
* 16 2 105-12390-000 CASING, MIDDLE SIDE PANEL, CFx 5M
17 1
853-01529-000
BULK TAPE, SILICONE
18 4 868-00137-000
CAPSCREW, HEX HD. 1/4"-20 UNC-2A X 1" LG.
19 8 952-00294-000 WASHER, FLAT, PLAIN, 3/4" O.D. X 5/16"
*20
1
105-12389-000 CASING, FRONT LOWER PANEL, CFx 5M
*
21 1 105-12392-000 CASING, FRONT UPPER PANEL, CFx 5M
*
22 2 105-12387-000 CASING, FRONT SIDE PANEL, CFx 5M
* 23 3 105-12393-000 CASING, ACCESS COVER, CFx
24 42 841-00423-000
SCREW, SELF TAPPING, TY.B HEX HD, 1/4 X 1" LG.
*
25 1 008-04236-000 BRACKET, CONTROL PANEL TOP, CFx 5M
*
26 1 008-04235-000 BRACKET, CONTROL PANEL BOTTOM, CFx 5000
27
6
841-00723-000 SCREW, SELF TAPPING, HEX HD
28 20 865-00068-000 HANDLE, FLUSH MOUNT, SNAP IN
#
29 1 094-01048-000
INSULATION W/ FOIL FACE, REAR CASING, TOP
# 30 1 094-01049-000
INSULATION W/FOIL FACE, REAR RIGHT SIDE
#
31
1
094-01050-000 INSULATION W/FOIL FACE, REAR LEFT SIDE
#
32
1
872-01310-000
INSULATION BLANKET
#
33 1 094-01051-000 INSULATION, FRONT SMOKEBOX COVER PLATE
*
34 1 105-12508-000 CASING, REAR PANEL, CFx 5M BOTTOM
#
35
1
094-01073-000 INSULATION, REAR PANEL, BOTTOM
36 6 841-01933-000
DOWEL PIN, 5/16"DIA. x 3/4"L
37 6 860-00175-000
SCREW, MACHINE, RD. HD. SLOTTED
38 6 952-00151-000 LOCK WASHER, SHAKE PROOF
6 24
6
10
11
11
12
13
12
13
12 13
1213
15 16
20
21
22
# INDICATES ITEMS IN INSULATION KIT 880-03803-000.
* INDICATES ITEMS IN CASING SET 880-03804-000.
28
23
23
8
9
29
34
35
36
37
38
6
10
1416
22
26
