Cleaver-Brooks ClearFire CFLC-5000 - Example Systems

Appendix E Falcon Lead Lag
E-21
10-EXAMPLE SYSTEMS
Figure 4 through Figure 8 show piping and network wiring for some typical lead lag network
configurations. Systems shown are examples only. Actual installations may vary.

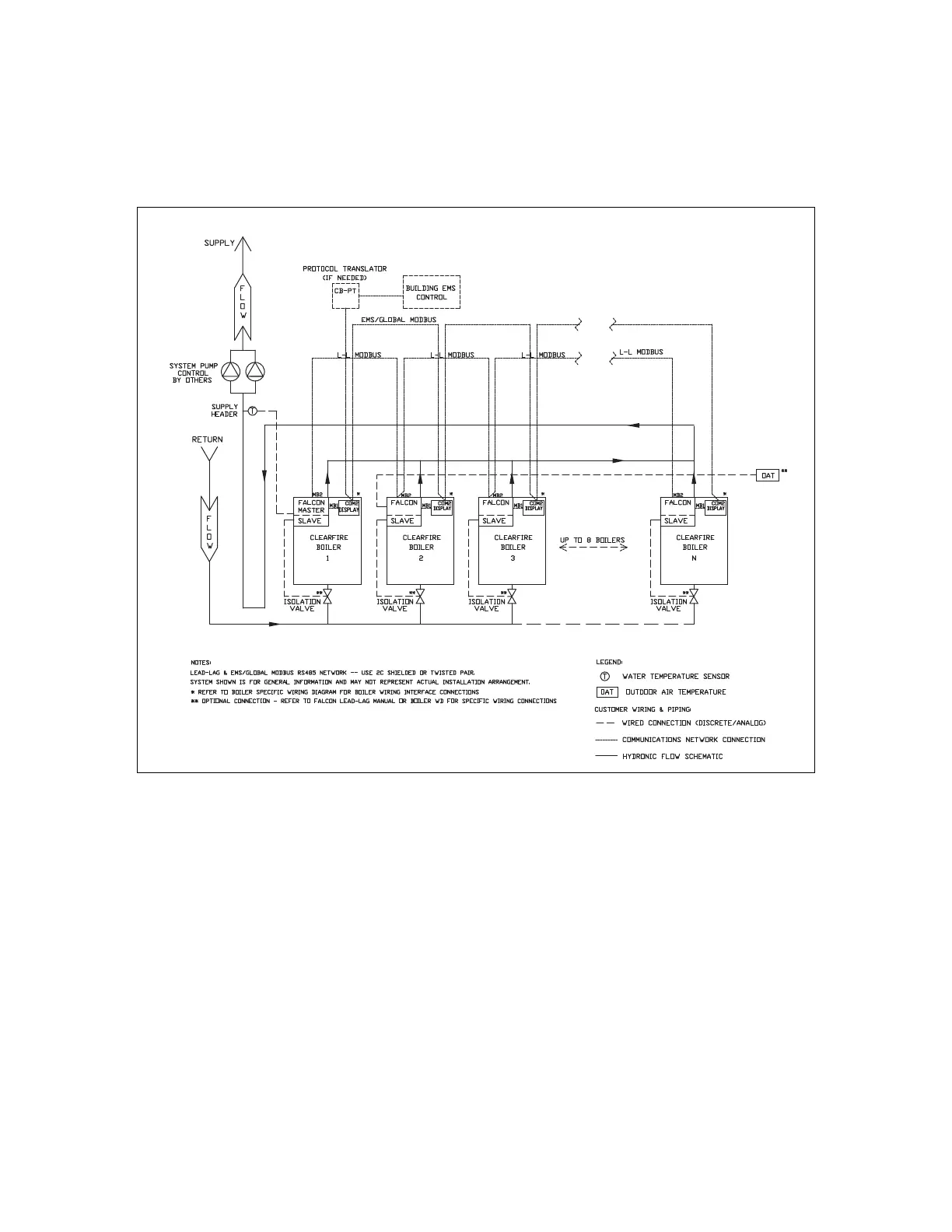

Figure 9 - Falcon Lead Lag with outdoor reset and EMS for remote comms/monitoring
