Cleaver-Brooks ClearFire CFLC-5000 - Casing & Insulation 10000-12000

Section 6 — Parts
Part No. 750-363 6-27

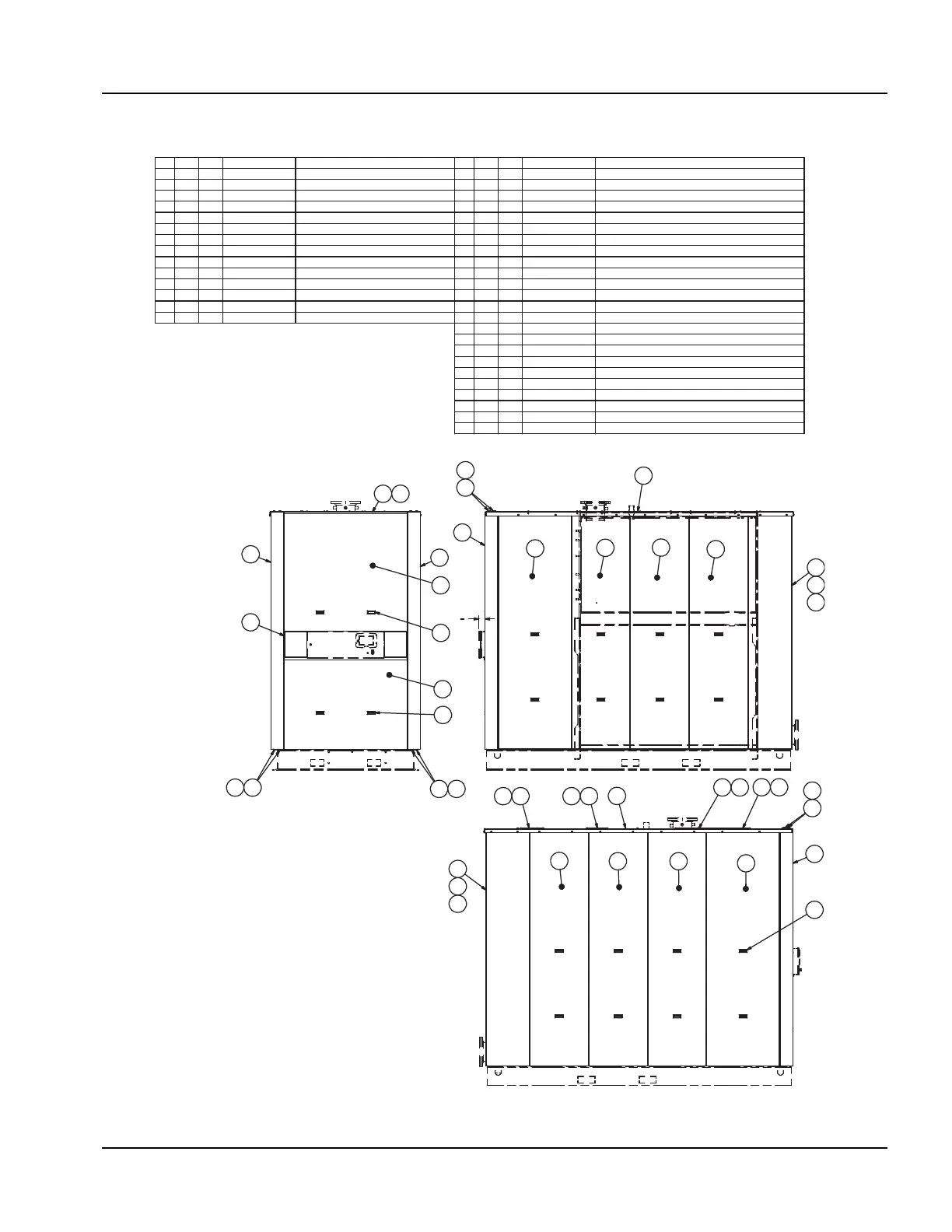

Figure 6-26. Casing & Insulation 10000-12000
Kit ITEM QTY PART NO DESCRIPTION
#1 1
872-01303-000 INSULATION BLANKET, 110 1/2" LG.
#
2
1
872-01303-000 INSULATION BLANKET, 186" LG.
#
3
1
094-01043-000 FRONT TUBE SHEET INSULATION
# 4 1 094-01041-000
INSULATION, KAOWOOL PAPER, 163" LG.
#5 1
094-01041-000 INSULATION, KAOWOOL PAPER, 66" LG.
*6
1
105-12396-000 CASING PANEL, ROOF, CFLC 10M-12M
*
7
1 105-12397-000 CASING, REAR RIGHT PANEL, CFx 12M
*
8 1 105-12398-000 CASING, REAR LEFT PANEL, CFx 12M
*9
1
105-12399-000 CASING, REAR PANEL, CFLC 10M-12M
*
10
1
105-12450-000 CASING, REAR PANEL, CFLC 10M-12M
*
11 1 105-12402-000 CASING, FRONT RIGHT CORNER
*
12 1 105-12407-000 CASING, FRONT LEFT CORNER
* 13 2 105-12401-000 CASING, RIGHT SIDE PANEL, CFx 12M
*
14
2 105-12400-000 CASING, LEFT SIDE PANEL, CFx 12M
Kit
ITEM QTY PART NO DESCRIPTION
*
15
2 105-12406-000 CASING, FRONT SIDE PANEL, CFx 12M
* 16 2 105-12403-000 CASING, FRONT ACCESS PANEL
*
17 1
105-12404-000 CASING, CONTROL PANEL SUPPORT
18 1 853-01533-000
BULK TAPE, SILICONE, 3/16" X 1" W/HOLES X 154" LG
*19
1
105-12405-000 CASING, FRONT LOWER PANEL, CFLC 10M-12M
*20
1
105-12408-000 CASING, FRONT UPPER PANEL, CFLC 10M-12M
*
21
4
105-12393-000 CASING, ACCESS COVER, CFx
22 12 952-00294-000
WASHER, FLAT, PLAIN, 3/4" O.D. X 5/16" I.D. X #16 GA.
23 8 868-00137-000 CAPSCREW, HEX HD. 1/4"-20 UNC-2A X 1" LG.
24 8 868-00056-000
CAPSCREW, 3/8-16 UNC X 1" LG. A307 GR. A STEEL
25 8 952-00298-000
WASHER, FLAT, PLAIN 1" O.D. x 7/16" I.D. x #14 GA.
26 4 869-00021-000
NUT, HEX HD. 1/4"-20 UNC-2B
27 52 841-00423-000 SCREW, SELF TAPPING, TY.B HEX HD, 1/4 X 1" LG.
28 24 865-00068-000 HANDLE, FLUSH MOUNT, SNAP IN
#
29 1 094-01056-000 INSULATION, FRONT SMOKEBOX COVER PLATE
# 30 1 872-01310-000
INSULATION BLANKET, 180" LG.
#
31
1
094-01052-000 INSULATION W/ FOIL FACE, REAR CASING
#
32
1
094-01054-000
INSULATION W/FOIL FACE, REAR RIGHT SIDE CASING
#
33 1 094-01055-000
INSULATION W/FOIL FACE, REAR LEFT SIDE CASING
# 34 1 094-01053-000
INSULATION W/ FOIL FACE, REAR CASING
#
35 2 872-01315-000 INSULATION STRIP, 1" x 2" x 80" LG.
#
36
1
872-01303-000
INSULATION BLANKET, 110 1/2" LG.
#
37 1 872-01303-000
INSULATION BLANKET, 186" LG.
*
38 1 105-07160-000 CASING, COVER, FILTER ASSY, REVERSIBLE
6
6
27
6
7
9
10
8
9
10
11
11
12
12
24
25
24
25
24 25
2425
13
14
15
28
28
# INDICATES ITEMS IN INSULATION KIT 880-03808-000.
*
INDICATES ITEMS IN CASING SET 880-03809-000.
15
13
16
2
3
4
"
2127
21 27
14
16
28
17
20
19
2127
38 27
