Section 5 — Service and Maintenance
Part No. 750-363 5-5
Pilot and UV Scanner
Maintenance of the UV scanner consists of periodic inspection and cleaning. To inspect, unscrew the UV flame
detector from the bracket. Check to ensure that the flame viewing lens is clear and free of dust or debris. Wipe
with a clean rag if necessary.
When replacing the scanner, verify an unobstructed line of sight through the scanner bracket to the burner
canister.
The CFLC uses an interrupted gas pilot in lieu of direct spark ignition. Ensure pilot is installed with the holes
facing outward (towards the burner can).

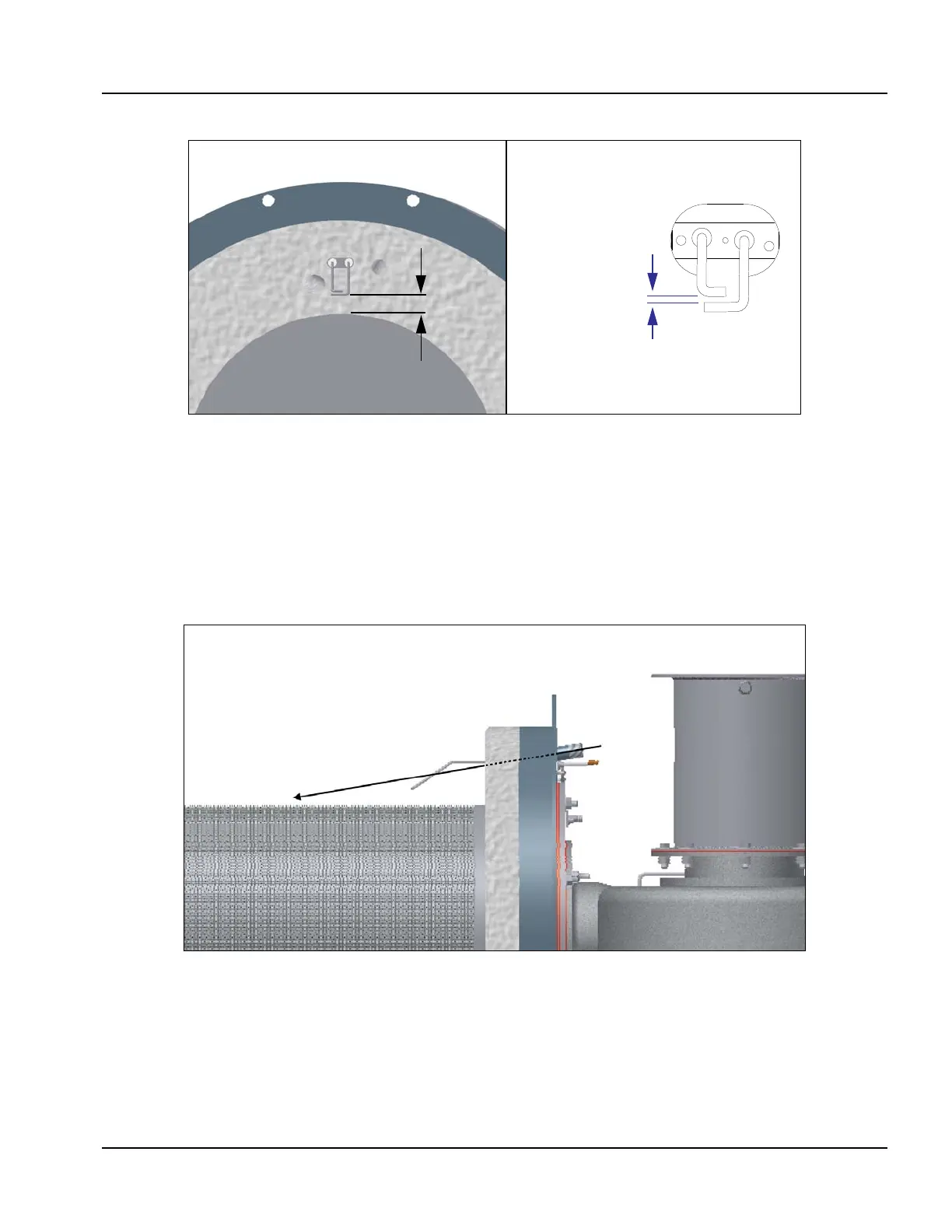

Figure 5-1 Electrode spacing CFLC
Figure 5-2
1/8”
1”E1/16”
