Cleaver-Brooks ClearFire CFLC-5000 - Typical Steam System

Appendix E Falcon Lead Lag
E-25
11-EXAMPLE HYDRONIC PIPING DIAGRAMS
Figure 9 through Figure 12 below show some typical hydronic systems. Examples of Pump Control
Block (PCB) parameters for these and other systems can be found in Figure 13 through Figure 18.

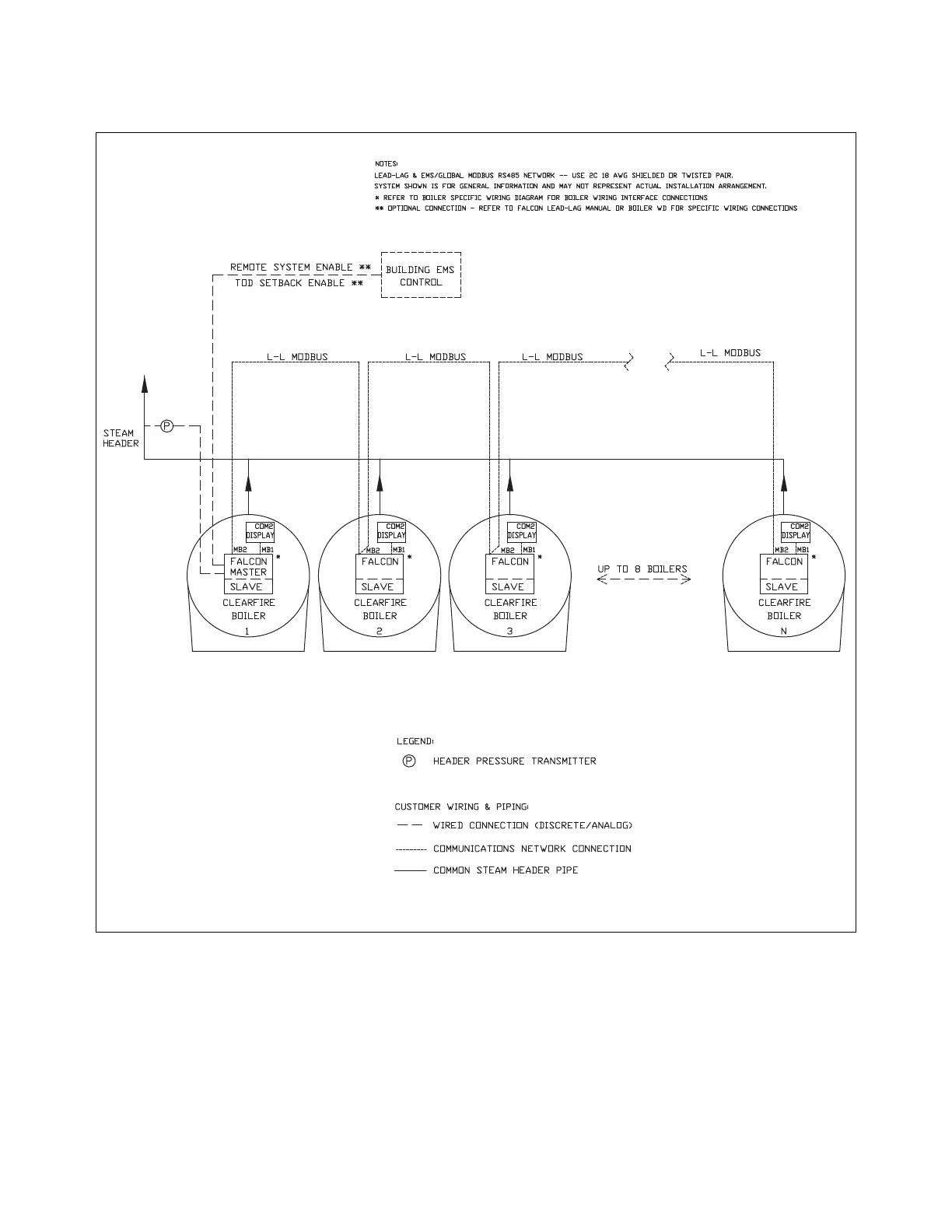

Figure 13 - Typical Steam System
